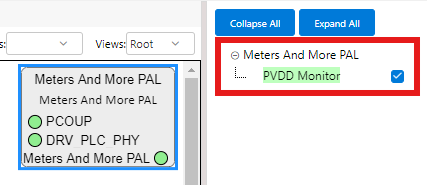

The Meters And More PAL Module is configured through MCC. Below is the figure of the MCC
configuration window and brief description.Figure 1-12. PAL Configuration
Options
PVDD Monitor
Enable/disable PVDD monitor. This is needed to monitor the PVDD voltage of PLC
Transceiver in order to disable PLC transmission in case the voltage is not in the
expected range, to avoid transceiver damage. If the PVDD voltage is in the expected
range the PLC transmission is enabled.
If enabled, PVDD Monitor service is used, and therefore it has to be properly
configured (refer to the Smart Energy documentation).
