1.2.5 Metering Demo MCC Project Graph

The root layer project shows all the components used by the different applications:

  • Metrology Driver is used by the Metrology application
  • RTC peripheral library is used by the Energy application
  • SLCDC Driver is used by the Display application
  • Console and Command modules are used by the Console application
  • Memory Driver is used by the Datalog application to store and retrieve non volatile data

FreeRTOS component is required for RTOS application. For bare-metal (non-RTOS) FreeRTOS component is not selected.

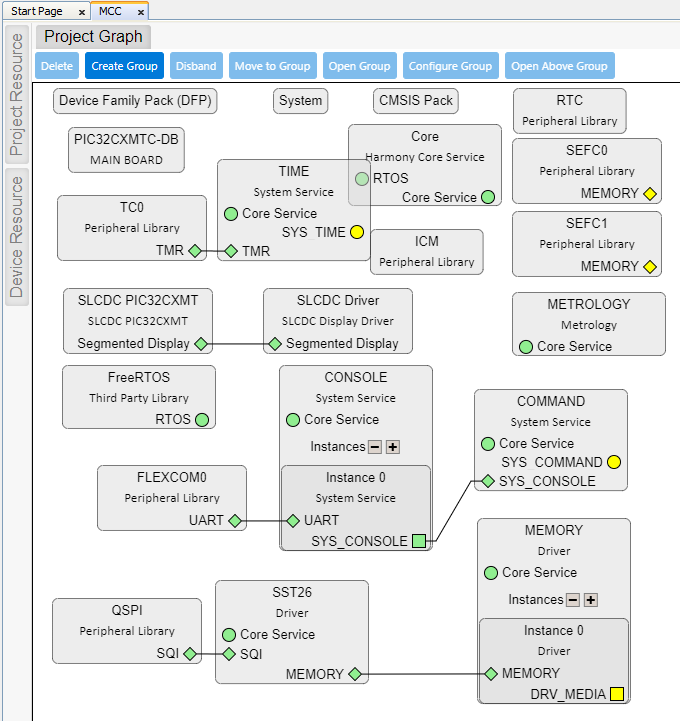

Figure 1-34 1-42. MCC Project Configuration
