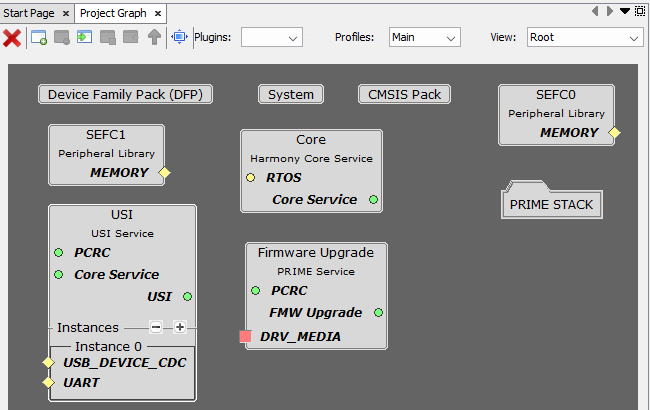

The following figure shows the MCC project graph of PRIME Service Bin application for
PIC32CXMTG-EK.
Figure 1-102. MCC Project Graph of PRIME Service
Bin for PIC32CXMTG-EK
Since it is a project without a user
application, only modules whose header files are required for the PRIME Library and
the PRIME API have been added
The PRIME STACK folder contains all
the components whose header files are required for the PRIME Library and the PRIME
API

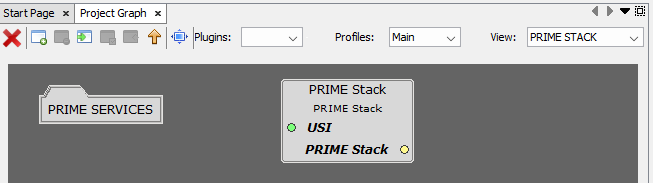

Figure 1-103. MCC Project Graph of PRIME STACK
Folder
The PRIME SERVICES folder inside
contains all the services whose header files are required for the PRIME Library
and the PRIME API except the Firmware Upgrade service, which is in the root
view

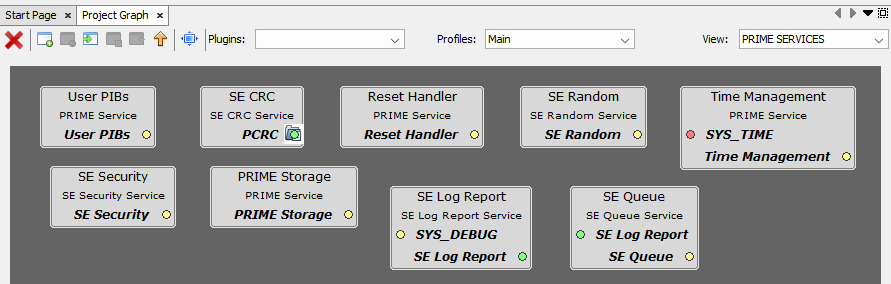

Figure 1-104. MCC Project Graph of PRIME
SERVICES Folder
The following figure shows the MCC configuration of the PRIME Stack.
Figure 1-105. PRIME Stack MCC
Configuration
PRIME mode: It must be set to SN
Type of PRIME project: It must be set
to bin project
PRIME version: Configured to 1.4 for
PRIME Library v1.4 or 1.3.6 for PRIME Library v1.3.6
For additional information about configuration of the PRIME Stack and the PRIME Services,
refer to the corresponding documentation.
Additional Components
This application requires the Harmony Core Service so that header files of common

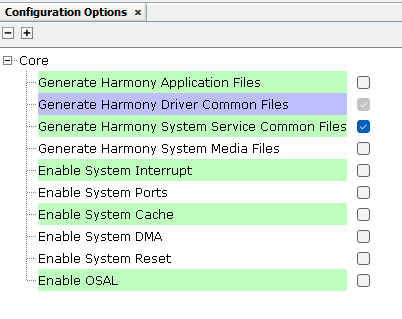

drivers and services are generated.Figure 1-106. Core Service Configuration
