1.1 Test Setup

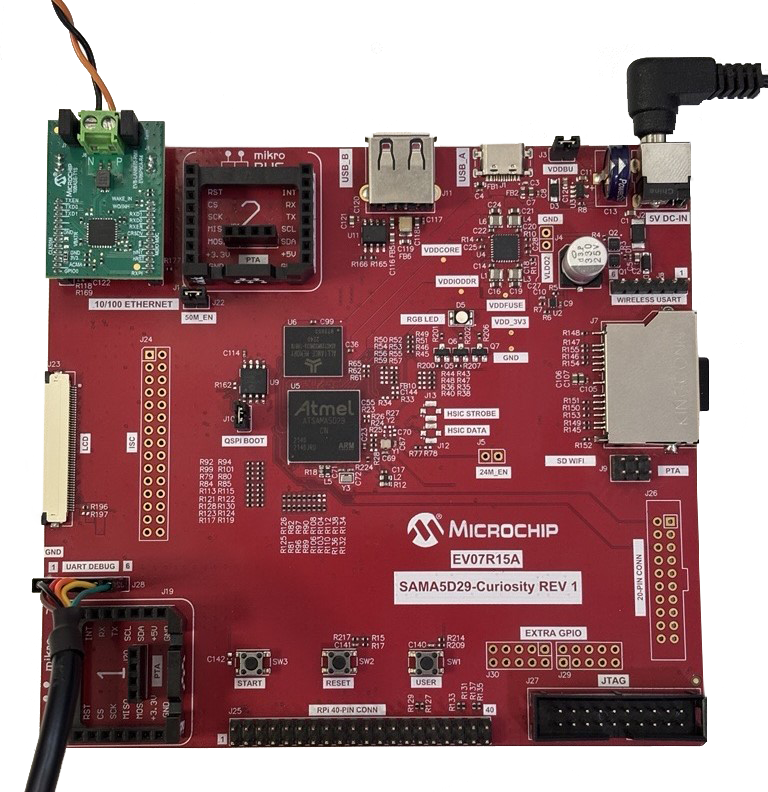

Connect the EVB-LAN8670-RMII with the EV07R15A SAMA5D29 Curiosity Development Board.
Connect the FTDI UART debug cable between the EV07R15A SAMA5D29 Curiosity Development Board and your system.
Power up the board.
