BLE_DM Pairing Procedure

Example demonstrating the main flow of BLE_DM security.

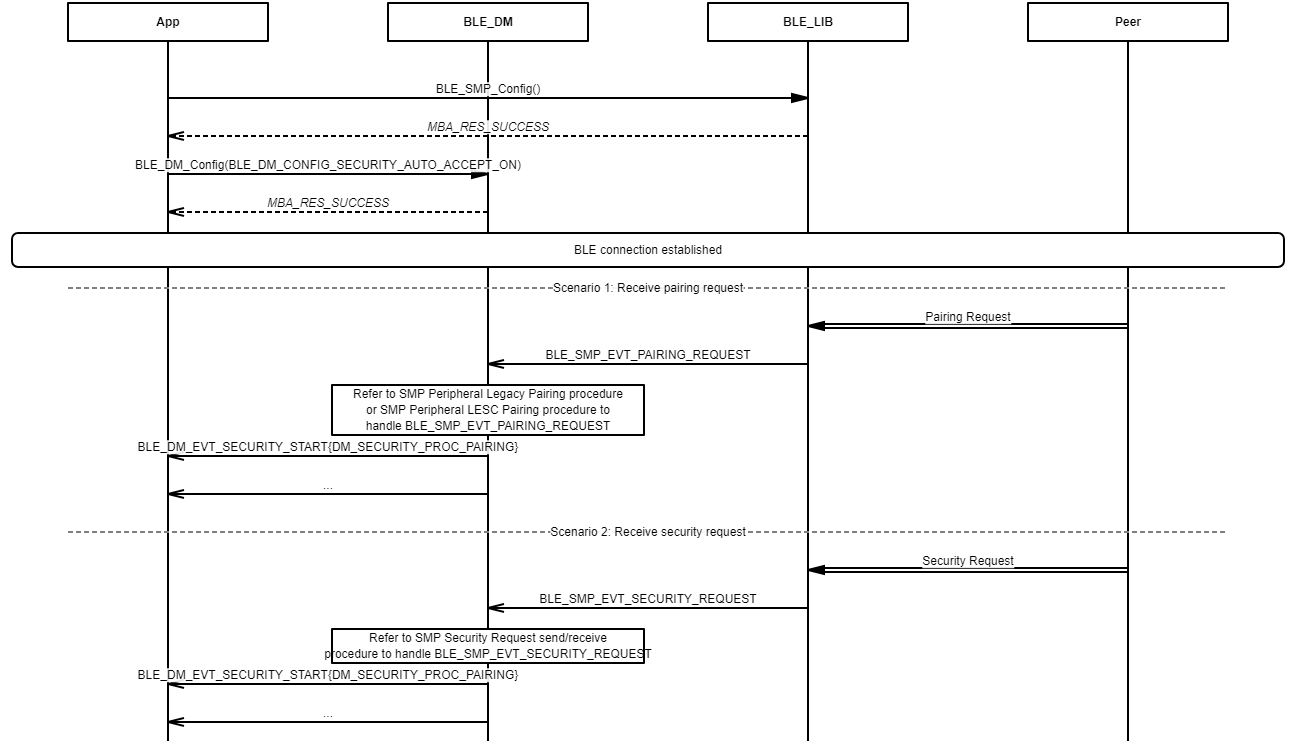

Example demonstrating BLE_DM Security: When disabled, BLE_DM automatically accepts and responds to pairing and security requests.

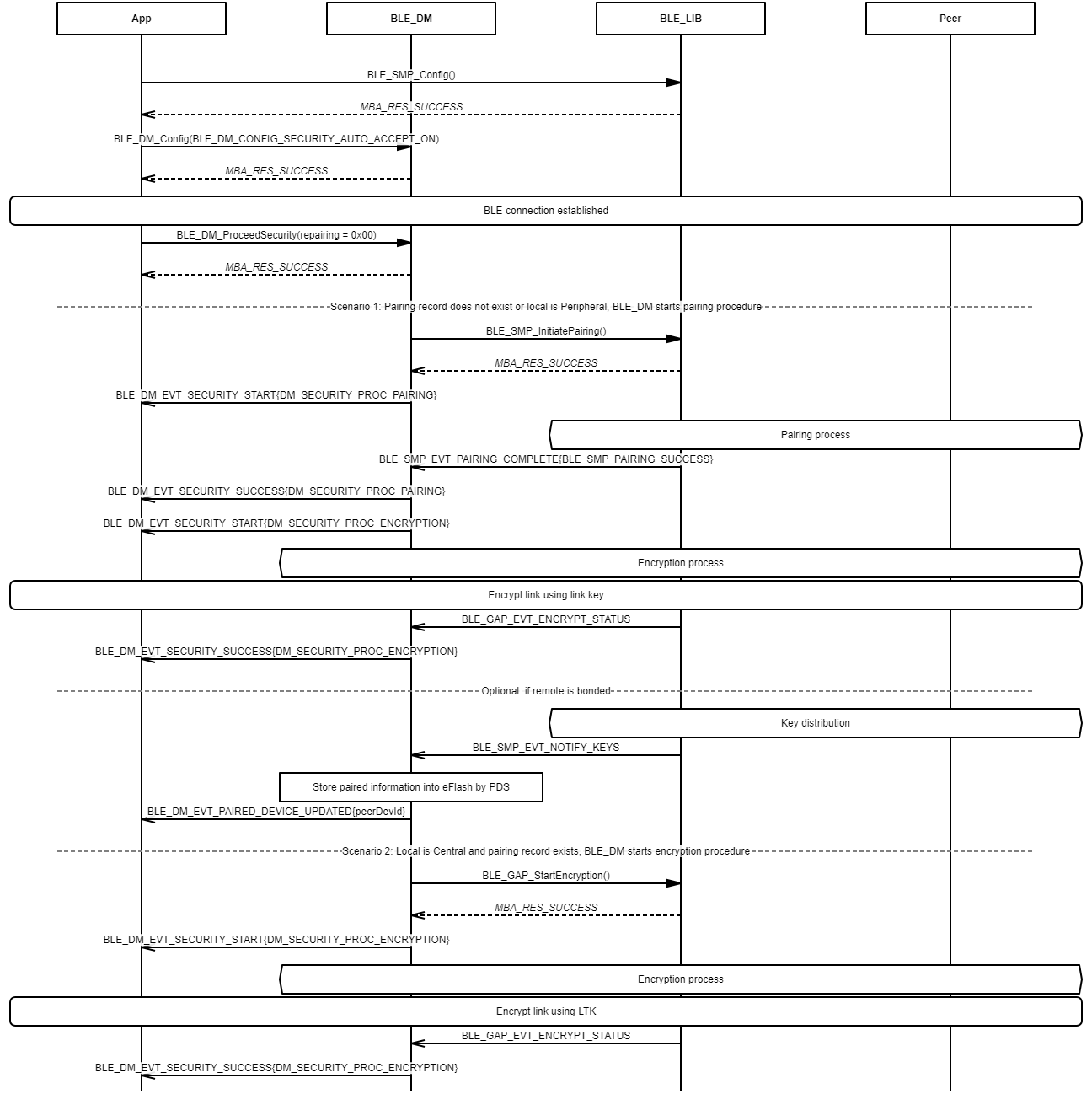

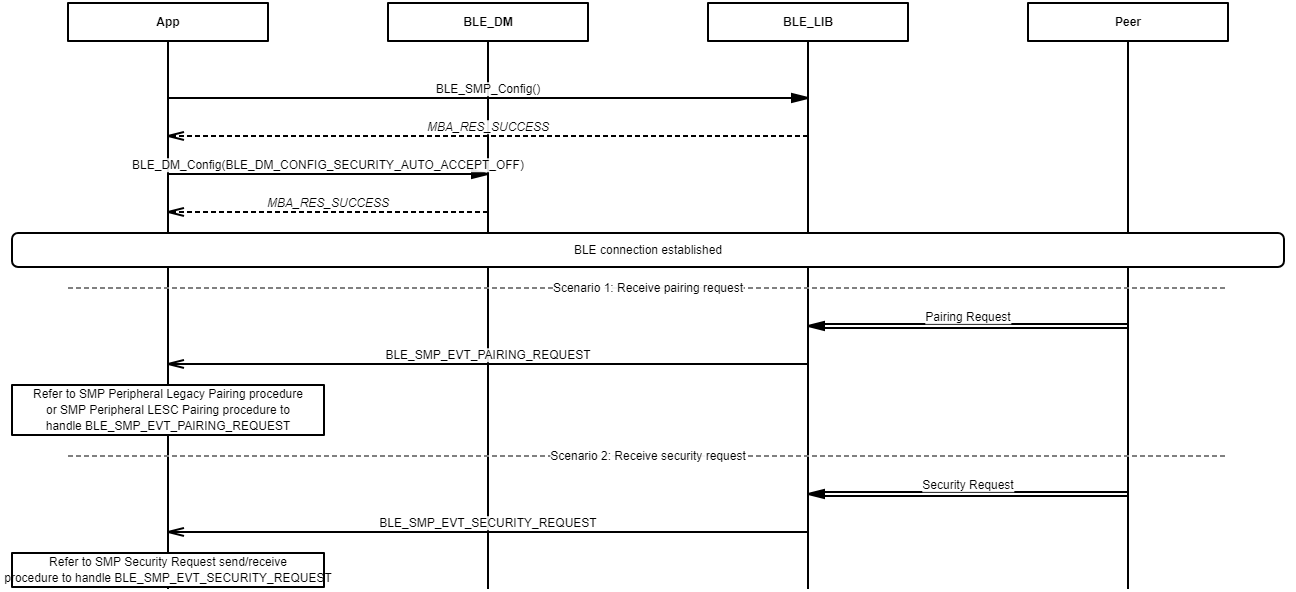

Example demonstrating BLE_DM security: When enabled, BLE_DM automatically accepts and responds to pairing and security requests.





Example demonstrating the BLE_DM pairing procedure using "Just Works".





Example demonstrating BLE_DM pairing procedure using Passkey Entry (Local display of passkey).

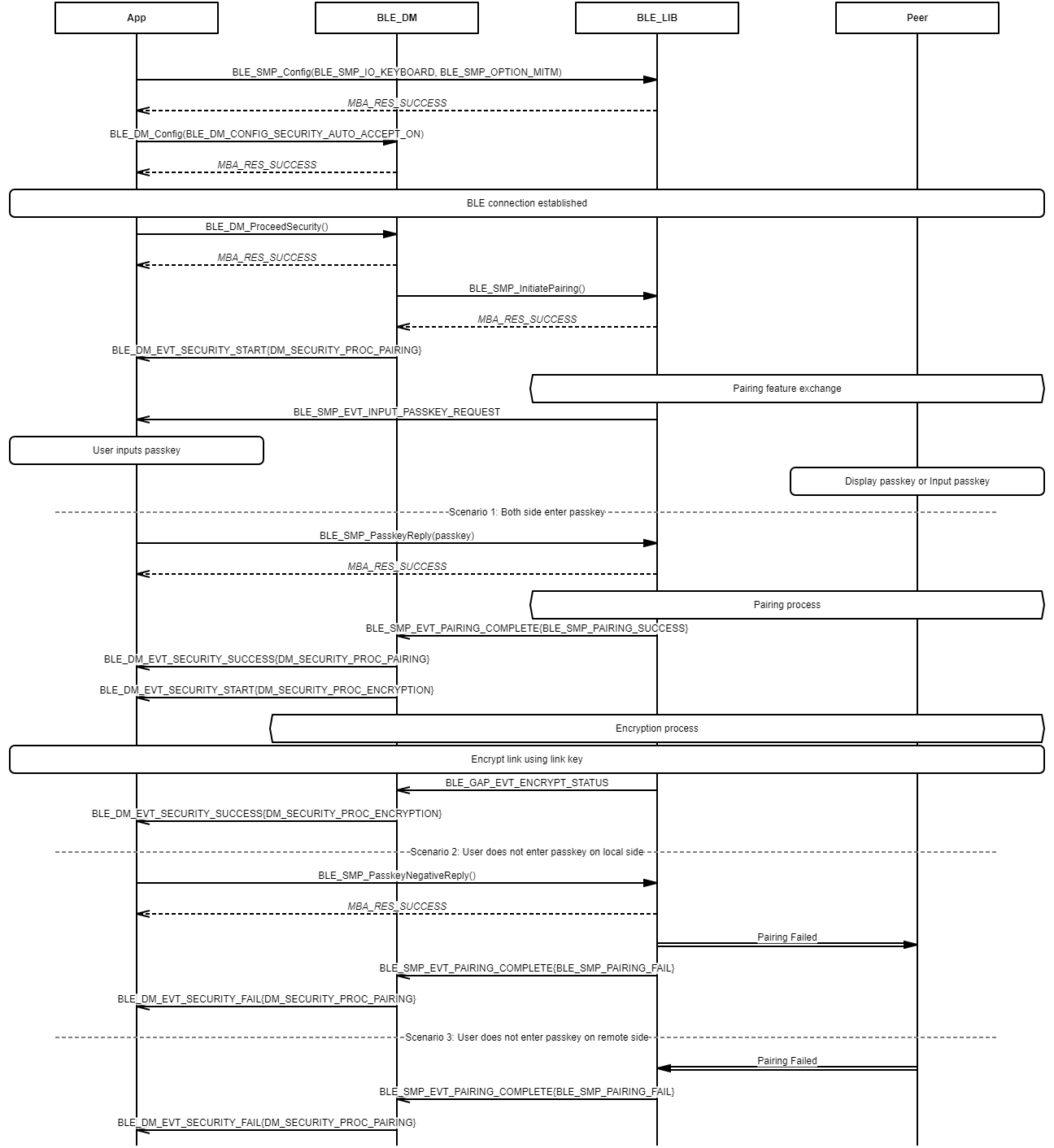

Example demonstrating the BLE_DM pairing procedure using Passkey Entry (Passkey input by local device).

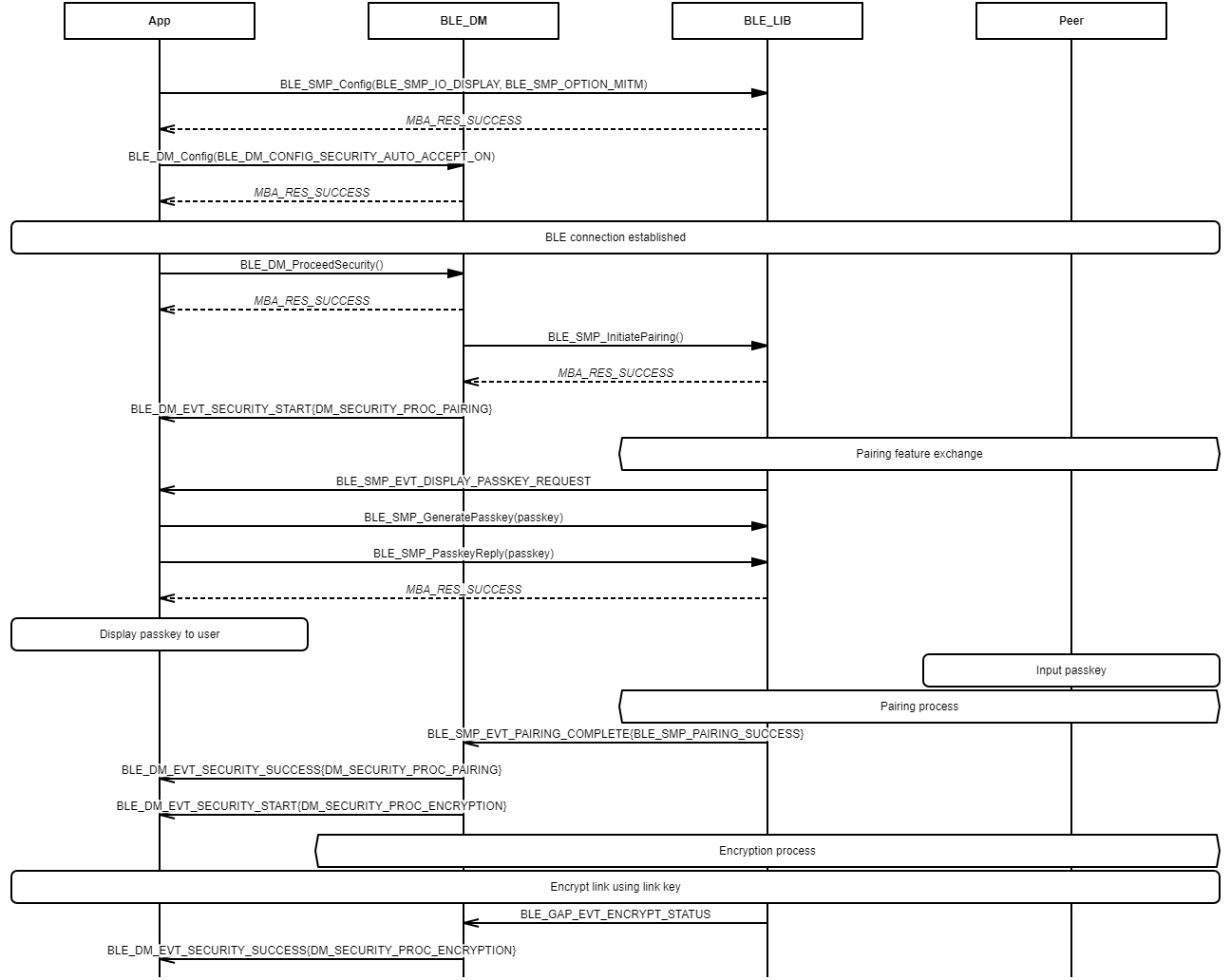

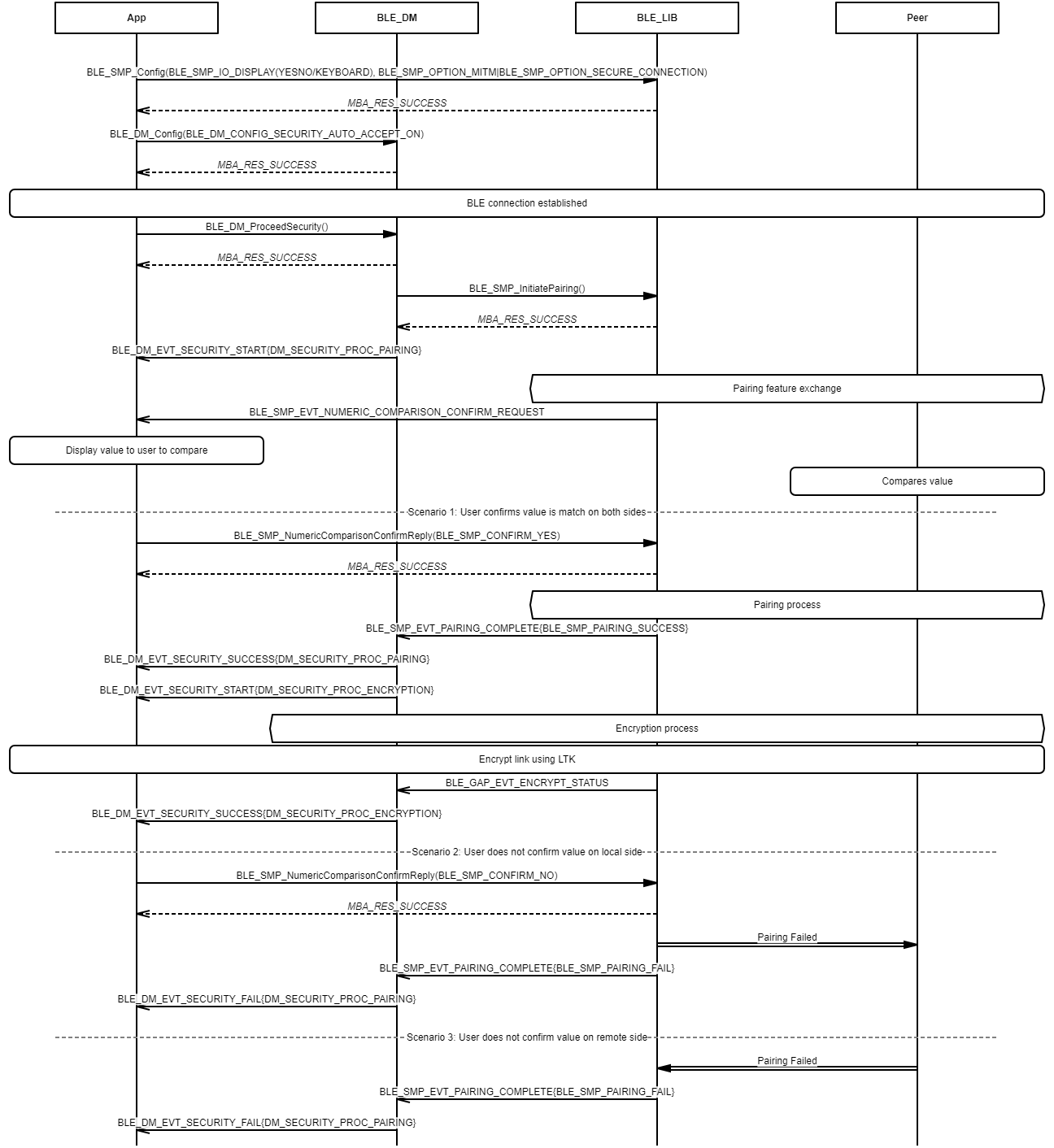

Example demonstrating the BLE_DM pairing procedure using Numeric Comparison.

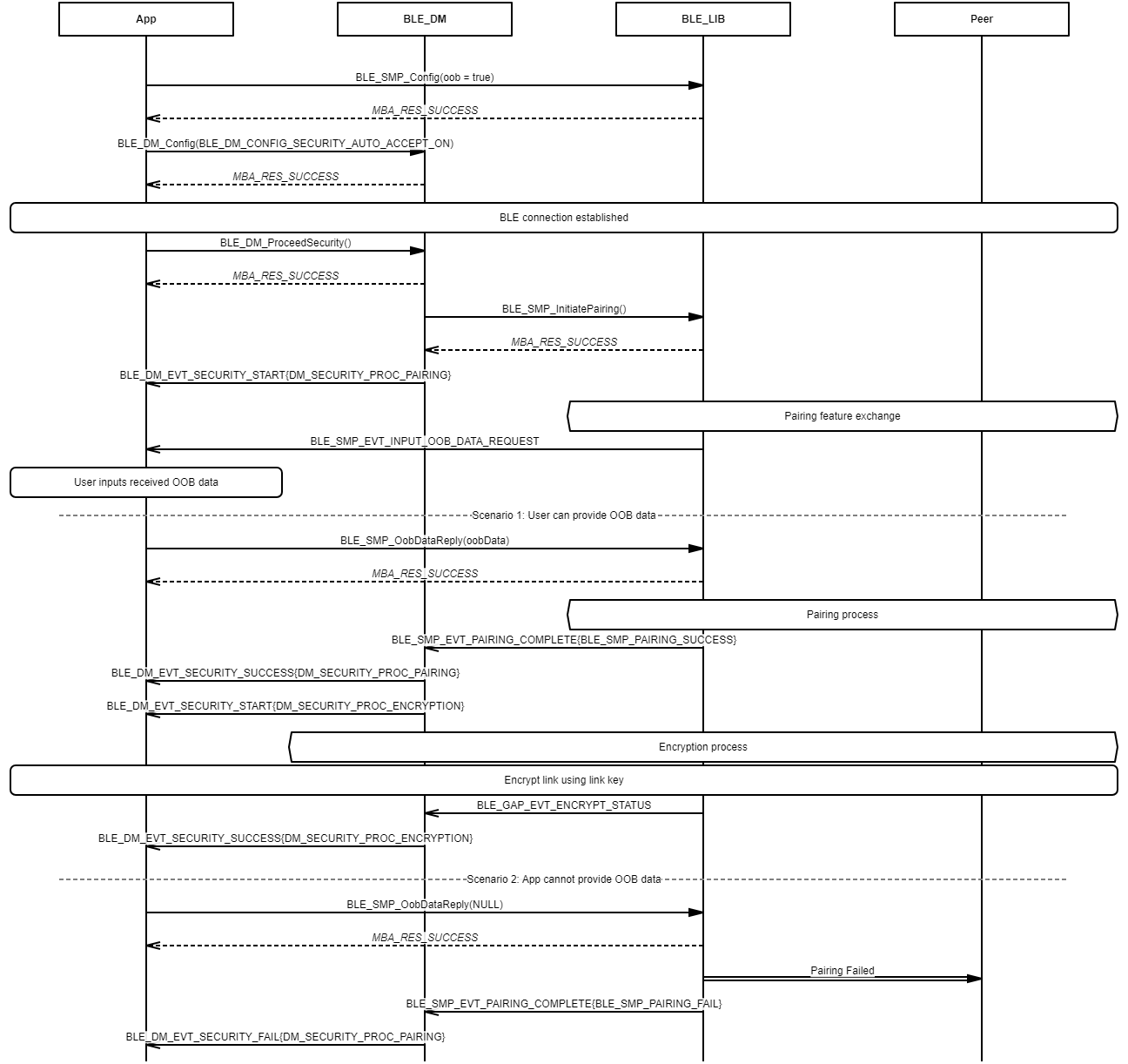

Example demonstrating the BLE_DM pairing procedure using Out-of-Band (OOB) legacy pairing.





Example demonstrating BLE_DM pairing procedure using Out-of-Band (OOB) with LESC (Local sends OOB data to peer).

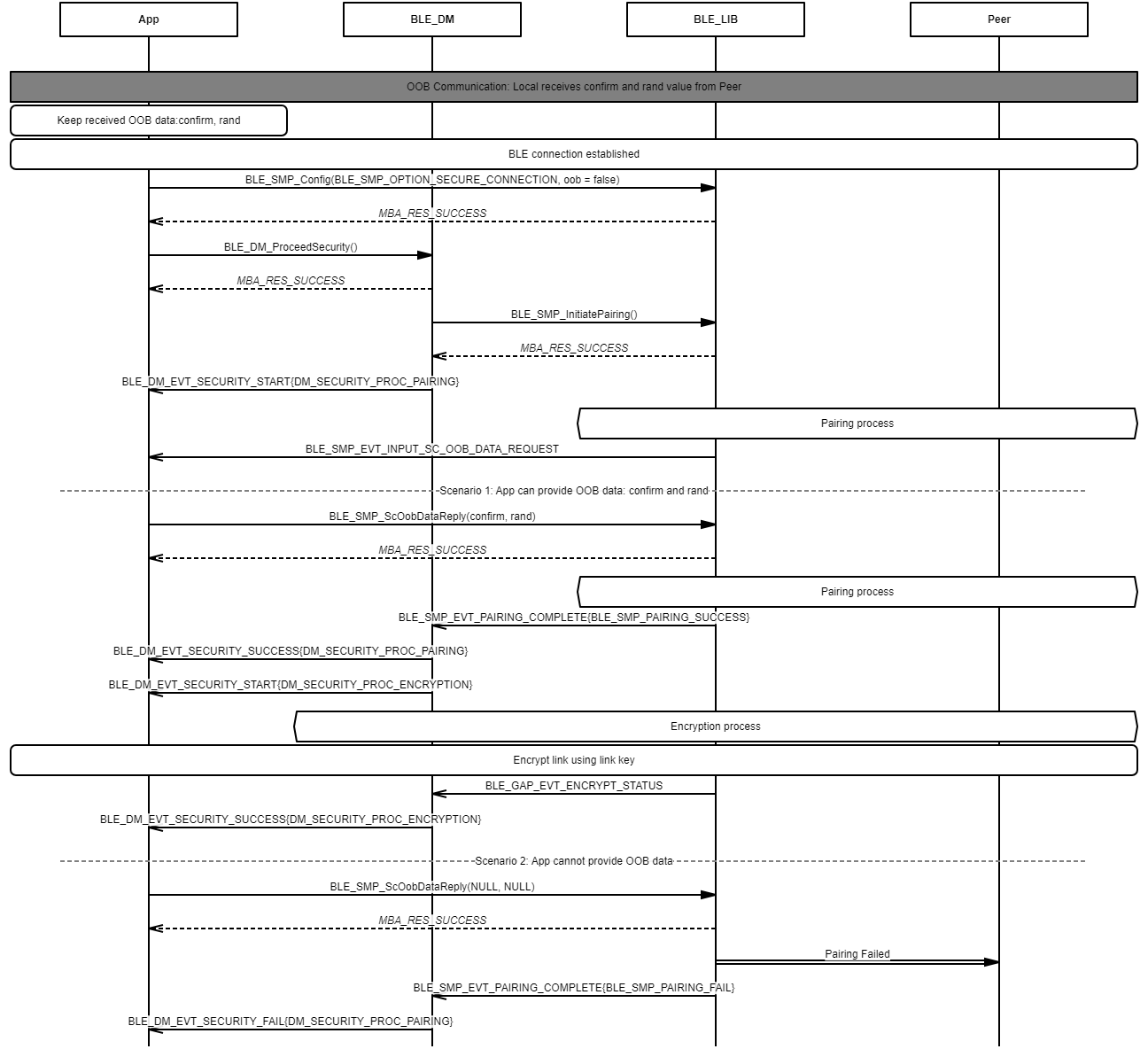

Example demonstrating BLE_DM pairing procedure using Out-of-Band (OOB) with LESC (Peer sends OOB data to local).

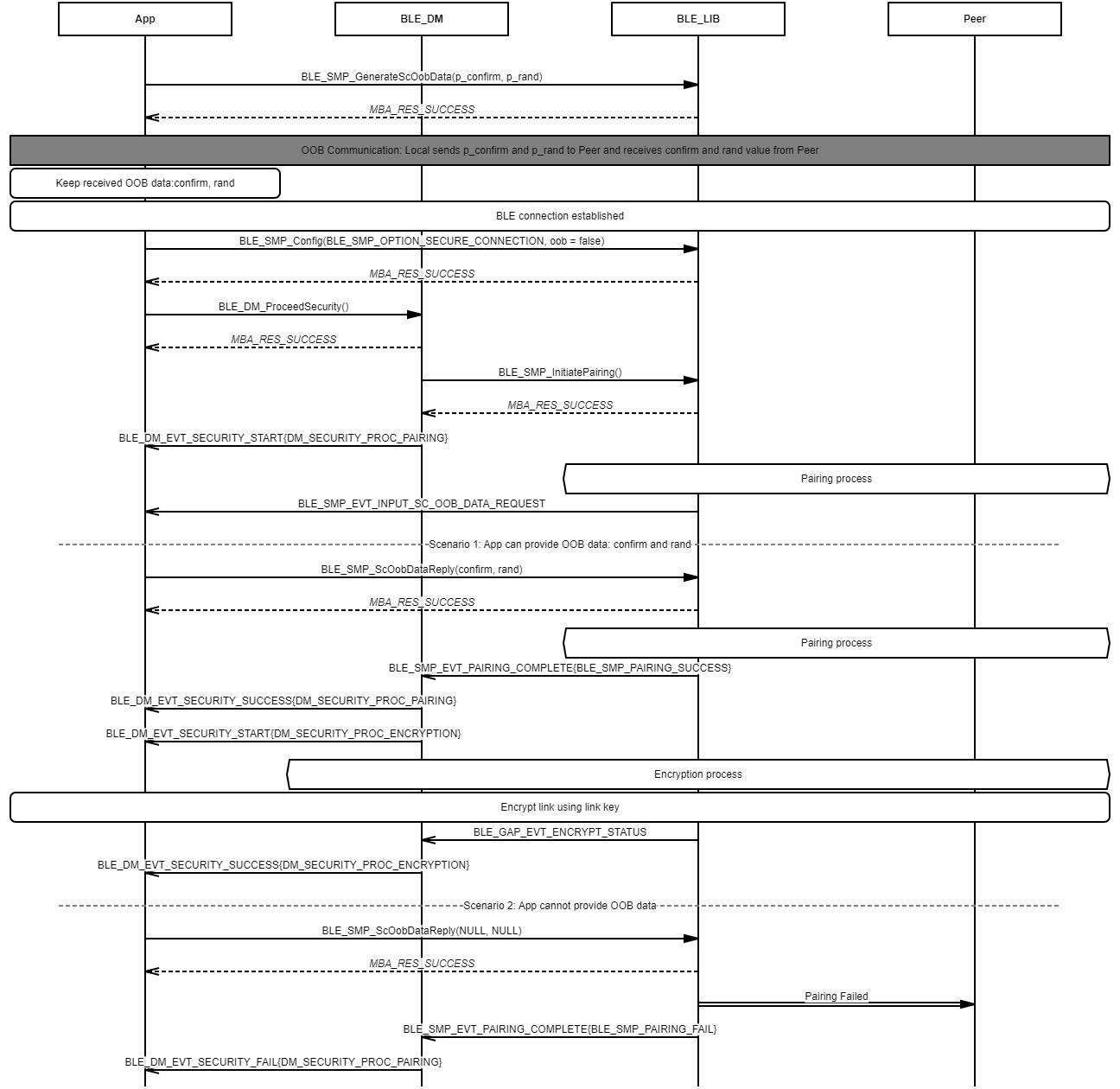

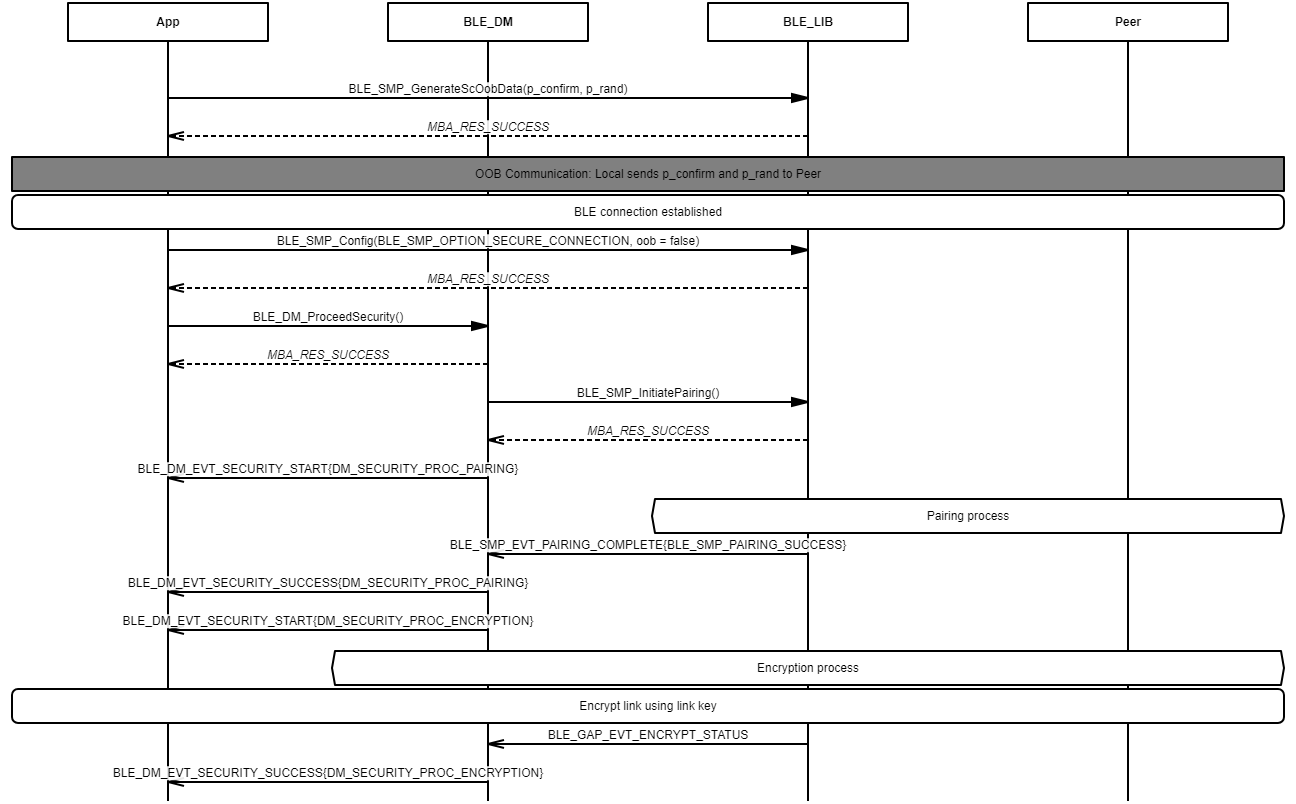

Example demonstrating BLE_DM pairing procedure using Out-of-Band (OOB) with LESC (Local and peer send OOB data to each other).
