L2CAP CoC Connection Procedure

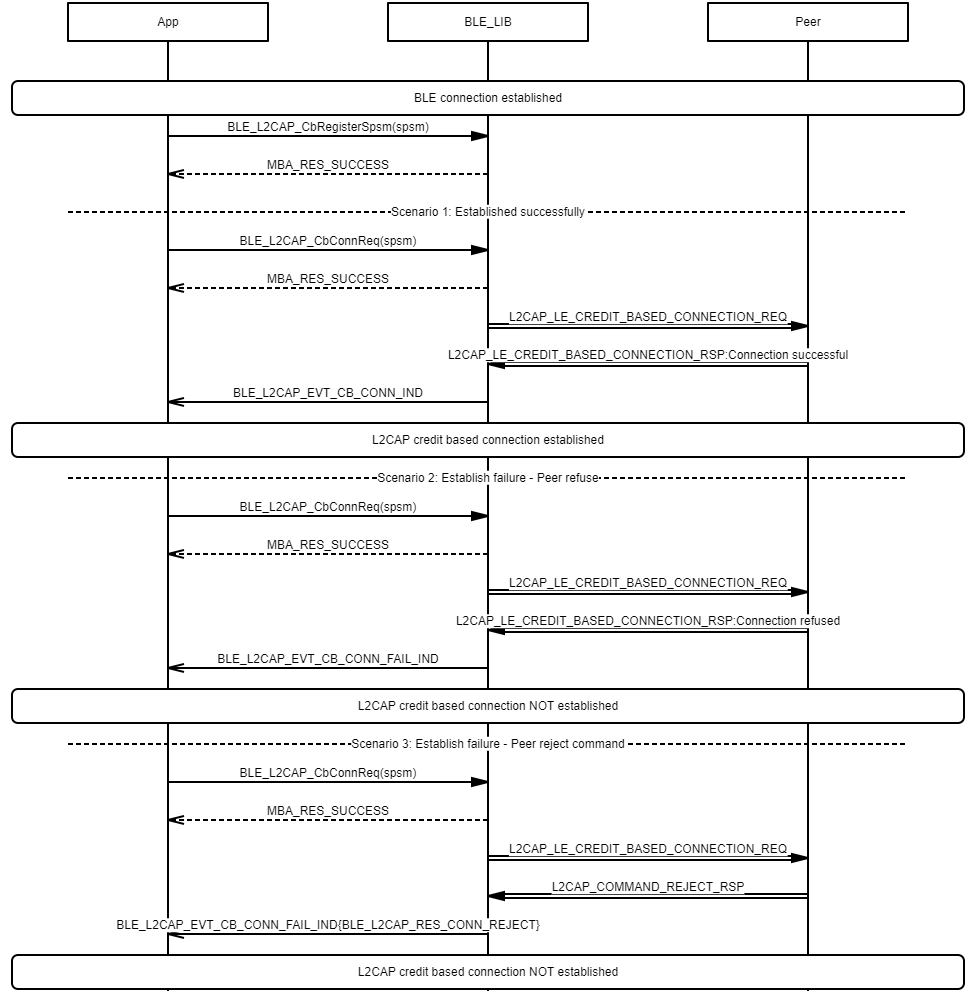

Example demonstrating locally initiated L2CAP CoC connection procedure

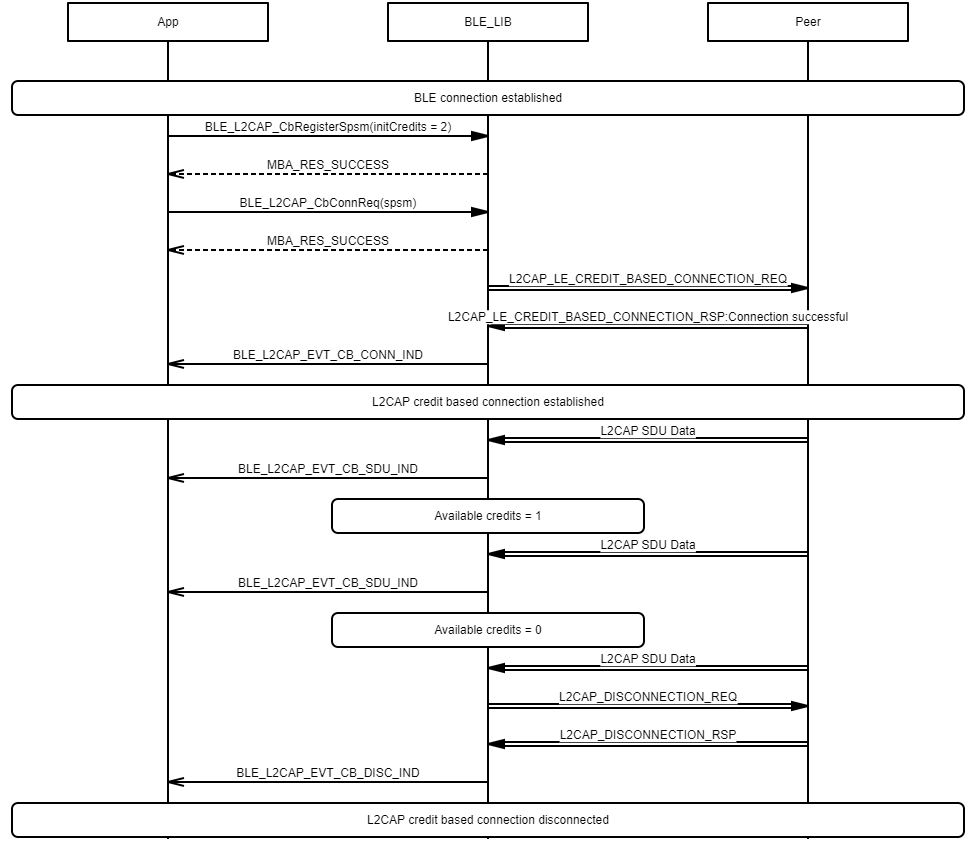

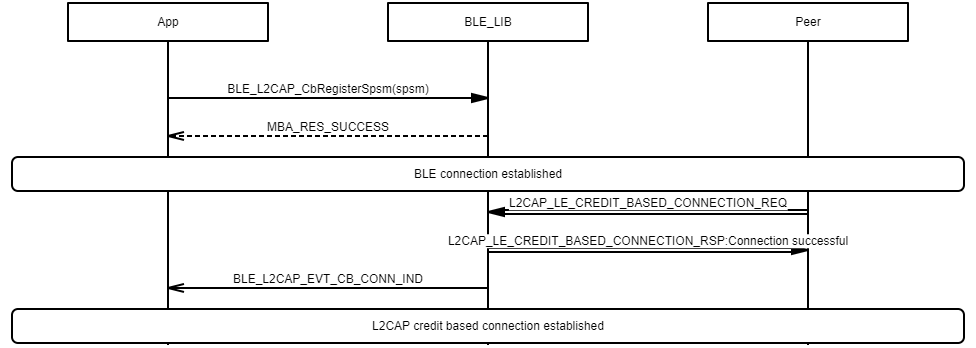

Example demonstrating remotely initiated L2CAP CoC connection procedure

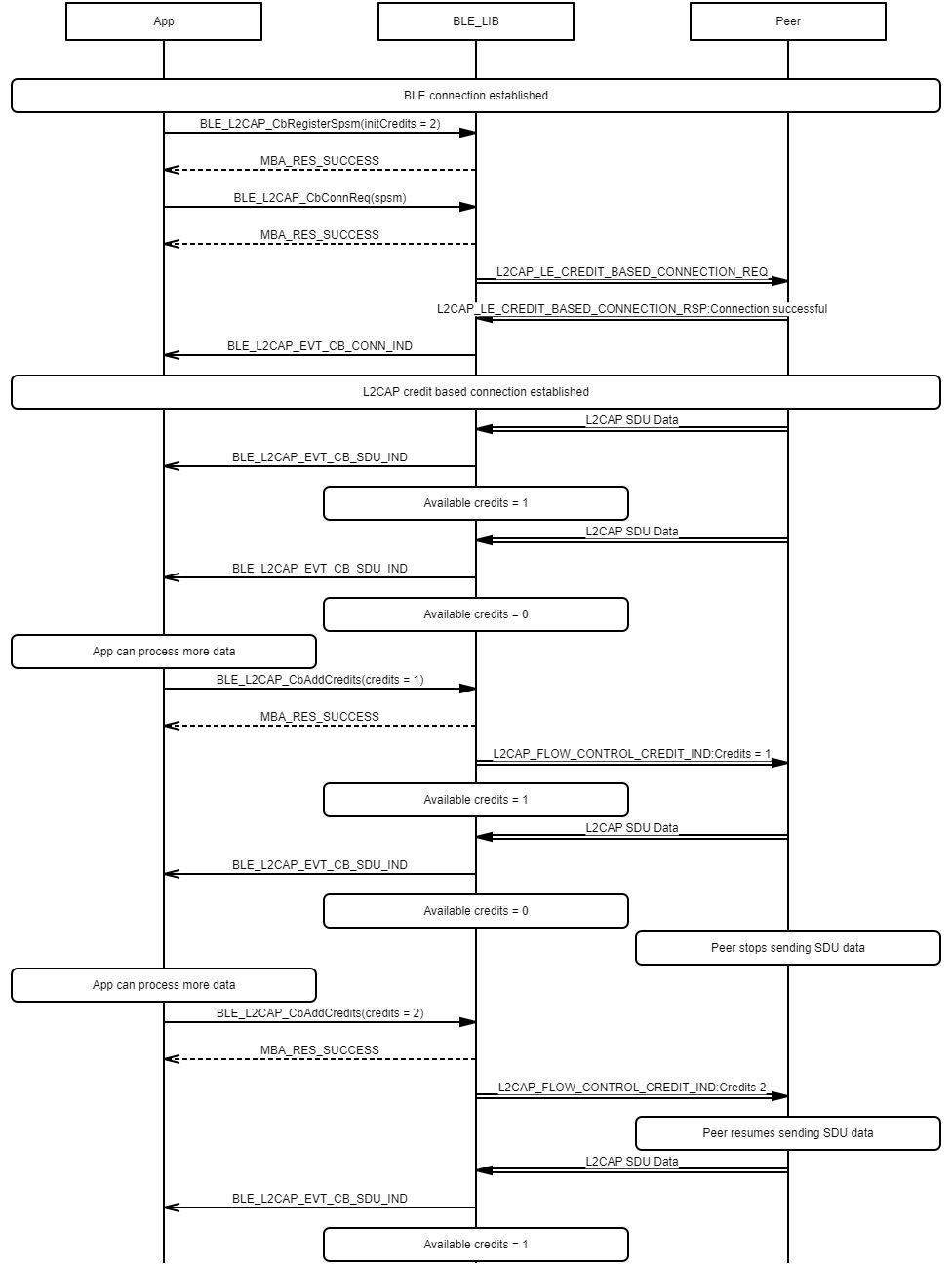

Example demonstrating L2CAP CoC local credit calculation and update: Peer halting SDU Data transmission until App adds credits

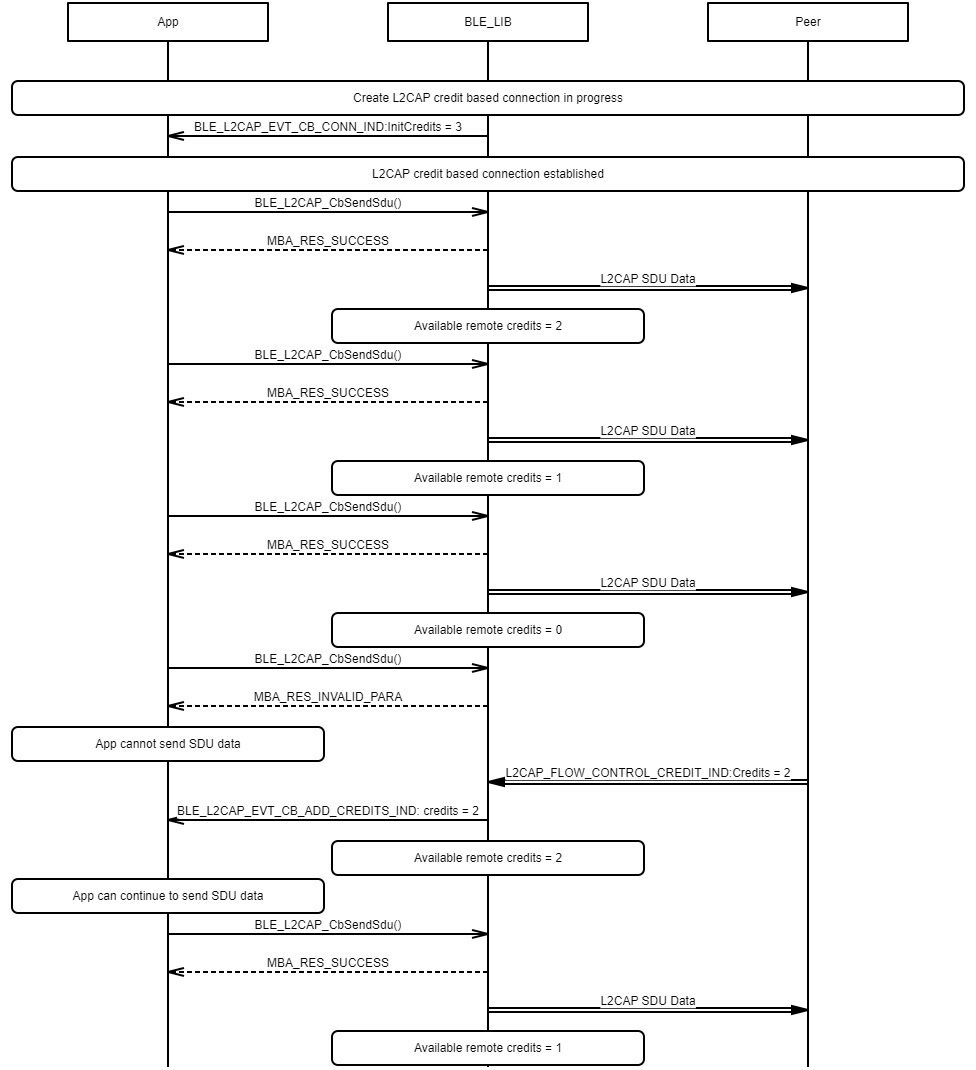

Example demonstrating L2CAP CoC local credit calculation and update: Peer continues sending SDU data until App adds credits





Example demonstrating L2CAP CoC transmission flow based on remote credit
