V2.0 GAP msc phy update procedure

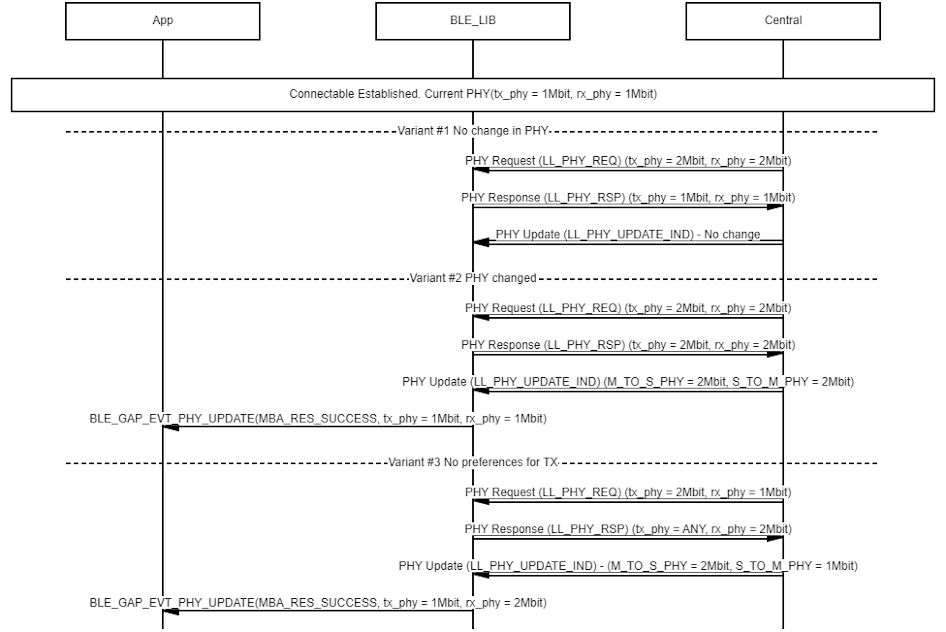

Example demonstrating the central device initiating a PHY update procedure, triggered by the peer device

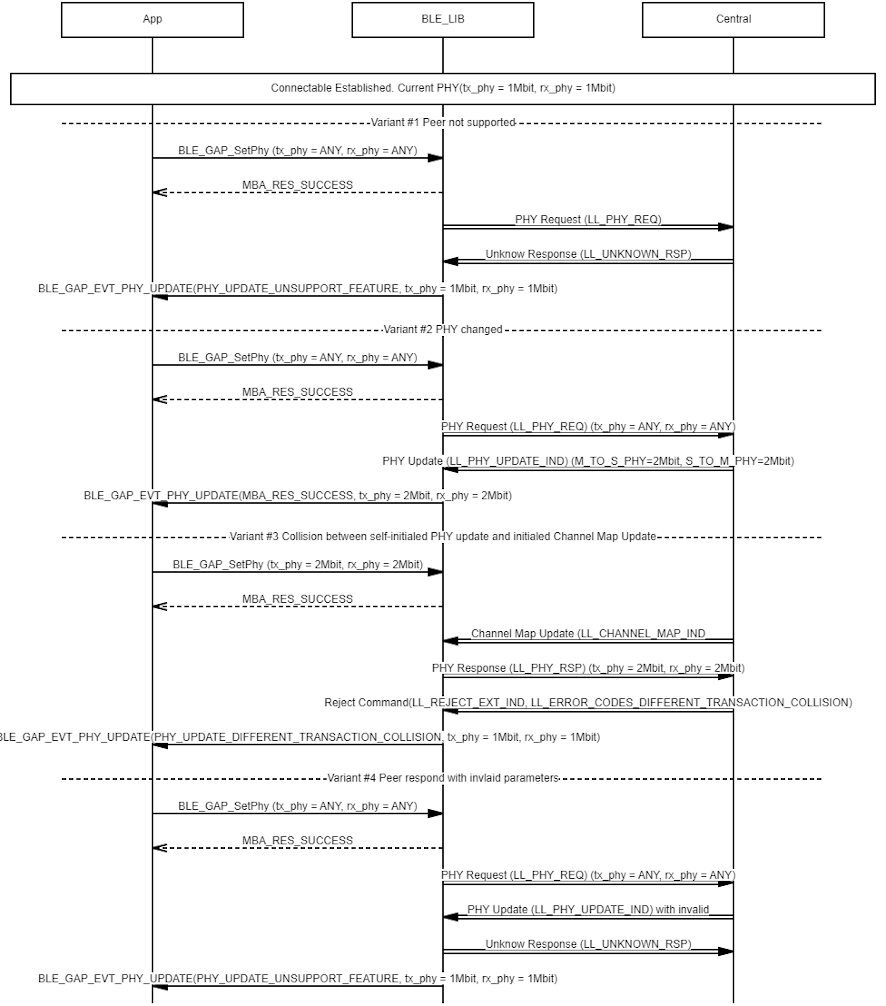

Example demonstrating the central device initiating a PHY update procedure, triggered by the application layer

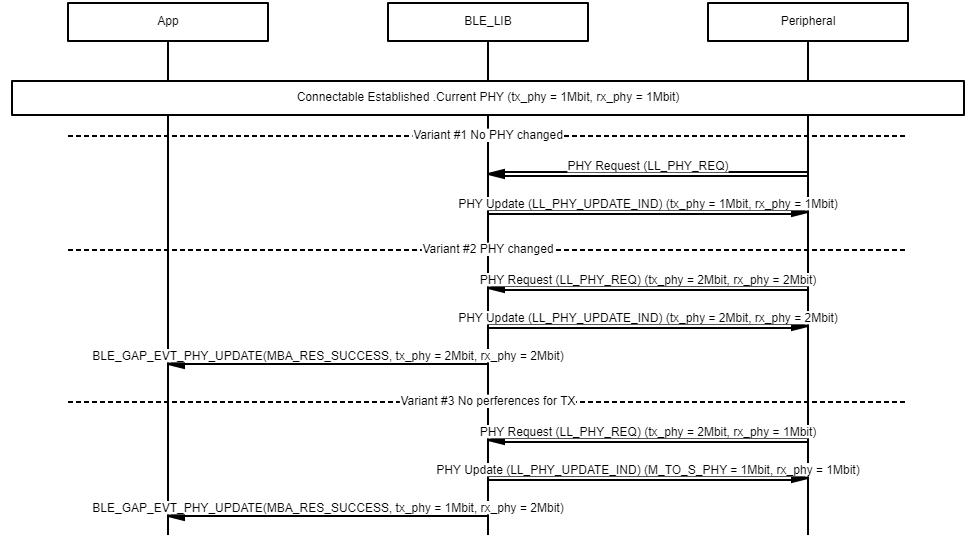

Example demonstrating the peripheral device initiating a PHY update procedure, triggered by the peer device

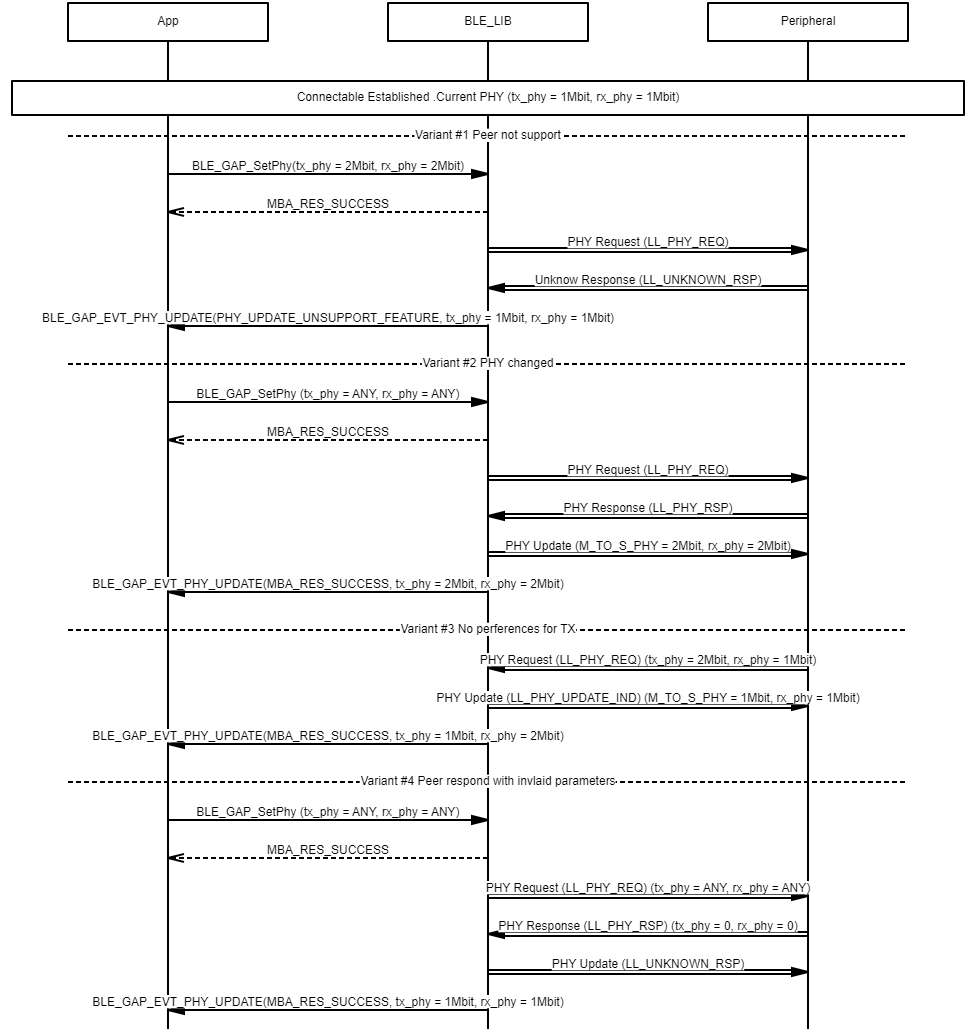

Example demonstrating the peripheral device initiating a PHY update procedure, triggered by the application layer
