1.6.2 Configuring the G3 ADP MAC Driver

The G3 ADP MAC driver is configured through MCC and it provides a MAC capability to connect to NETCONFIG module of the TCPIP stack. Below is the figure of the MCC configuration window and its brief description.

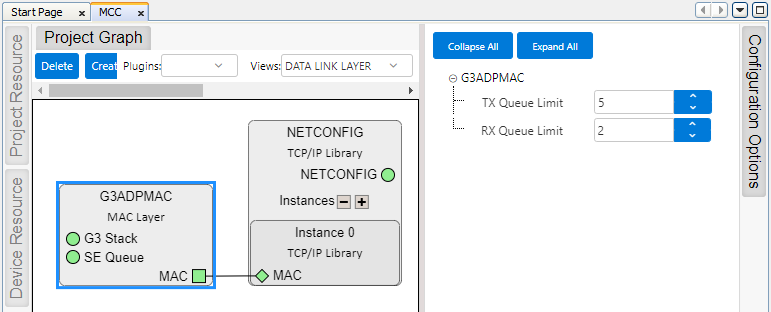

Figure 1-35. MAC G3 ADP Configuration Options
  • TX Queue Limit:
    • Limit of messages in the transmission queue
  • RX Queue Limit:
    • Limit of messages in the reception queue
