2.4.1 Overview

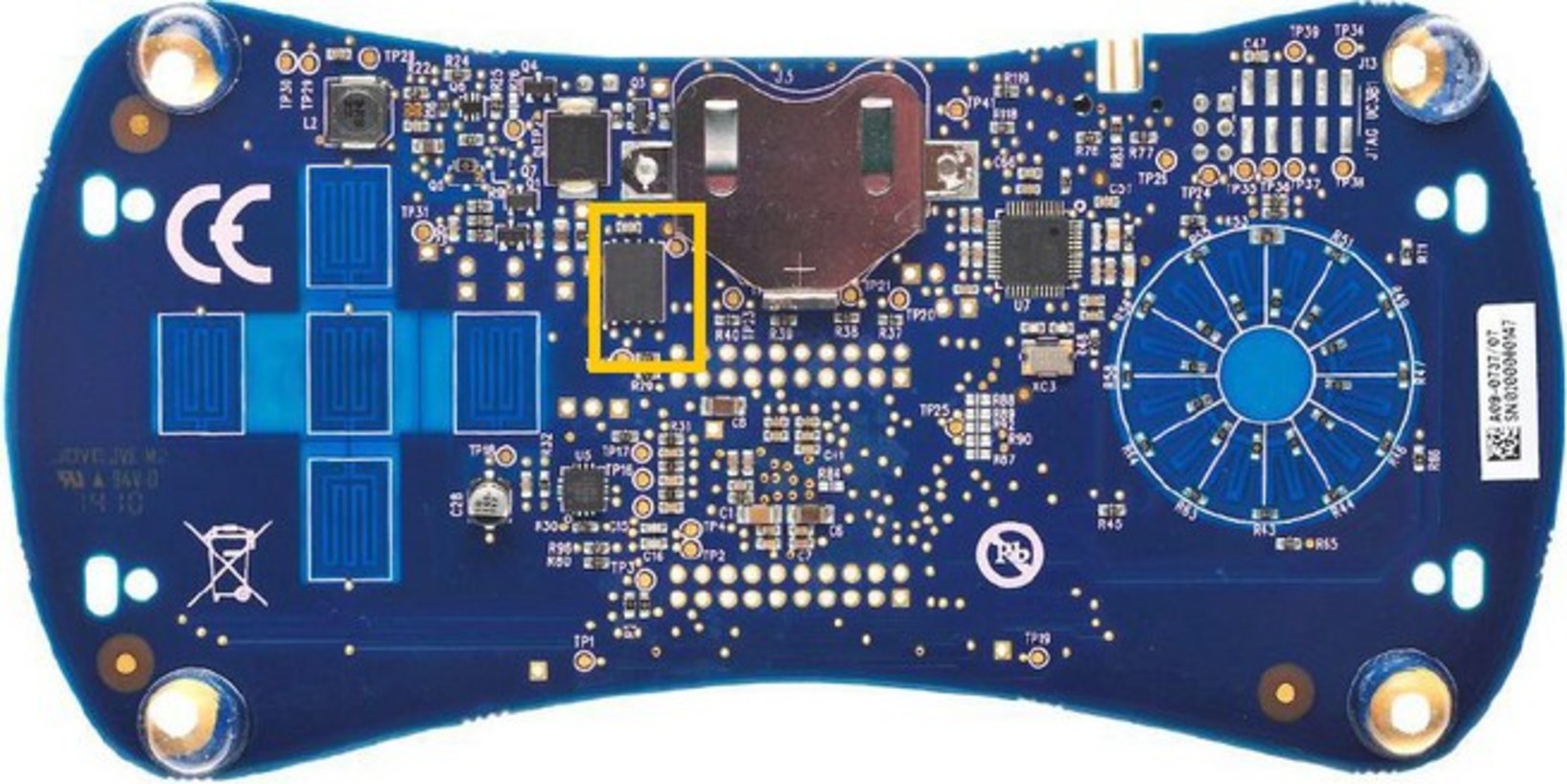

Figure 2-10. AT32UC3L-EK External Memory Logical View

The AT32UC3L-EK contains a 64Mbit Atmel DataFlash device (AT45DB642D-CNU) that is connected to the SPI0 interface of the AT32UC3L064.

Figure 2-11. AT32UC3L-EK External Memory Logical View
