SMP LESC Pairing in the GAP Central Role Procedure

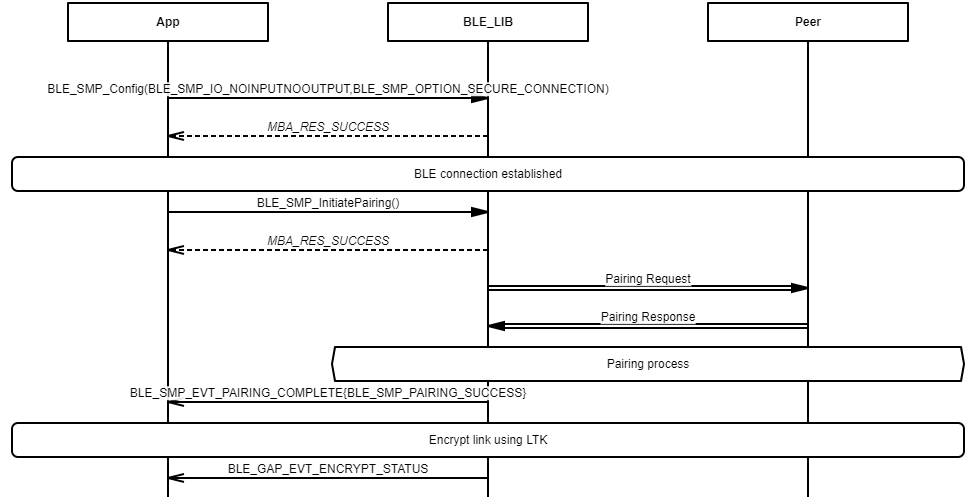

Example demonstrating SMP LESC Pairing in the GAP central role using the "Just Works" method

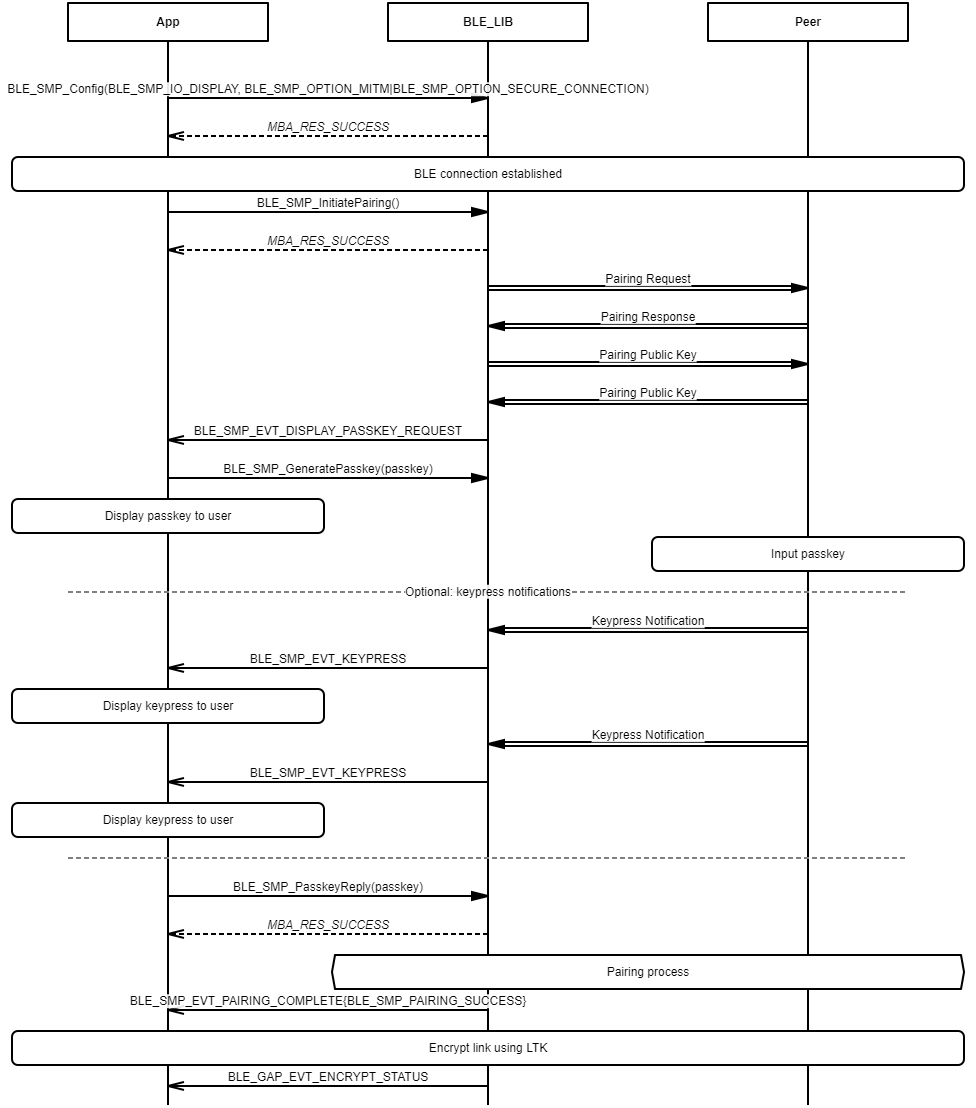

Example demonstrating SMP LESC Pairing in the GAP central role with Passkey Entry, where the Central device displays the passkey

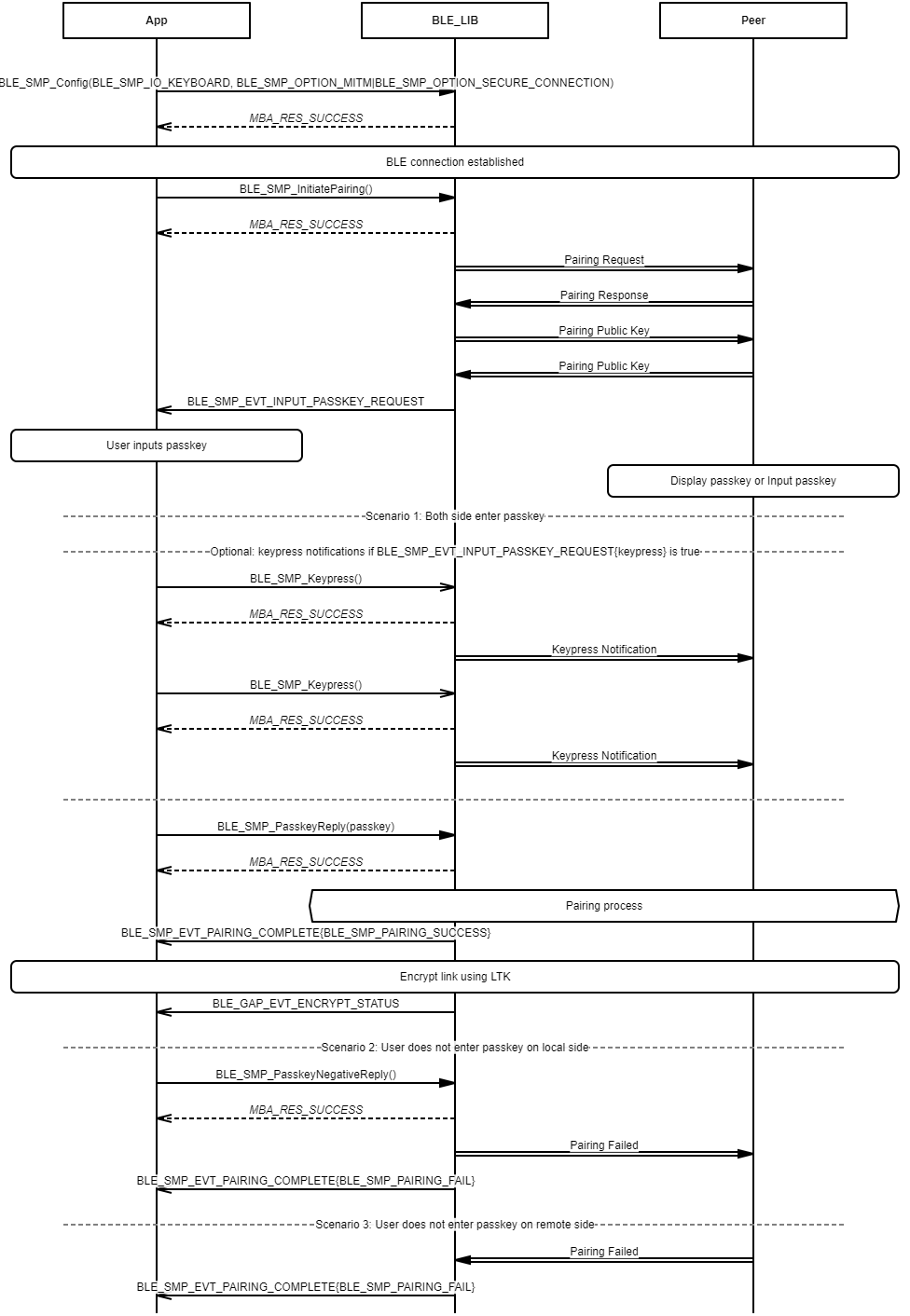

Example demonstrating SMP LESC Pairing in the GAP central role with Passkey Entry, where the Central device inputs the passkey

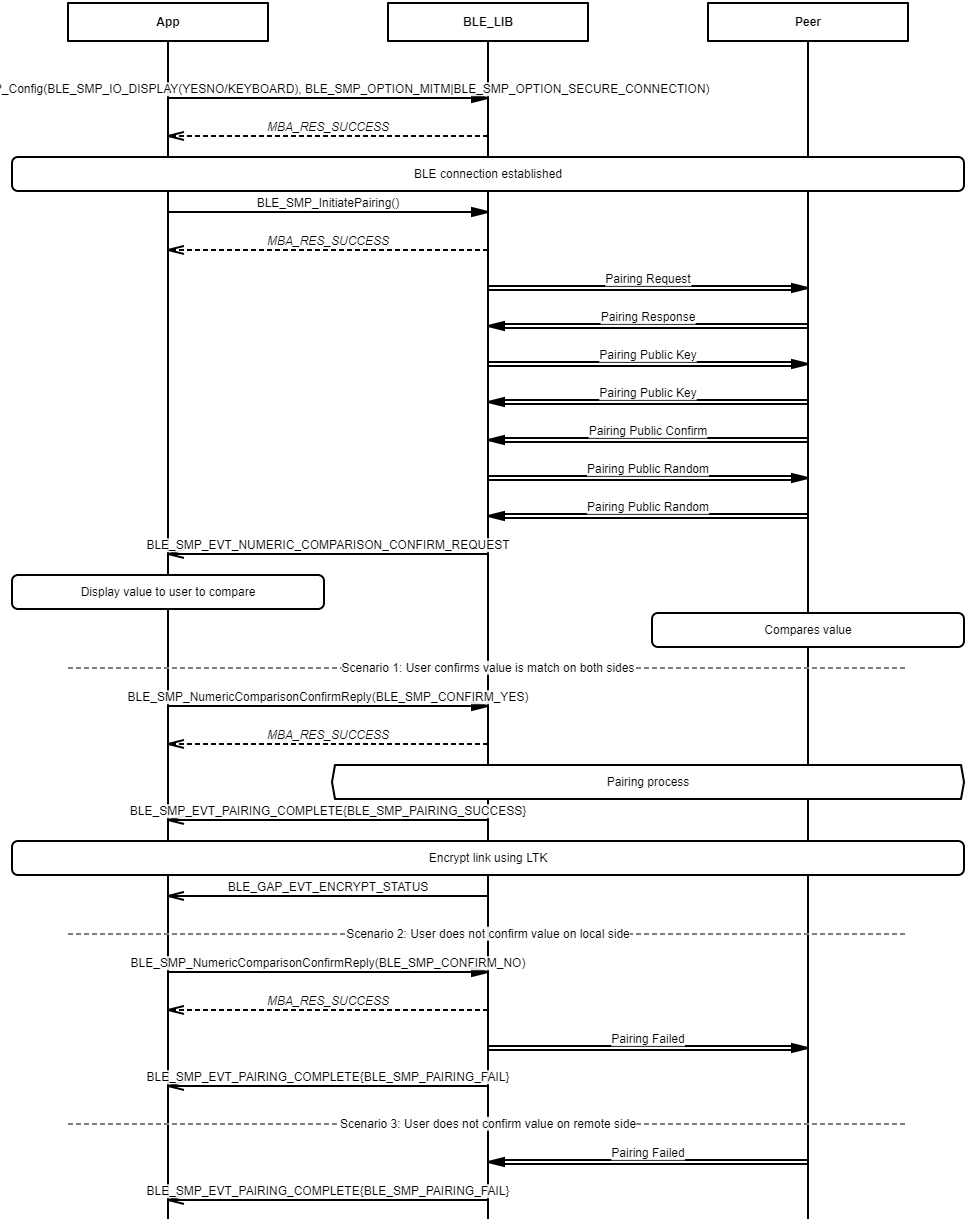

Example demonstrating SMP LESC Pairing in the GAP central role with Numeric Comparison

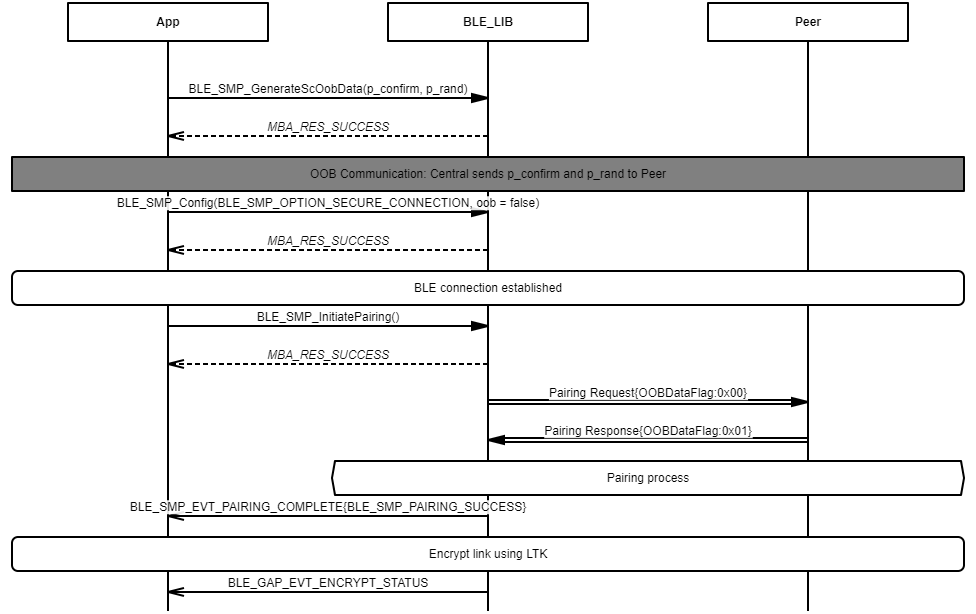

Example demonstrating SMP LESC Pairing in the GAP central role with Out-of-Band (OOB) data sent only from Central to Peer

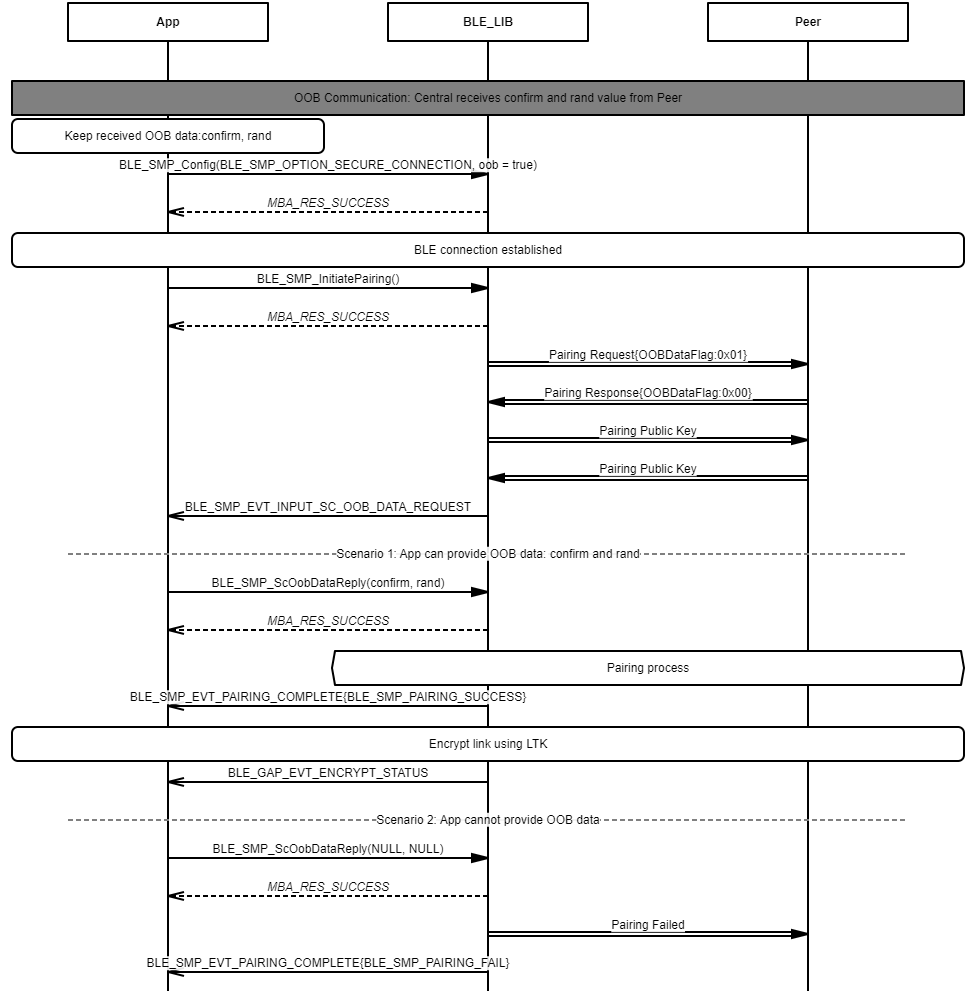

Example demonstrating SMP LESC Pairing in the GAP central role with Out-of-Band (OOB) data sent only from Peer to Central

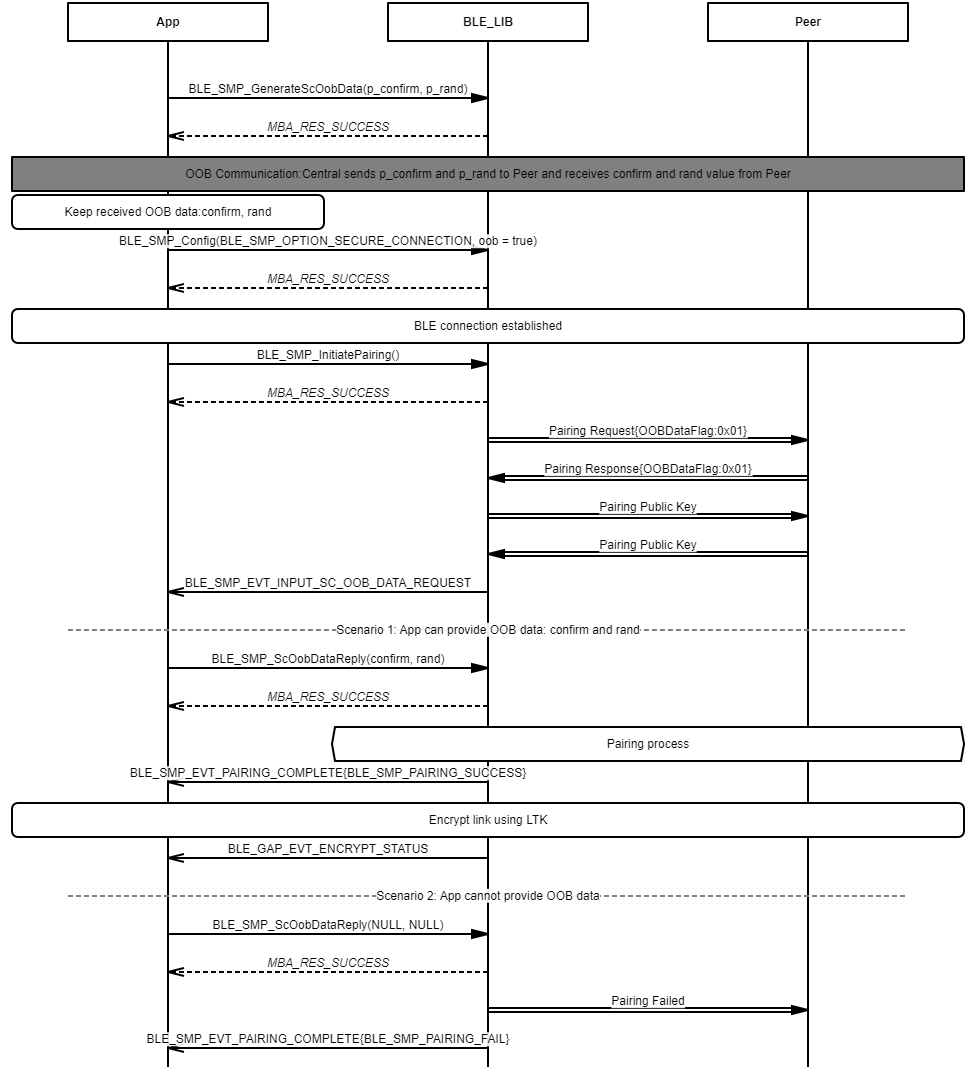

Example demonstrating SMP LESC Pairing in the GAP central role with Out-of-Band (OOB) data exchanged between Central and Peer
