SMP LESC Pairing in the GAP Peripheral Role Procedure

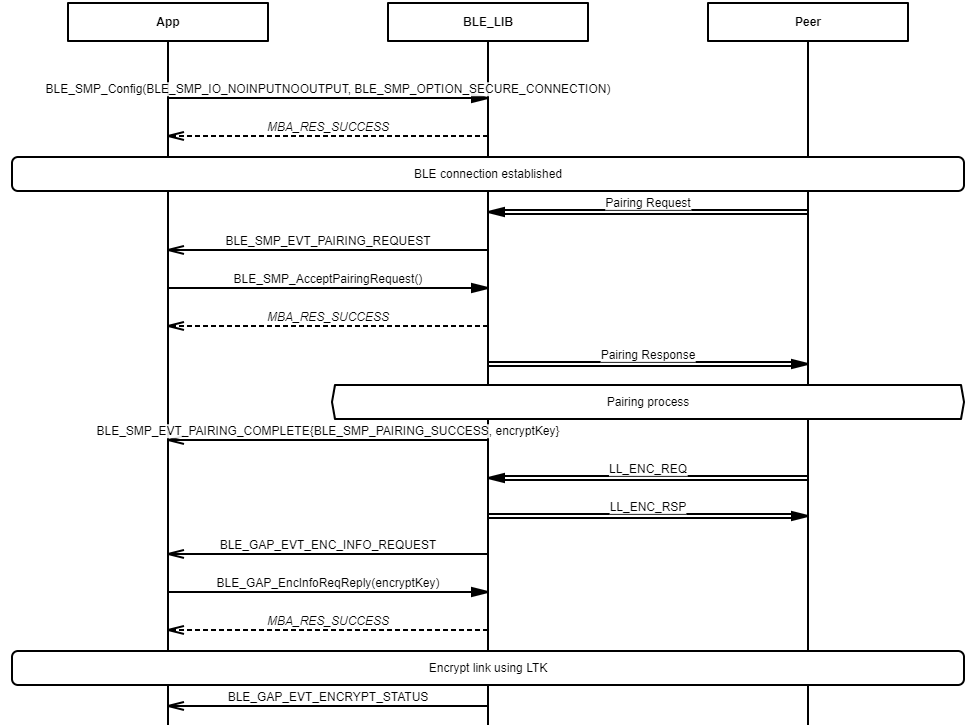

Example demonstrating SMP LESC Pairing in the GAP peripheral role using the "Just Works" method

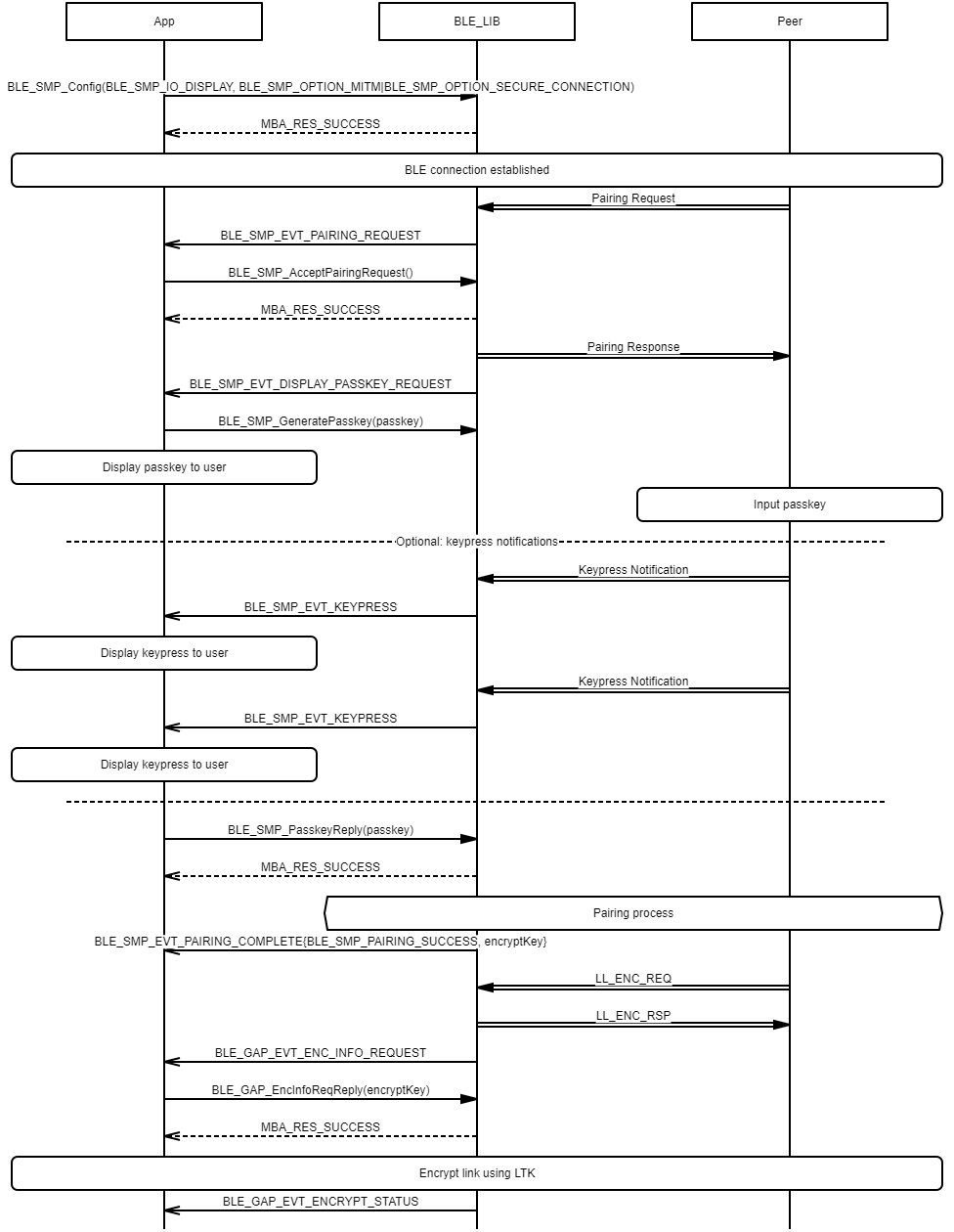

Example demonstrating SMP LESC Pairing in the GAP peripheral role with Passkey Entry, where the Peripheral device displays the passkey

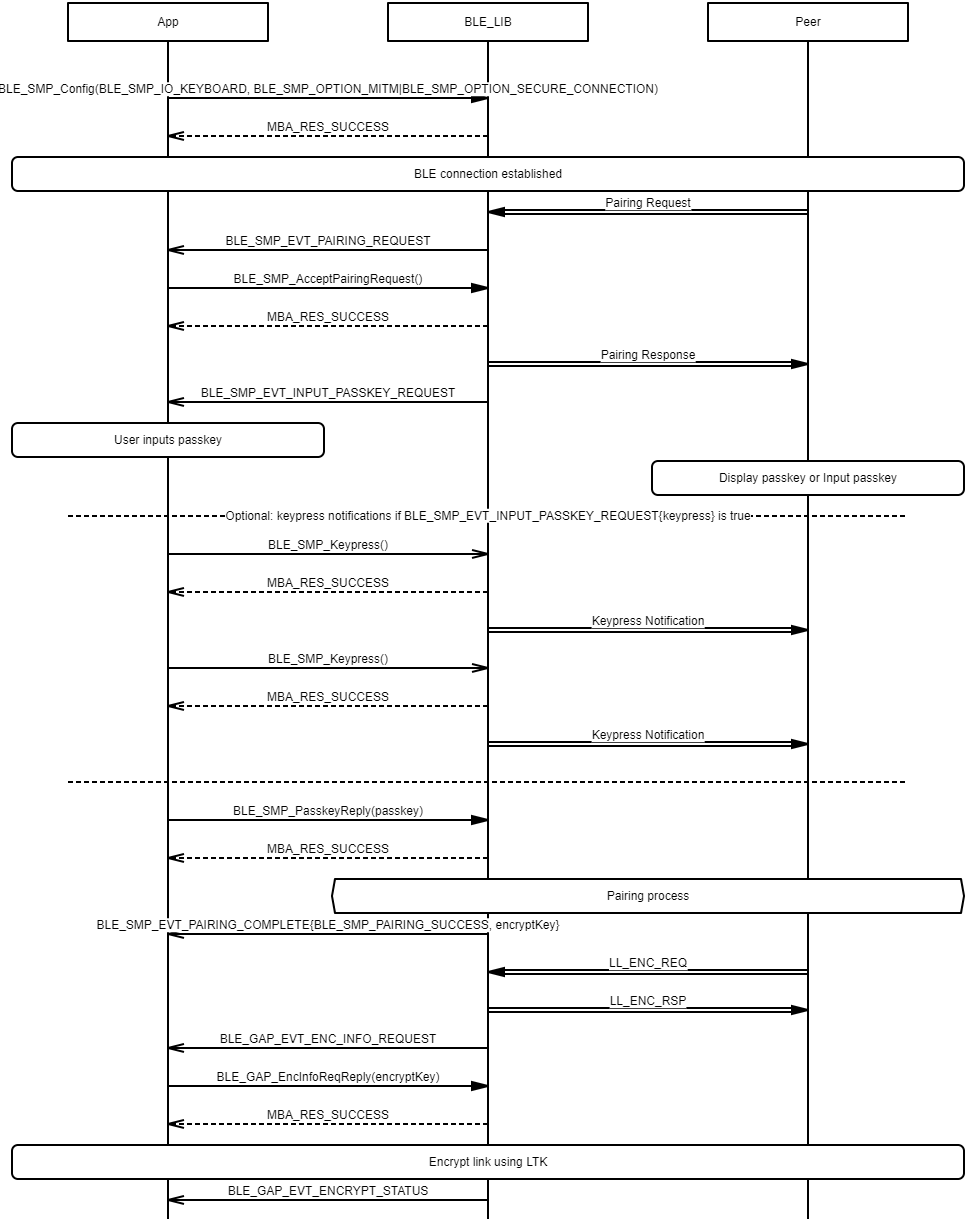

Example demonstrating SMP LESC Pairing in the GAP peripheral role with Passkey Entry, where both sides input the passkey

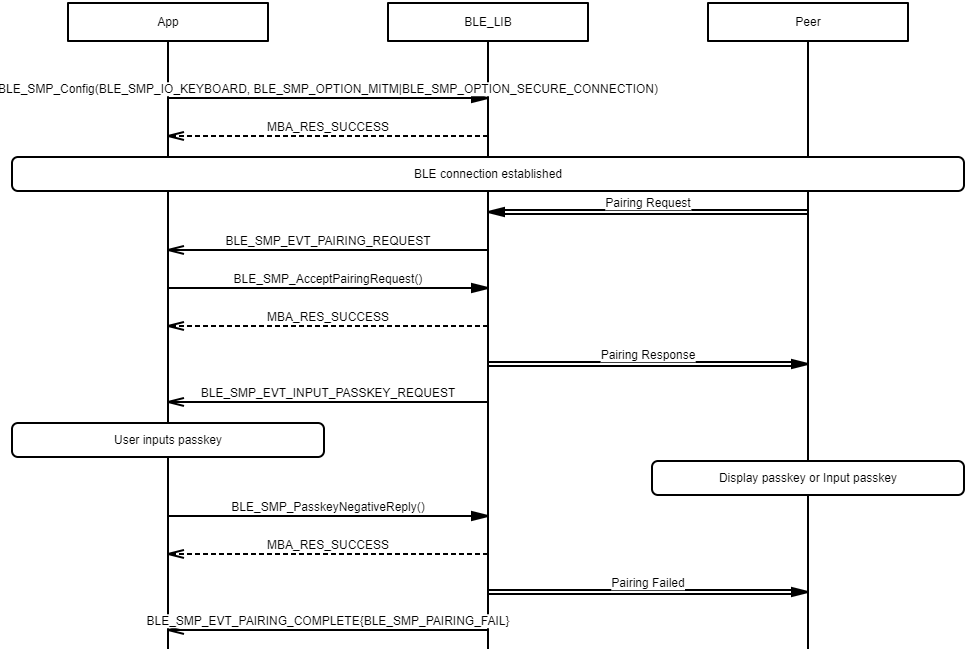

Example demonstrating SMP LESC Pairing in the GAP peripheral role with Passkey Entry, where the user rejects entering the passkey on the local side

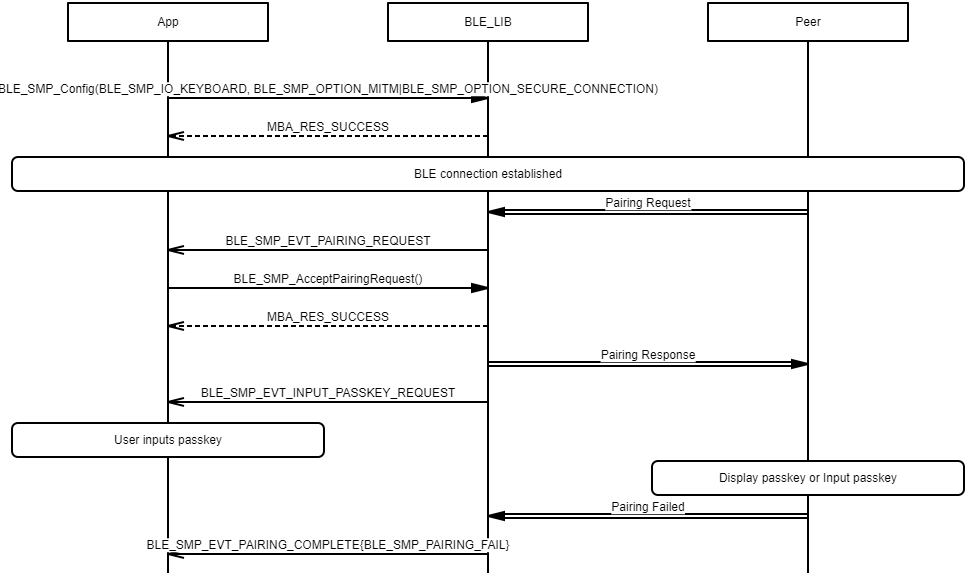

Example demonstrating SMP LESC Pairing in the GAP peripheral role with Passkey Entry, where the remote side rejects or does not enter the passkey

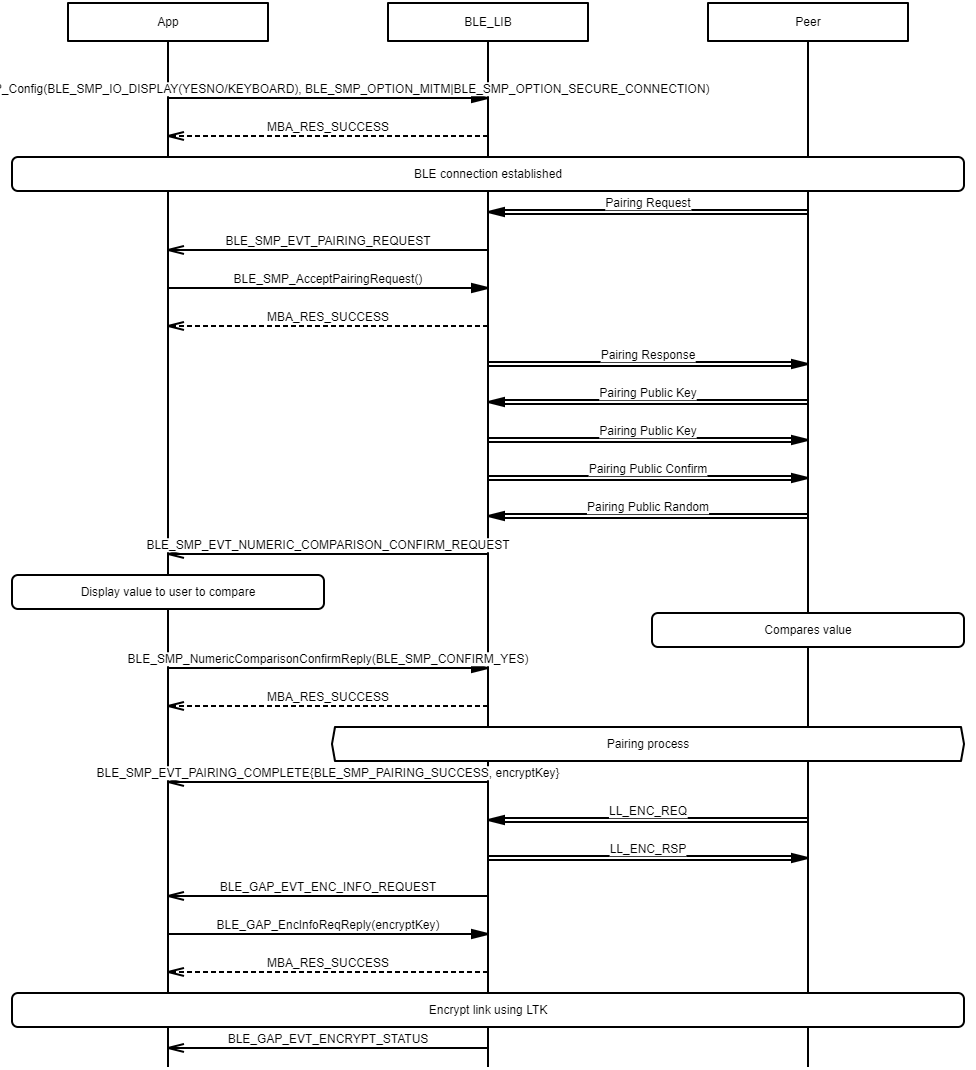

Example demonstrating SMP LESC Pairing in the GAP peripheral role with Numeric Comparison, where the user confirms that the values match on both sides

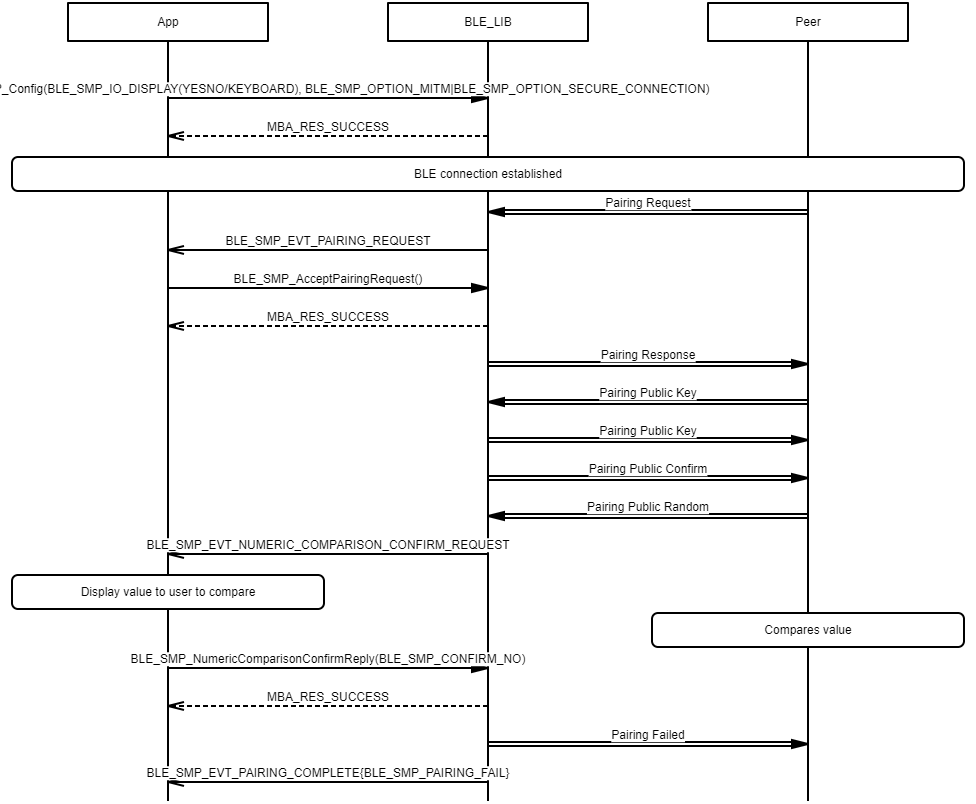

Example demonstrating SMP LESC Pairing in the GAP peripheral role with Numeric Comparison, where the user does not confirm the value on the local side

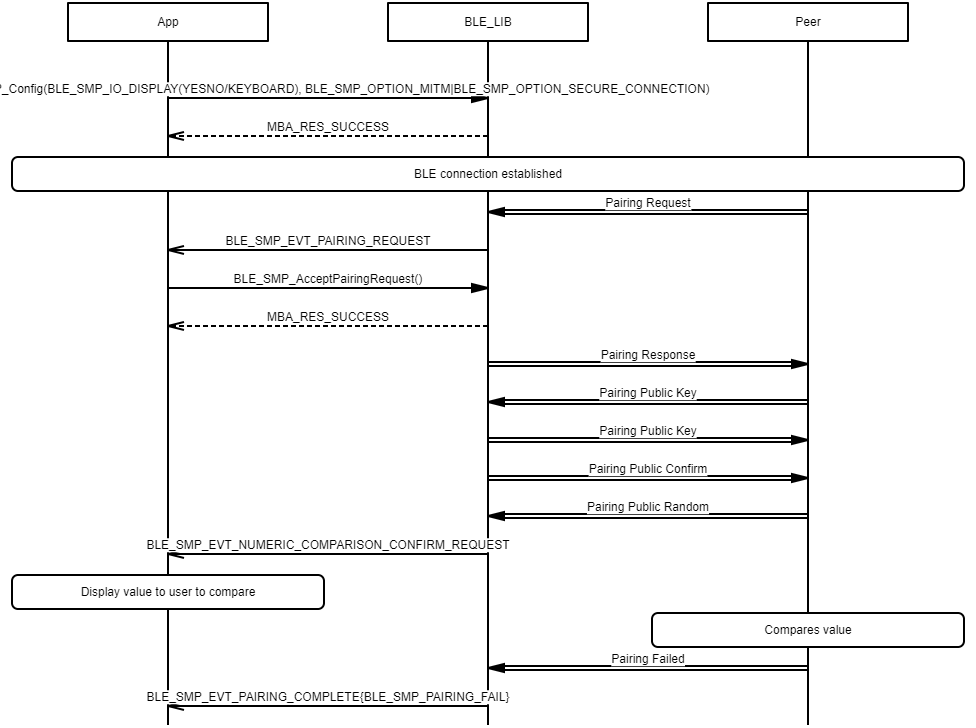

Example demonstrating SMP LESC Pairing in the GAP peripheral role with Numeric Comparison, where the user does not confirm the value on the remote side

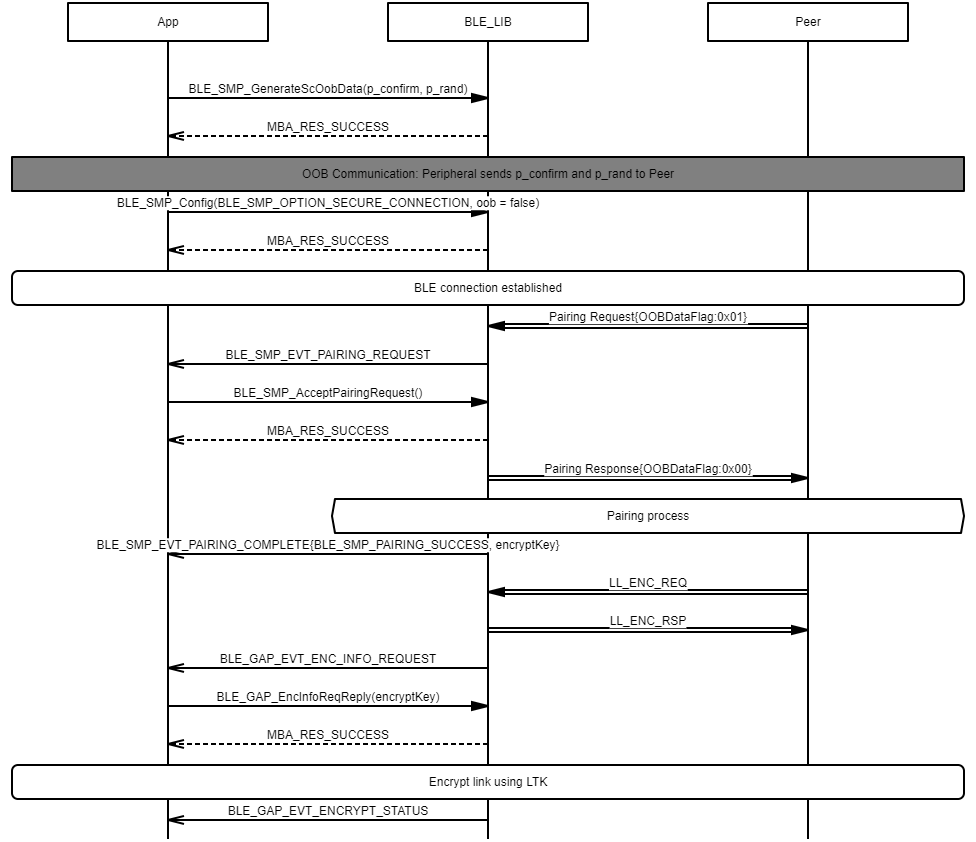

Example demonstrating SMP LESC Pairing in the GAP peripheral role with Out-of-Band (OOB) data sent only from Peripheral to Peer





Example demonstrating SMP LESC Pairing in the GAP peripheral role with Out-of-Band (OOB) data sent only from Peer to Peripheral





Example demonstrating SMP LESC Pairing in the GAP peripheral role with Out-of-Band (OOB) data exchanged between Peripheral and Peer
