5.3 MCC Pin Resource Configuration

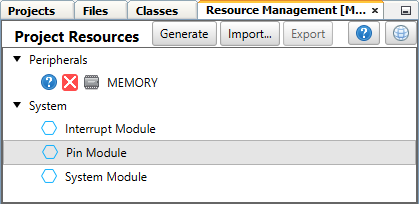

Figure 5-5. Project Resources Pin Module

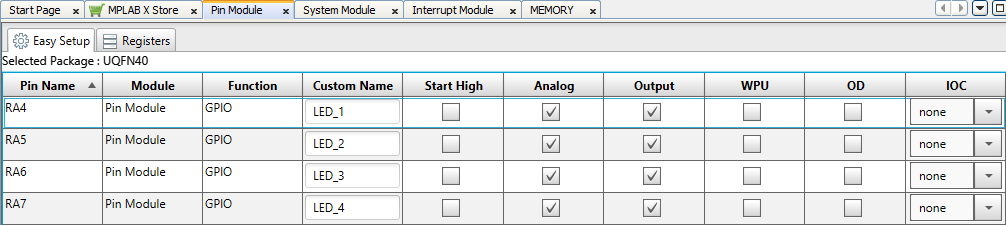

Figure 5-6. Pin Module Configuration

Pins R4:7 will appear in the window above when they are selected in MCC GPIO Pin Resource Configuration.

Once visible in the window, pin configurations can be selected for each pin.
