3.4 PAL PTA Configuration

This setion provides the MCC design details to configure and support the PTA feature into the project.

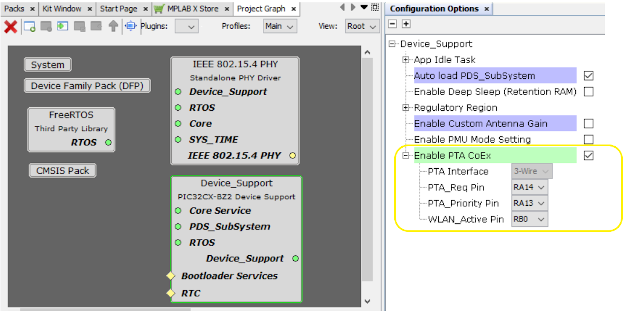

The Configuration to enable PTA configuration is provided in the Device Support Library Component as shown below.

The IEEE 802.15.4 PTA supports two interface modes

  1. 3-Wire PTA
  2. 2-Wire PTA

As the names suggest, the 3-Wire PTA necessitates three pins to activate the PTA feature, while the 2-Wire PTA requires only two pins to accomplish the same functionality. The PTA pin configurations are initially mapped to certain pins by default, but they can be customized to meet user needs.

The PTA parameter configuration can be found under IEEE 802.15.4 Standalone PHY → Configuration Options. The images below illustrate these configurations.

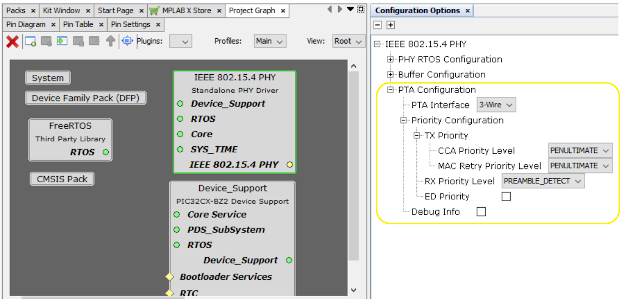

Figure 3-2. 3-Wire PTA Config

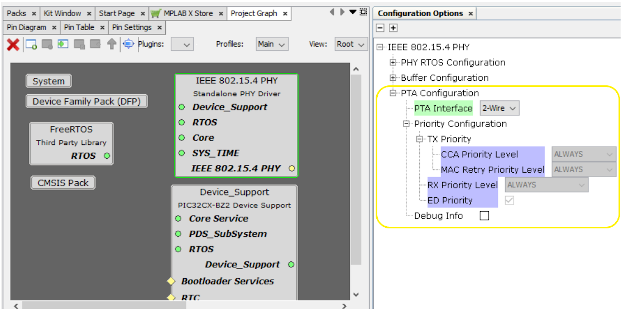

Figure 3-3. 2-Wire PTA config

The configuration parameters shown in the image above are detailed in the table below.

Table 3-3. PTA Paramter Configuration
S.No.MCC ParameterPossible SelectionDescription
1PTA Interface
  • 3-Wire (Default)
  • 2-Wire
Type of interface to use PTA CoEx Feature.
2TX - CCA Priority Level

  • ALWAYS

  • PENULTIMATE(Default)

  • NEVER

Set priority request for CCA based on the config selection.
3TX - MAC Retry Priority Level
  • ALWAYS
  • PENULTIMATE(Default)
  • NEVER
Set priority request for MAC Retry based on the config selection.
4RX Priority Level
  • ALWAYS
  • PREAMBLE_DETECT(Default)
  • NEVER
Set priority request for RX based on the config selection.
5ED Priority
  • True
  • False(Default)
Enable/Disable Priority request for ED operation.
6Debug info
  • True
  • False(Default)
Enable/Disable debug Info feature.
