Preface
1 AVR32LA32 Key Features
The AVR® LA microcontroller family uses the latest technologies from Microchip Technology and features a flexible, low-power architecture, including an Event System, accurate analog subsystems, advanced digital peripherals, and Peripheral Touch Controller.
2 Pinout
AVR32LA32 Curiosity Nano pinout diagram.
3 Board Features
Features of Curiosity Nano, board layout picture, board block diagram, and Curiosity Nano pinout standard.
4 Out-of-Box Demo
This is an interactive demo program.
5 Setup Essentials
Step-by-step project setup and pin-header assembly instructions.
6 On-Board Nano Debugger
This section describes the features and interfaces of the on-board debugger for programming and debugging.
7 Hardware Peripherals
Kit hardware peripherals overview.
8 Power Supply
9 Hardware Revision History and Known Issues
Provides information about the latest board revision, known issues, and differences from previous versions.
10 Document Revision History
11 Appendix
Schematic, Assembly Drawing, Adapter Pinout, Programming External MCUs, External Debuggers
Microchip Information

Preface

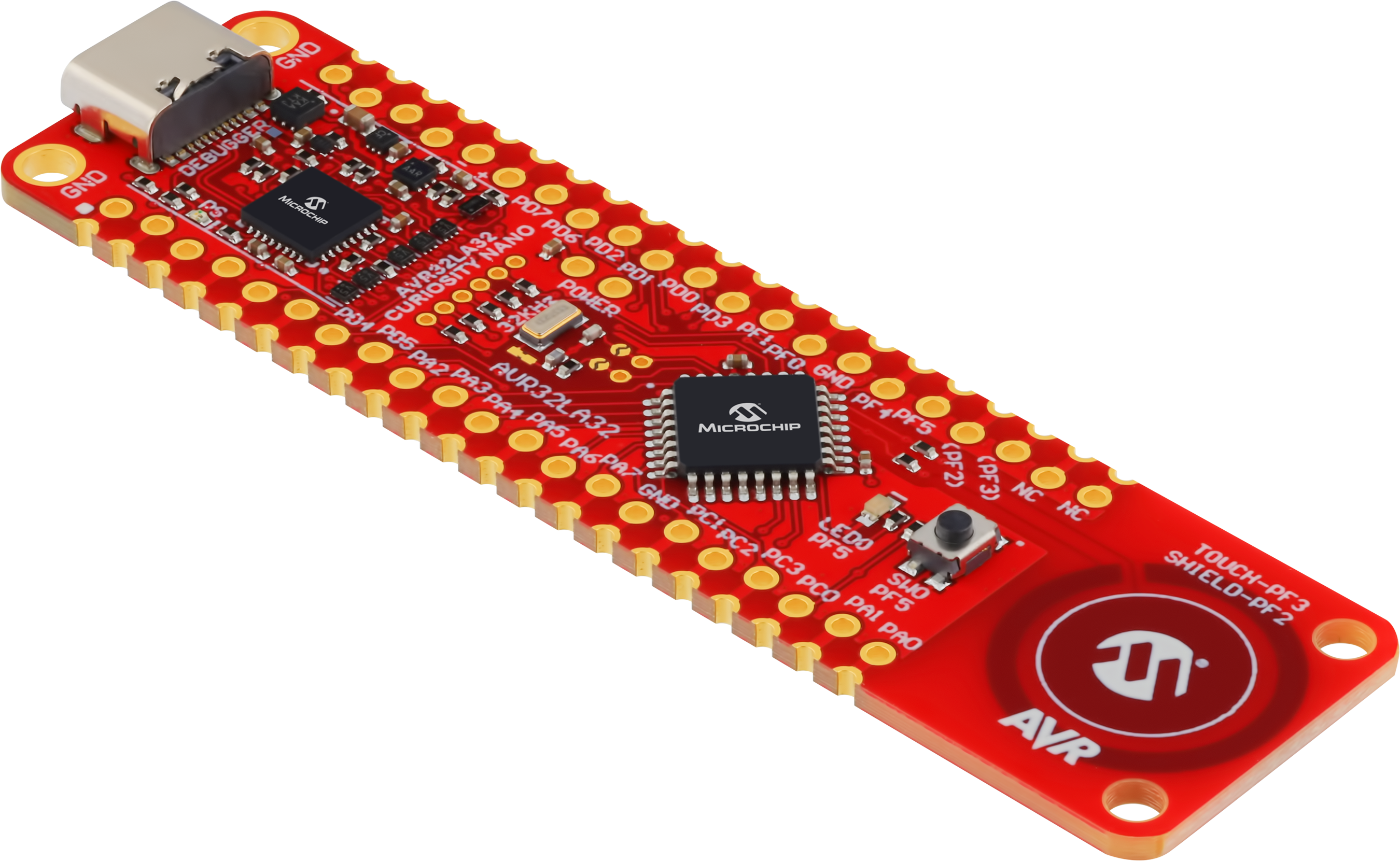

The AVR32LA32 Curiosity Nano evaluation kit (EV24D63A) is a hardware platform for evaluating the AVR® LA family. This board features the AVR32LA32 (referred to as the target device in this document) mounted on the board.

The Curiosity Nano series of evaluation boards include an on-board programmer and debugger. No external tools are necessary to program and debug the AVR32LA32.


Kit Website	-	Kit information, the latest user guide, and design documentation.
Device Website	-	Find documentation, data sheets, samples, and purchase devices.
Microchip Direct	-	Purchase this kit from Microchip Direct.
MPLAB® Discover	-	Get started with code examples on MPLAB® Discover.
Schematics	-	Board schematics and revision history.
Design Documentation	-	Production files for every revision.

DS50004120A

The online versions of the documents are provided as a courtesy. Verify all content and data in the device’s PDF documentation found on the device product page.
