4.6.1 Combining the Bootloader and Application for AVR® Devices

This section demonstrates how to merge the bootloader and application projects into a single hex file for 8-bit AVR® devices.

In a production environment, it is common practice to build both the bootloader code and the application code together into a single hex file. This allows both projects to be programmed at the exact same time. This section demonstrates how to combine the bootloader and application projects into a unified hex file using MPLAB X.

Important: Make sure to match the Clock Control and Configuration Bits settings to the bootloader project settings. The update might fail if there are differences.

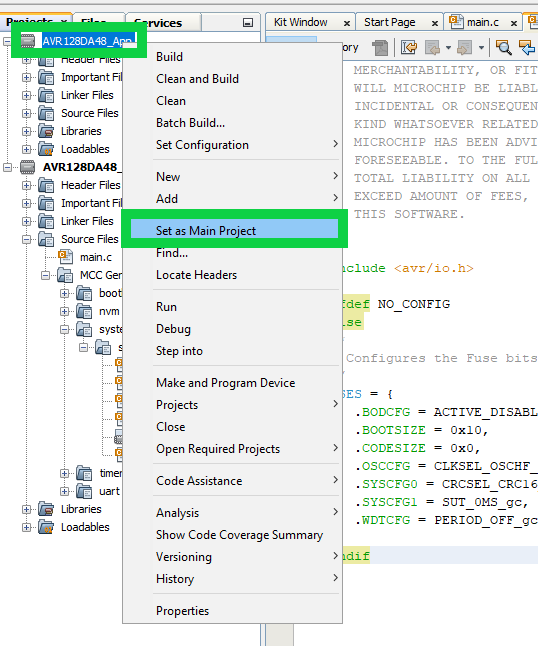

Set the application project as the Main Project.
Create a new configuration in the application project and rename it to ‘COMBINED’.
Navigate to Project Properties>Manage Configurations.... Click Duplicate with the bootable configuration selected and then Rename the resulting copy to ‘COMBINED’. Then click OK and OK again.

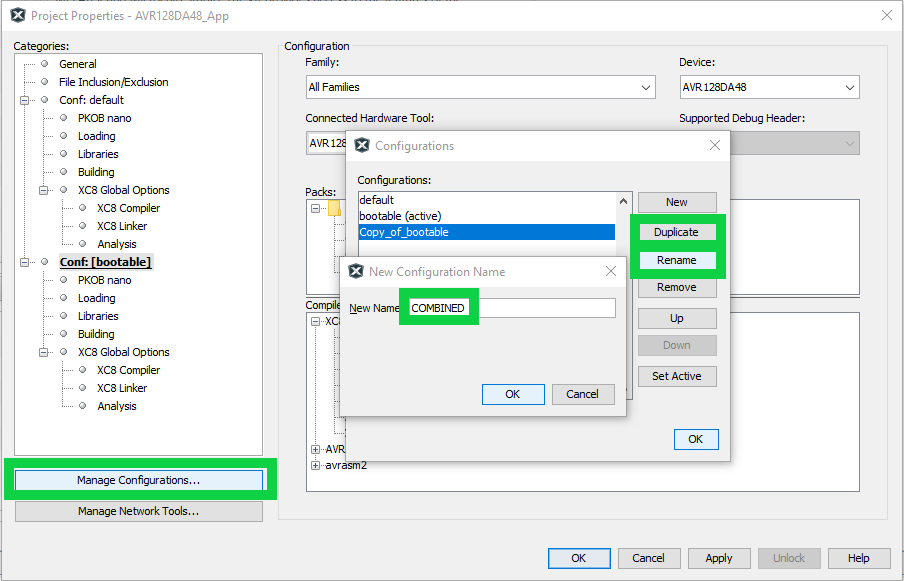

Figure 4-161. Create the New Combined Configuration
Add the bootloader configuration as a loadable project to the ‘COMBINED’ application configuration.
In the COMBINED configuration, navigate to Project Properties>Loading and then click the Add Loadable Project... button.

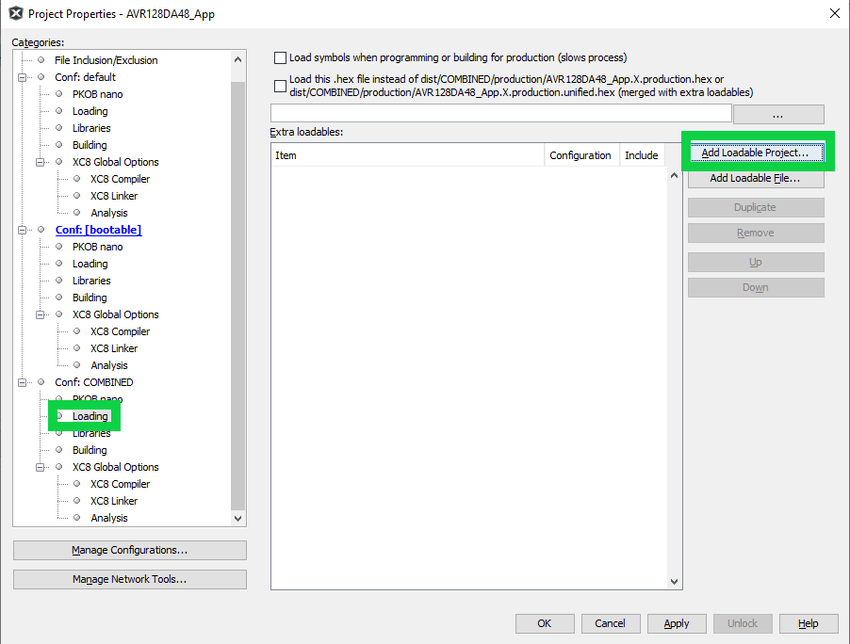

Figure 4-162. Adding the Bootloader to the Application

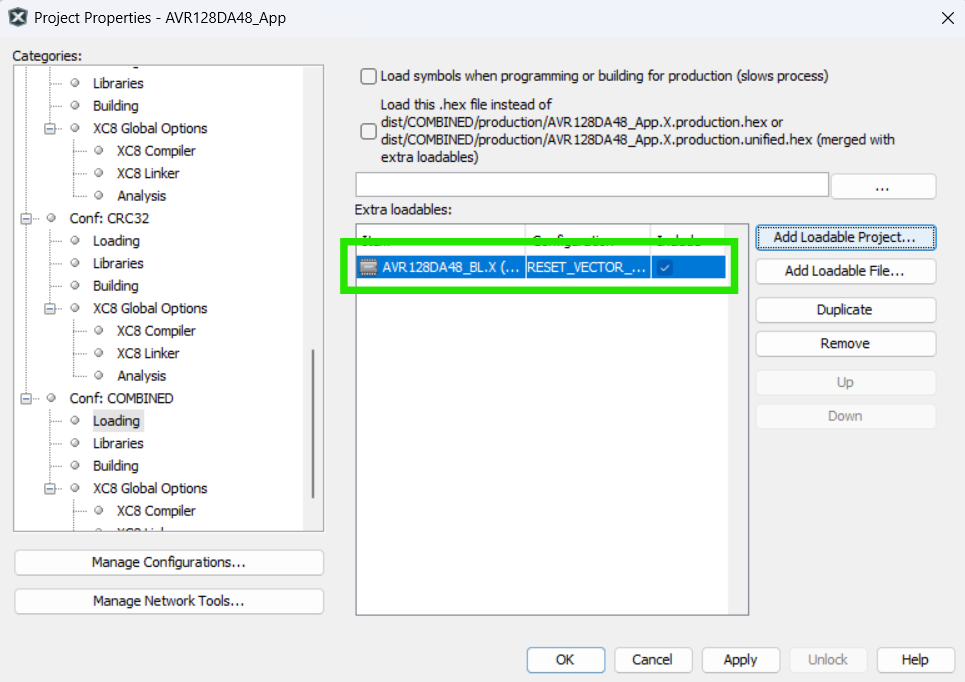

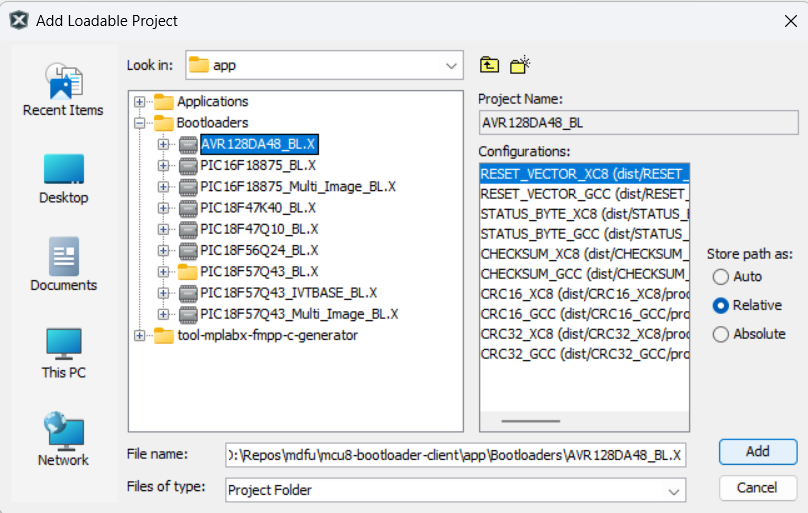

Figure 4-163. Select the Bootloader Configuration

Click Add and then Apply.
Figure 4-164. Completed COMBINED Configuration
Update the post build operations to combined the application hex file for the COMBINED configuration. Add the corresponding command to the post build script after the calculation command.
postBuild.bat
```
set isCombinedBuild='%5' == 'COMBINED'
set unifiedHexFile=%3\%2.X.%4.unified.hex

...
...

REM - Update the unified hex file for the COMBINED configuration
if %isCombinedBuild% hexmate r2000-1FFFF,%appHexFile% r0-1FFF,%unifiedHexFile% -O%unifiedHexFile%
```
postBuild.sh
```
isCombinedBuild='$5' == 'COMBINED'
unifiedHexFile=$3\$2.X.$4.unified.hex

...
...

# - Update the unified hex file for the COMBINED configuration
if [$isCombinedBuild]; then hexmate r2000-1FFFF,%appHexFile r0-1FFF,$unifiedHexFile -O$unifiedHexFile
```

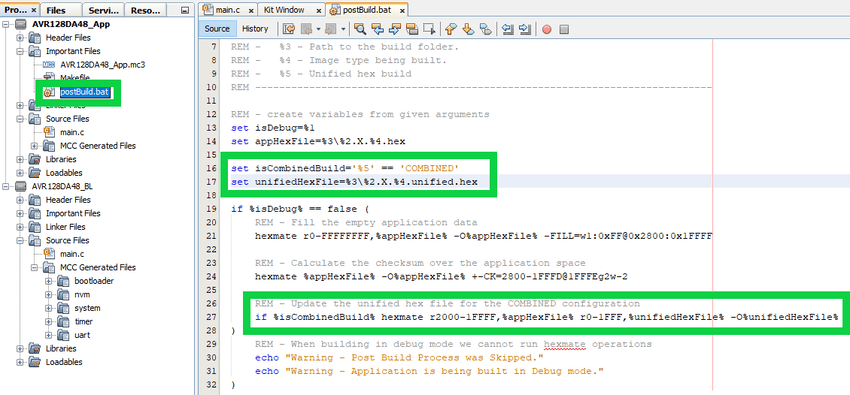

Figure 4-165. Update the Post Build Script

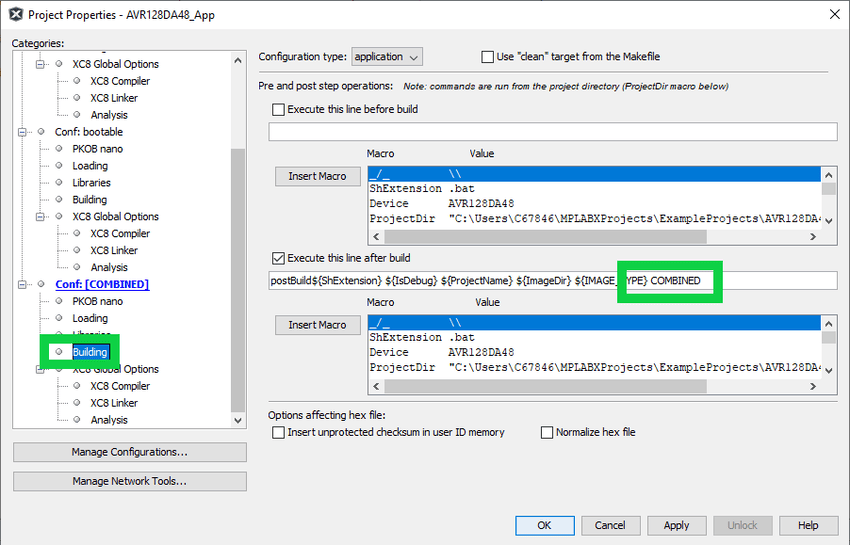

Update the post build command from within the new COMBINED configuration by navigating to Project Properties>COMBINED>Building and adding COMBINED onto the end of the command.
Figure 4-166. Update Post Build Command

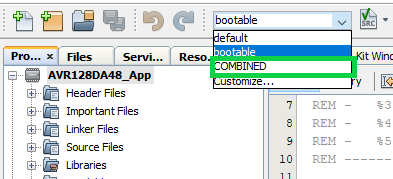

Figure 4-167. Select the COMBINED Configuration

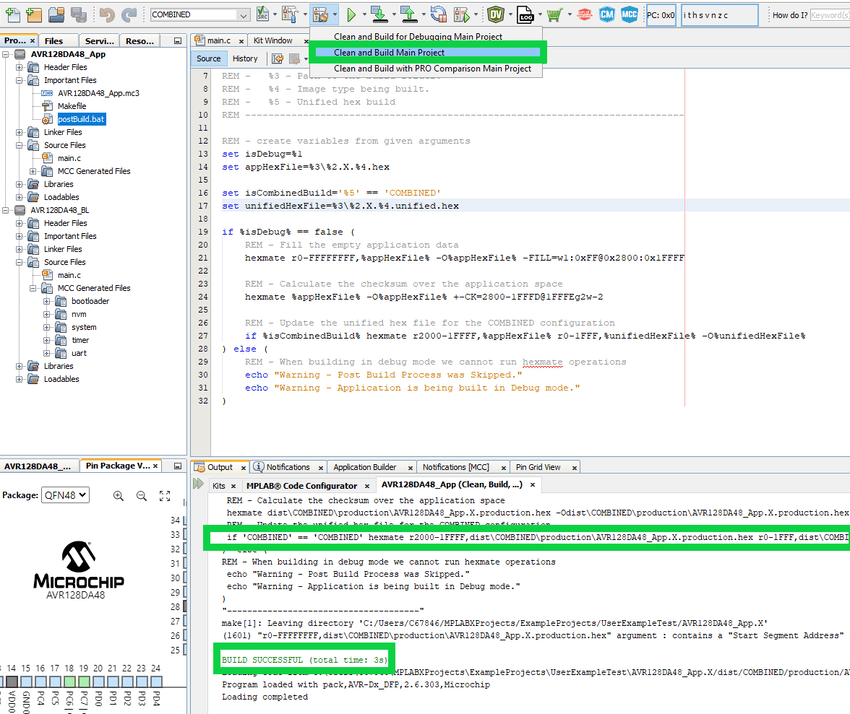

Clean and Build the COMBINED configuration.
