4.3 Netlist Viewer Windows

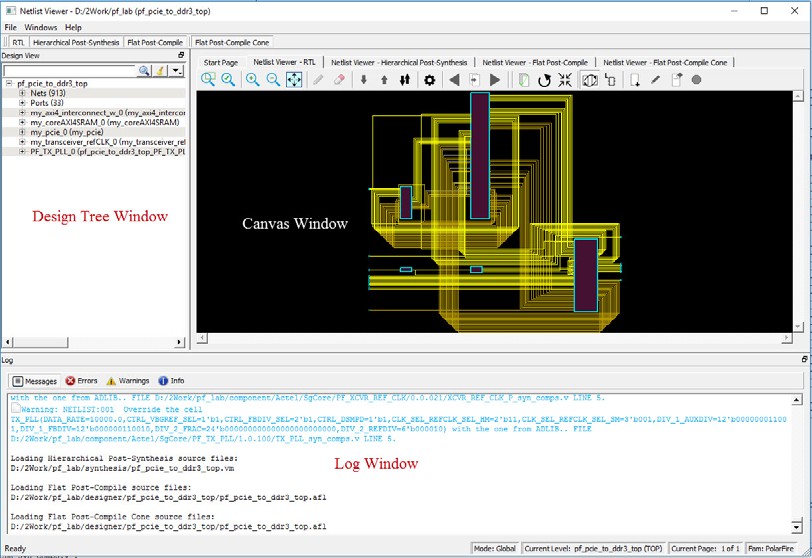

When the Netlist Viewer opens, it displays three windows by default.

Design Tree window displays the design hierarchy from the top level.
Canvas window displays the netlist views.
Log window displays messages, warnings, info, and so on.
