4 CPU Registers

This module contains functional safety diagnostics APIs for CPU Registers.

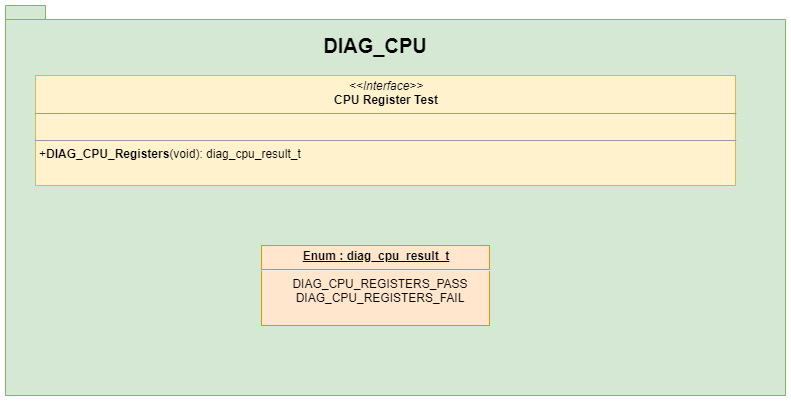

The following is an UML Interface diagram for CPU Registers:

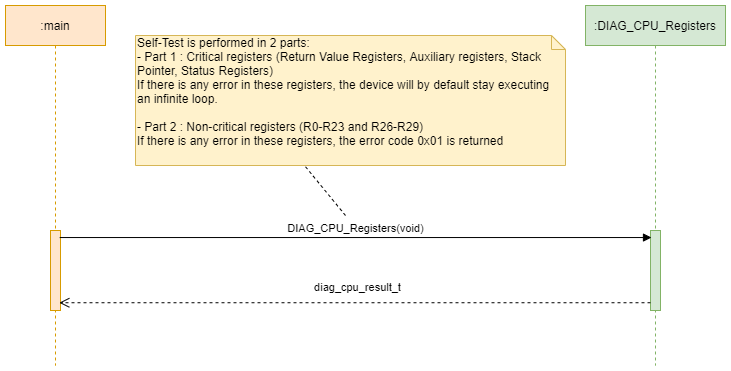

The following is an UML Sequence diagram for CPU Registers:
