3.5.1 Read

The following table provides the command syntax for read eFuse before initialization.

Table 3-38. Read eFuse: Before Initialization
Command Syntax MCHPRT r
r
  • r refers to I2C
  • r_UART refers to UART
Example MCHPRT r

eFuse information display

The following figure shows the example of read eFuse before initialization.

Figure 3-46. Console Log of Read eFuse Before Initialization

The following table provides the command syntax for read eFuse after initialization.

Table 3-39. Read eFuse: After Initialization
Command Syntax MCHPRT 16 r
Example MCHPRT 16 r

eFuse information display

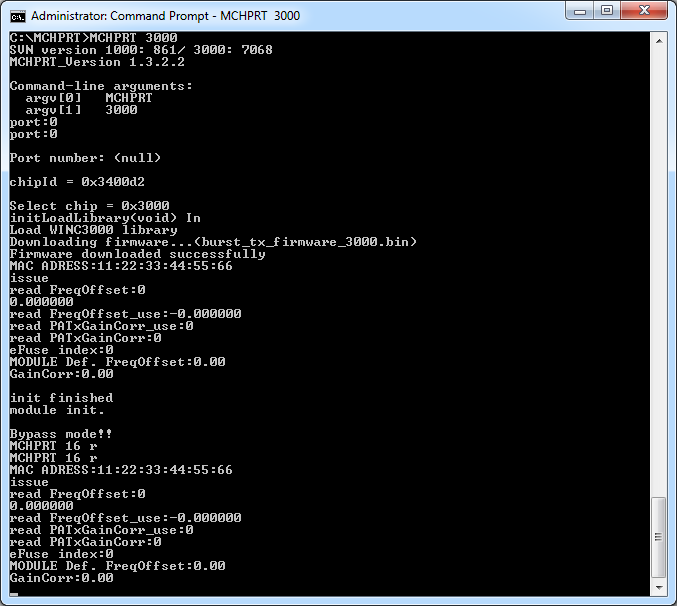

The following figure shows the example of read eFuse after initialization.

Figure 3-47. Console Log of Read eFuse After Initialization
