1.2.6.5 SN Registration Request through a Switch

This is the diagram that appears in the PRIME specification 1.3.6 showing the registration process initialized by a Service Node through its switch:

Figure 1-30. Registration Process Accepted

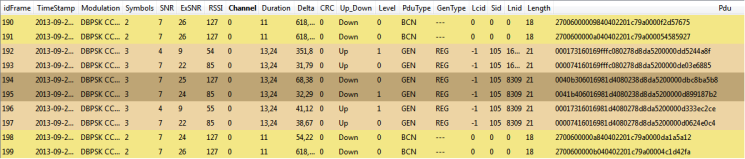

In the sniffer capture window it is easy to identify the same process shown above. The next image shows the registration process with the 6 frames involved.

In order to obtain more details, the user could go to the packet view. It is possible to find the type of messages and associate them with the previous diagram:

Frame 192:
Frame 193:
Frame 194:
Frame 195:
Frame 196:
Frame 197:
