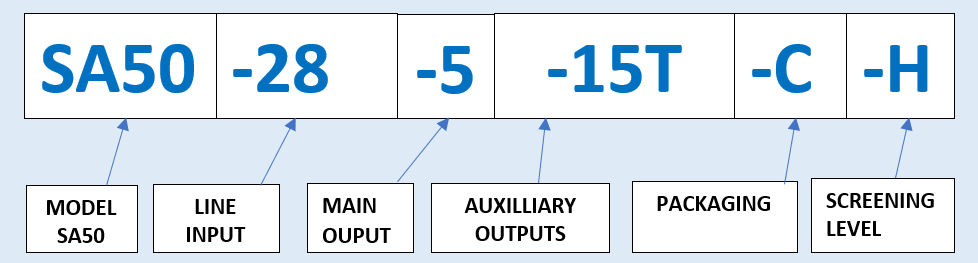

17 Ordering Information


Model	SA50	Standard Applications 50W, 28V input modules
Line input	-28	28.0V	Line input voltage. Nominal input line
Main	-3R3	3.3V	Main output voltage
Main	-5	5.0V	Main output voltage
Aux	-12T	12.0V	Auxiliary output voltages (A and B outputs identical) (T is for triple)
Aux	-15T	15.0V
Mechanical Package	-A	Axial	0.125 in thru-hole	Mechanical packaging options. Electrical connections are either Radial or Axial. Mounting holes are drilled thru-hole or Threaded.
	-B	Radial	4-40 thread
	-C	Axial	M3 thread
	-D	Radial	0.125 in thru-hole
	-E	Axial	4-40 thread
	-F	Radial	M3 thread
Radiation Hardness	-H	Hardened	Microchip offers units with two levels of radiation screening. Hardened and Prototype (non-hardened) units.
Radiation Hardness	-P	Prototype

Note: Other input voltage and output voltage combinations are available. Contact your local sales representative.

Microchip also offers a thermal interface, the ST-2X3; this is a non-silicon, space-approved thermal interface. The data sheet is available upon request.
