1.4 Programming a Device

To program a device, follow these steps:

Note: Prior to handling ESD components, attach a grounding strap to your wrist and the antistatic connection on the side of the programmer.
  1. Click Device.

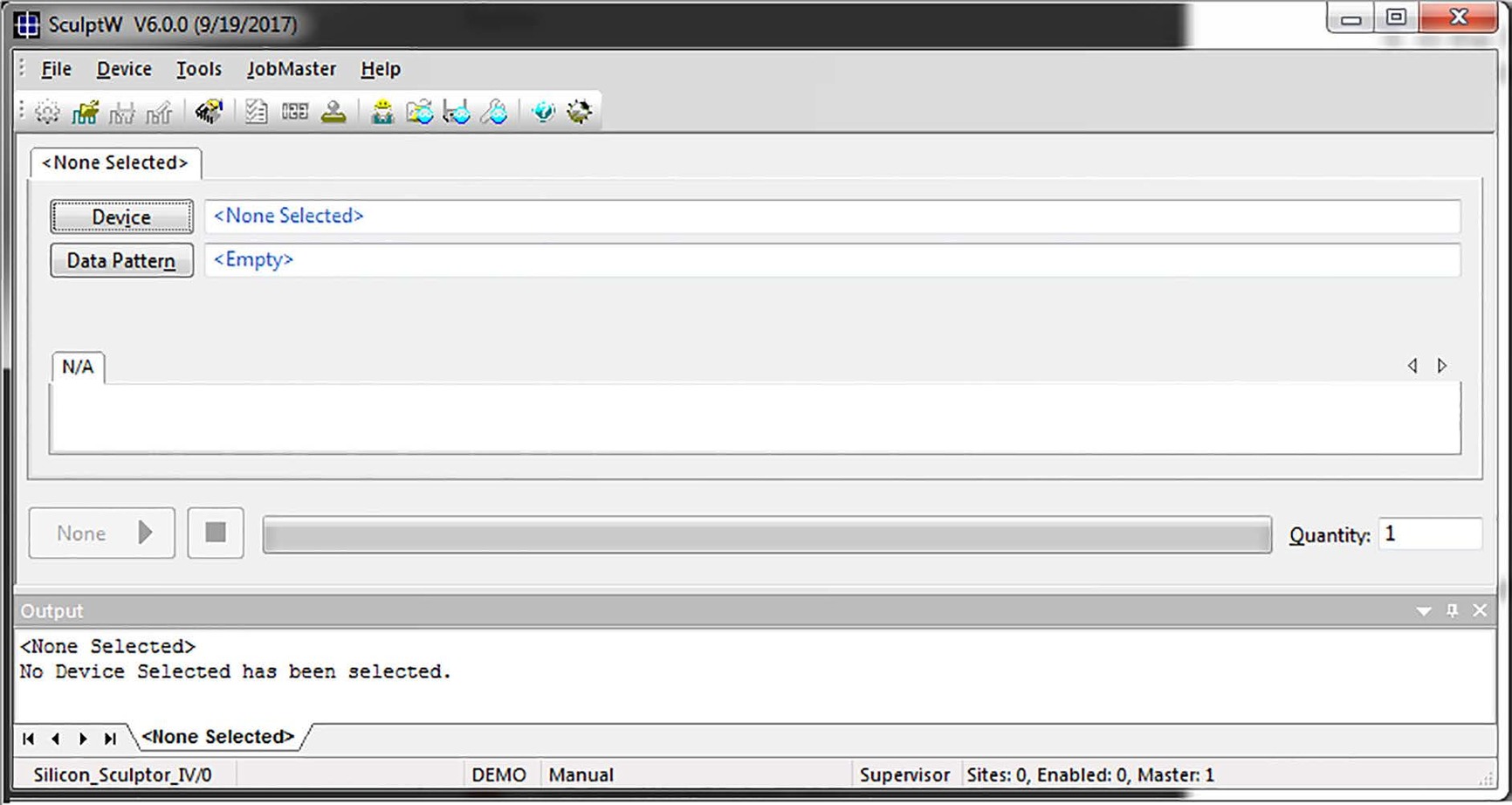

    Figure 1-18. Device Selection Window
  2. Select the intended device from the list.
    Figure 1-19. Device and Data Pattern (Programming File) Selection
  3. Click Data Pattern.
    1. To open a file, click Open.
    2. To search a file, click Browse.
    3. Select the file to load.
    4. Select the appropriate settings.
    5. Click Open.
    6. Click OK.
    7. Click OK.
    Figure 1-20. Loading Programming File
  4. On the Program tab, select the appropriate settings for device operations.
    Figure 1-21. Program Tab
  5. On the Quantity field, select the number of devices to program.
    1. Place the first device in the programming adapter module.
    2. Click Program.
    3. If the quantity field is set greater than one, on the SS4 programmer, press the START push button.
    Figure 1-22. START Push Button
  6. After the green Pass or red Fail LED is lit, place another device (if the quantity field is greater than 1) in the programming adapter module.
  7. On the programmer, press the START push button.

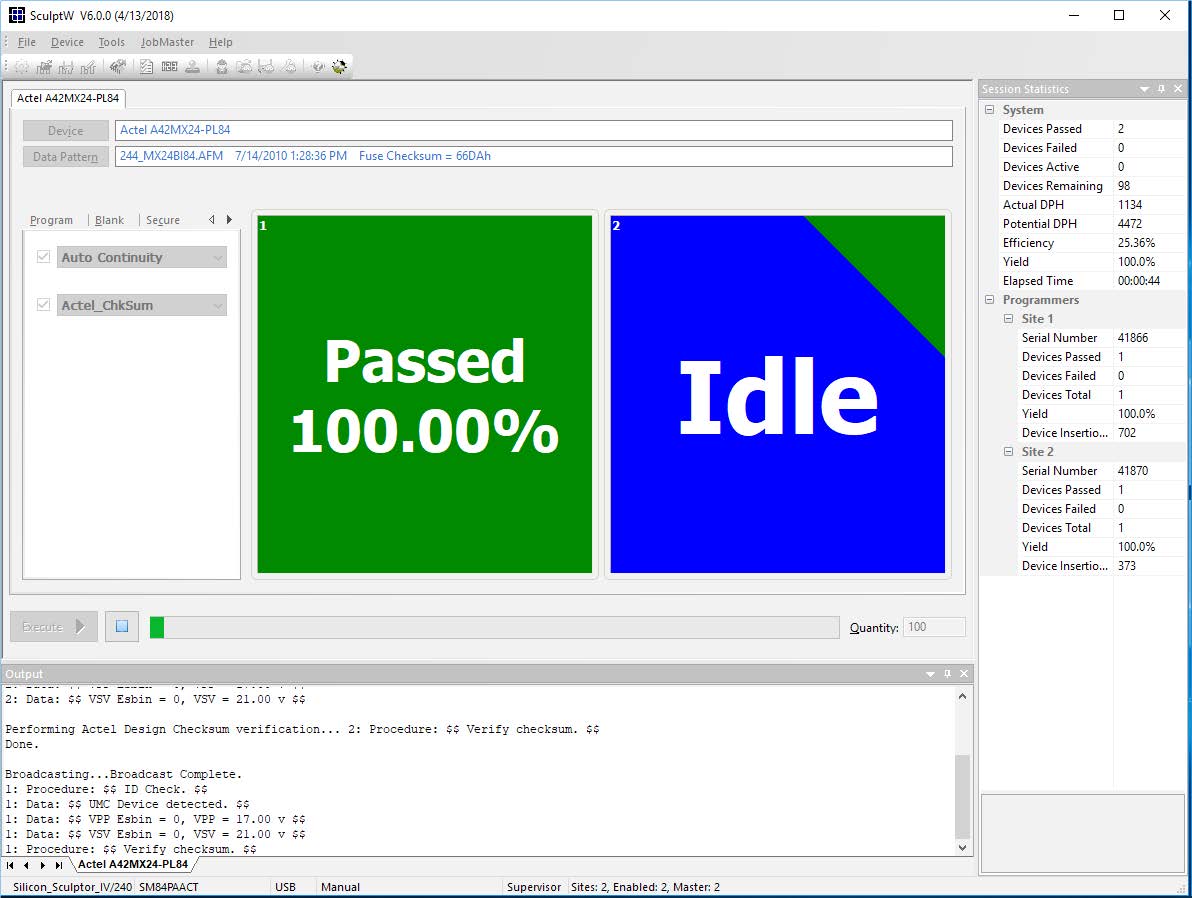

    The following figure shows the output after programming the device.

    Figure 1-23. Output—Programing Device
