1.1 Initial Setup for Silicon Sculptor 4

To make the initial setup for Silicon Sculptor 4, perform the following steps:
  1. Download the latest version of the Silicon Sculptor software (SculptW) from Microchip website.
  2. Install SculptW using the admin login and restart the PC.
  3. Connect the accompanying 24V switching power supply to the programmer.
    DANGER: If the accompanying power supply is lost or damaged, contact Microchip for a replacement. Using an incompatible power supply may cause damage to the programmer.
  4. To the back of the programmer, connect the USB cable to type-B USB port.
  5. Connect the USB cable to type-A USB port on PC. To verify the driver installation, see the on-screen information.
    Important: The Found New Hardware Wizard launches for the connected SS4 programmer. After installing the USB drivers, the PC recognizes that the SS4 programming site is connected at a later time. If a different USB port on the PC is used, the Found New Hardware Wizard launches and installs new USB drivers.
  6. After the USB driver installation, click Finish.

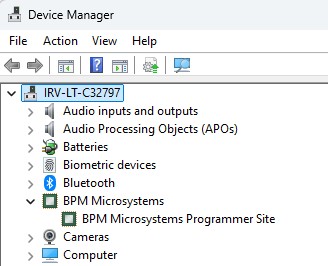

    Figure 1-1. Device Manager after USB Driver Installation
  7. Verify that all USB drivers are loaded correctly, recognized by Windows®. The programmer sites will be listed in Windows Device Manager. Perform the following steps to verify the USB drivers:
    1. Go to Device Manager.

      The BPM Microsystems appears in the list as shown in the preceding figure.

    2. Expand the BPM Microsystems node.

      There must be a BPM Microsystems programmer site for the programmer attached.
