The MPLAB® ICE 4 Breakout Board (AC244141) can be used to facilitate connections between the MPLAB ICE 4

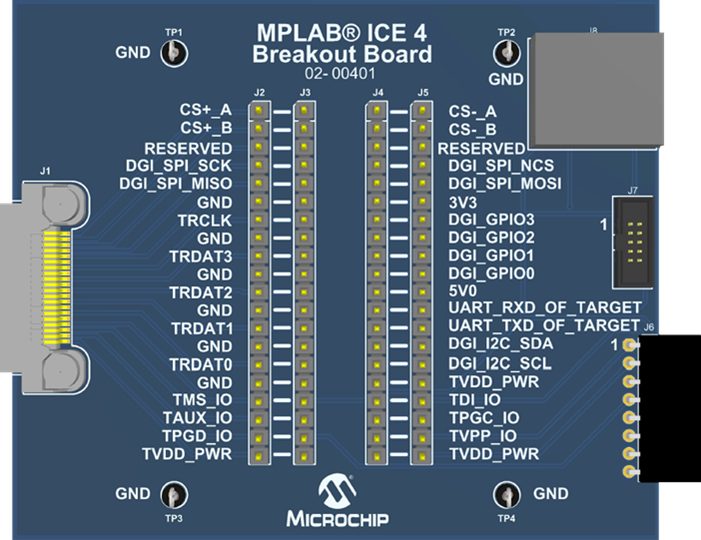

in-circuit emulator and target, which other connectors do not provide.Figure 2-1. MPLAB ICE 4 Breakout Board

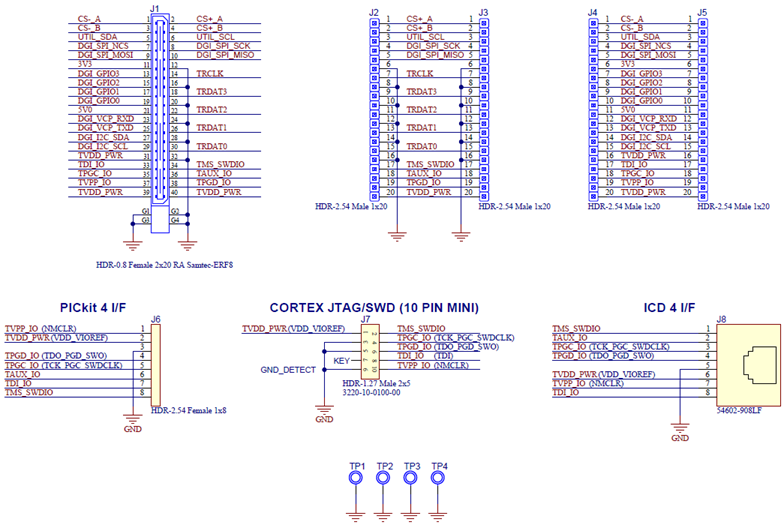

Figure 2-2. MPLAB ICE 4 Breakout Board Schematic
