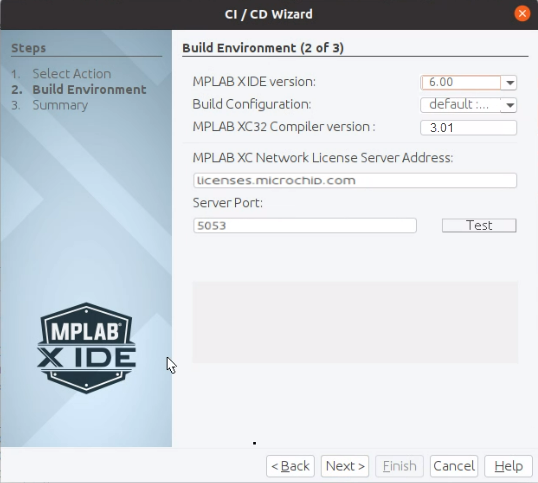

1.6.2.2 CI/CD Wizard Dialog 2 - Docker Only

Set up the build environment to be used in a container. If you have a Network Server license, you can provide information on how to access it for the build. Otherwise leave the text boxes blank (though a note will appear).

OptionDescription
MPLAB IDE versionSelect supported versions from the drop-down list. Default is the latest version.
Build ConfigurationSelect a project configuration for the build
MPLAB XC Compiler versionSelect a compiler version for the build
MPLAB XC Network License Server AddressEnter the address of the server. For example:

licenses.microchip.com

Server PortEnter the port number of the server. For example:

5053

Informational Note (conditional)If you have a Workstation license, information on buying a Network Server license will be shown.
