To connect to WiFi with the CryptoAuth Trust Platform kit,
it is recommended to combine the mikroElektronika WiFi 7 Click
board with the CryptoAuth Trust Platform. The
WiFi 7 Click board contains the Microchip ATWINC1510-MR210PB module, which supports IEEE® 802.11 b/g/n protocols. The Click board connects to the Trust
Manager board via the mikroBUS™ extension header and communicates
with the on-board SAMD21E18A microcontroller through the SPI interface.
Specific TPDS use cases were developed to support the development of applications
operating with the Kudelski SaaS IoT infrastructure and tools. Power for the WiFi 7
board is provided through the mikroBUS extension header, and power to the overall system

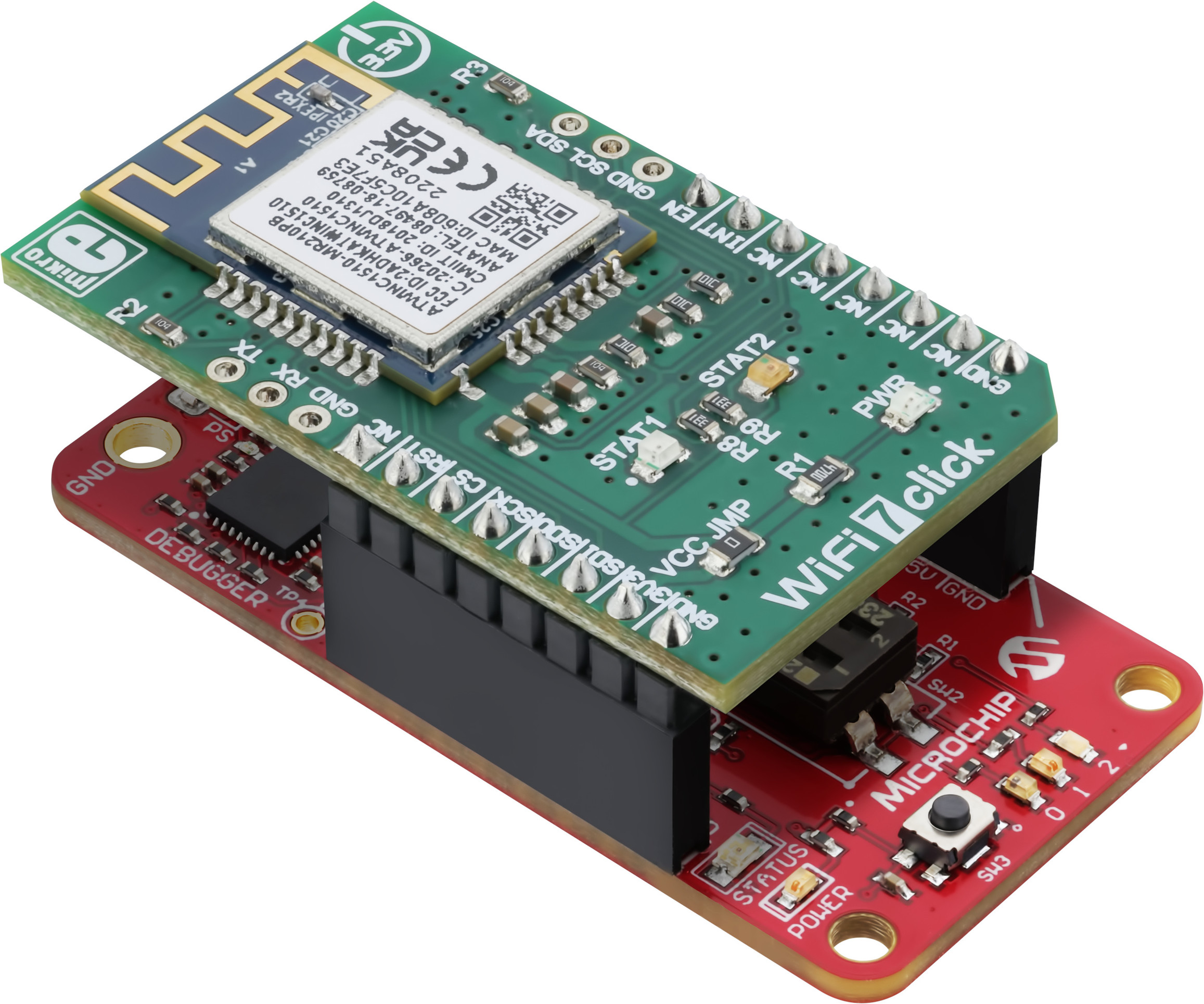

only requires the USB power connector. A view of the Trust Manager board with the WiFI 7
Click board connected is shown below.Figure 2-1. CryptoAuth Trust Platform + WiFi 7 Click Board
