1.8 Configuring the SAM 9x60 EK Board

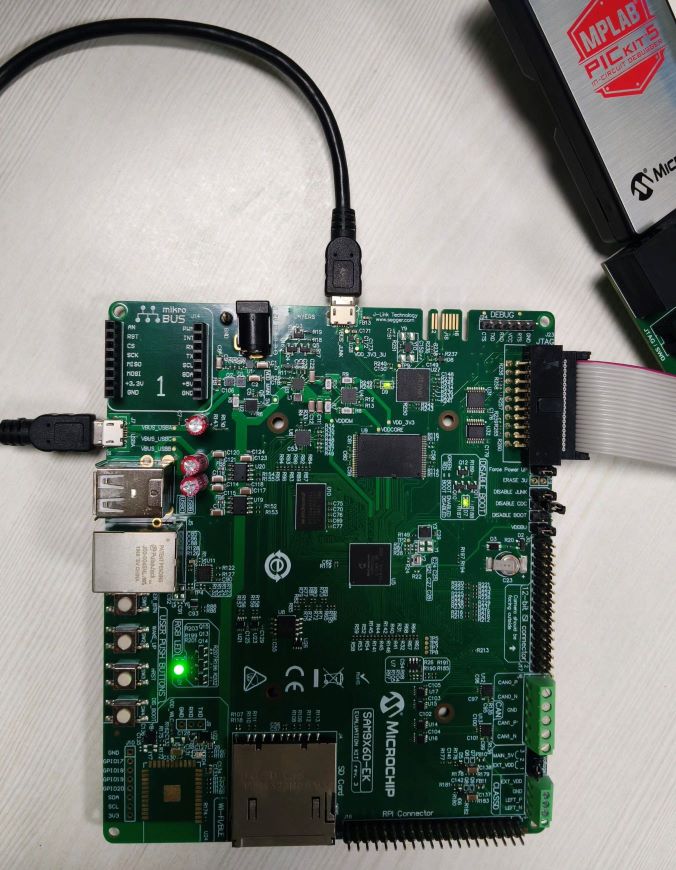

Refer to the following image to see where to connect the cables.
- Connect micro USB cable to J7 USB power port.
- Connect the Debugger to the J23 JTAG interface.
- Connect micro USB to J22 for the serial console.
