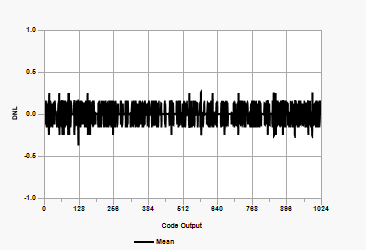

Figure 42-1. ADC, DNL,
VDD = 3.0V, TAD = 1 μs
|

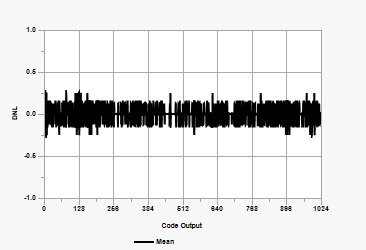

Figure 42-2. ADC, DNL,
VDD = 3.0V, TAD = 4 μs
|
Figure 42-3. ADC, DNL,
VDD = 3.0V, TAD = 8 μs
|

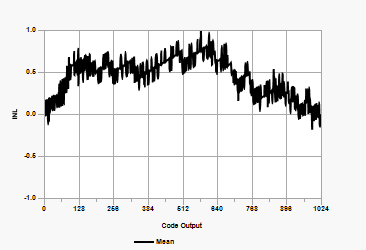

Figure 42-4. ADC, INL,
VDD = 3.0V, TAD = 1 μs
|

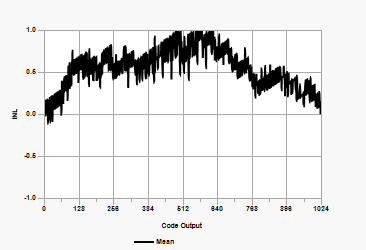

Figure 42-5. ADC, INL,
VDD = 3.0V, TAD = 4 μs
|

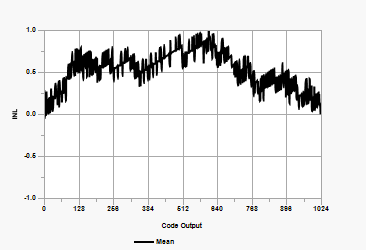

Figure 42-6. ADC, INL,
VDD = 3.0V, TAD = 8 μs
|
