42.11 IPD Graphs

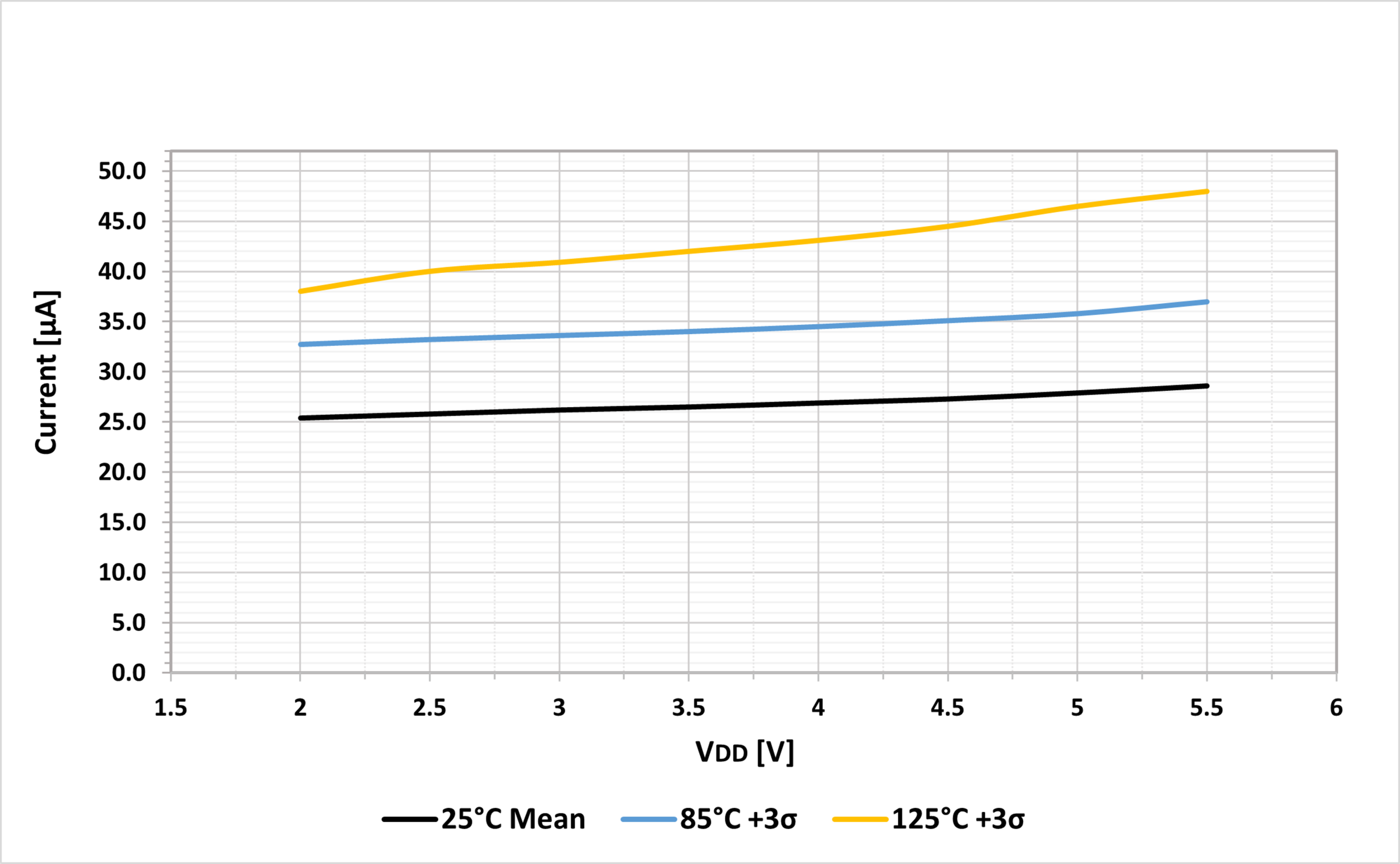

Figure 42-39. IPD Base
Figure 42-40. IPD ADC (ADC is non-converting)
Figure 42-41. IPD, Brown-out Reset (BOR)
Figure 42-42. IPD, Comparator (SP = 1, CPON = 00)
Figure 42-43. IPD, Comparator (SP = 0, CPON = 00)
Figure 42-44. IPD, Fixed Voltage Reference Buffer 1 (ADFVR)
Figure 42-45. IPD, Fixed Voltage Reference Buffer 2 (CDAFVR)
Figure 42-46. IPD Secondary Oscillator (SOSC)
Figure 42-47. IPD, Watchdog Timer (WDT)
