2 Example Circuit

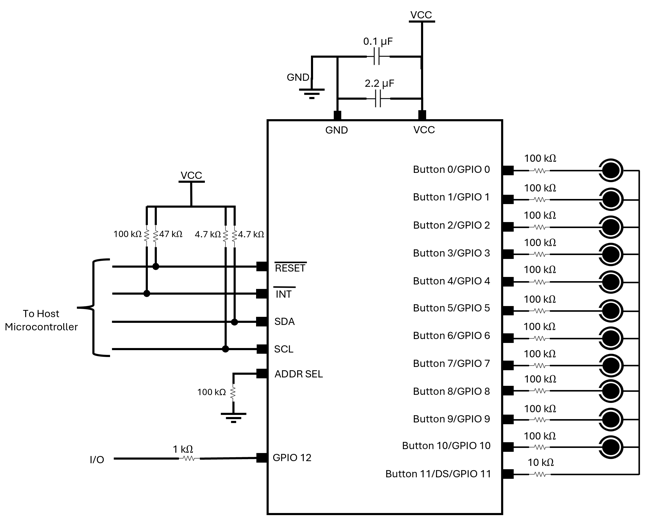

12 Buttons with Driven Shield+

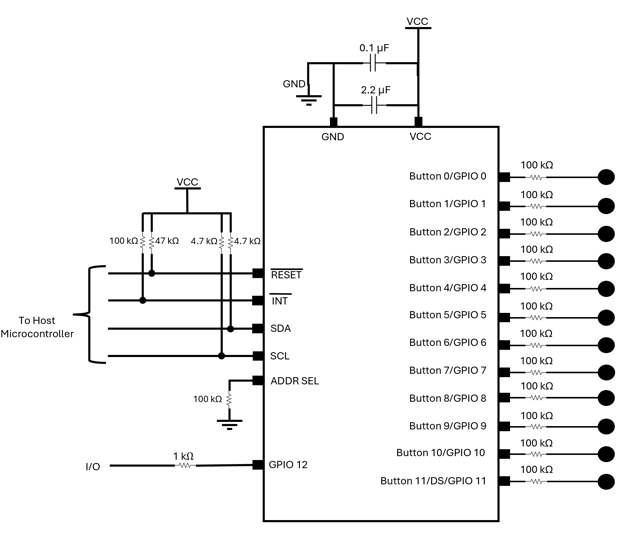

11 Buttons with one Dedicated Driven Shield
Button 11 functions as a dedicated Driven Shield (DS).
Note: Refer to section "Device Address" to configure the
device address.
Button 11 functions as a dedicated Driven Shield (DS).
