5 Appendix 2 - DDR3 Configuration

If you are using Rev F kit, the following are the configurations for DDR3 controller with the initialization and timing parameters for MT41K512M8DA-107: P part present on the Rev F PolarFire Evaluation kit.

  1. On General tab, set CCC PLL Clock Multiplier to 8, DQ Width as 16, and Column Address Width as 10, as shown in following figure. The clock multiplier value of 8 sets the CCC PLL reference clock frequency to 83.333 MHz.
A reference clock of this frequency is required for the PLL present inside the DDR3 subsystem. The PLL generates a 666.666 MHz DDR3 memory clock frequency and a 166.666 MHz DDR3 AXI clock frequency. The DQ Width is set to 16 to match the width of the DDR3 memory present on the board.
    Figure 5-1. General Tab

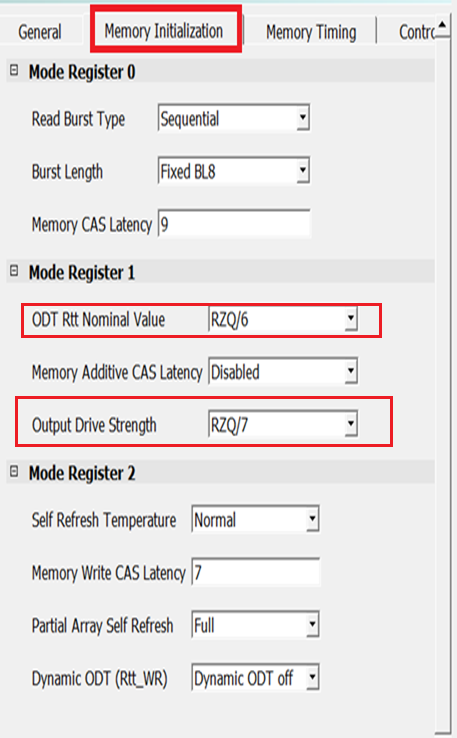

  2. On the Memory Initialization tab, set the initialization configuration settings for the DDR3 memory as shown in the following figure.
    Figure 5-2. Memory Initialization

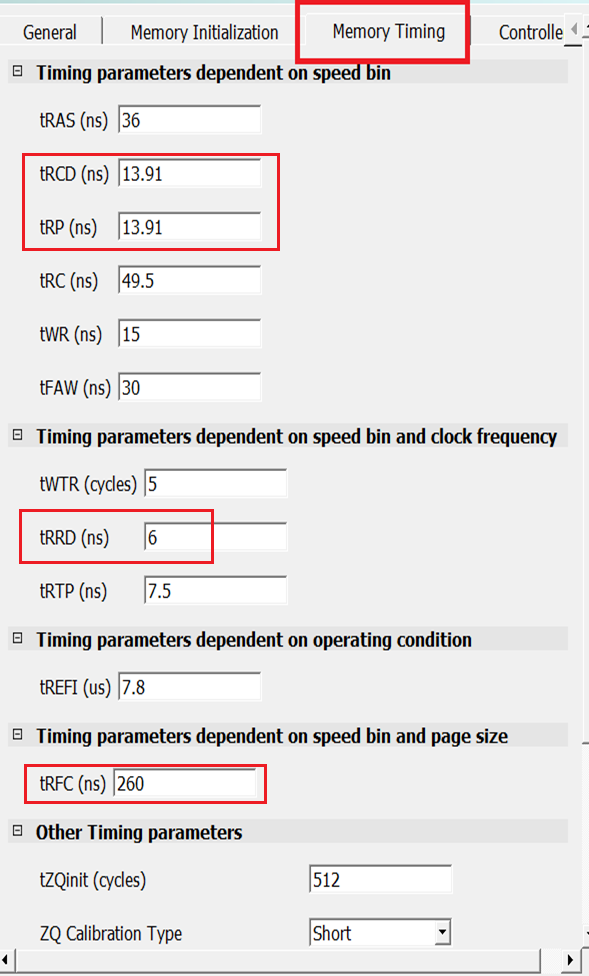

  3. On the Memory Timing tab, set the timing configuration settings for the DDR3 memory as shown in the following figure.
    Figure 5-3. Memory Timing

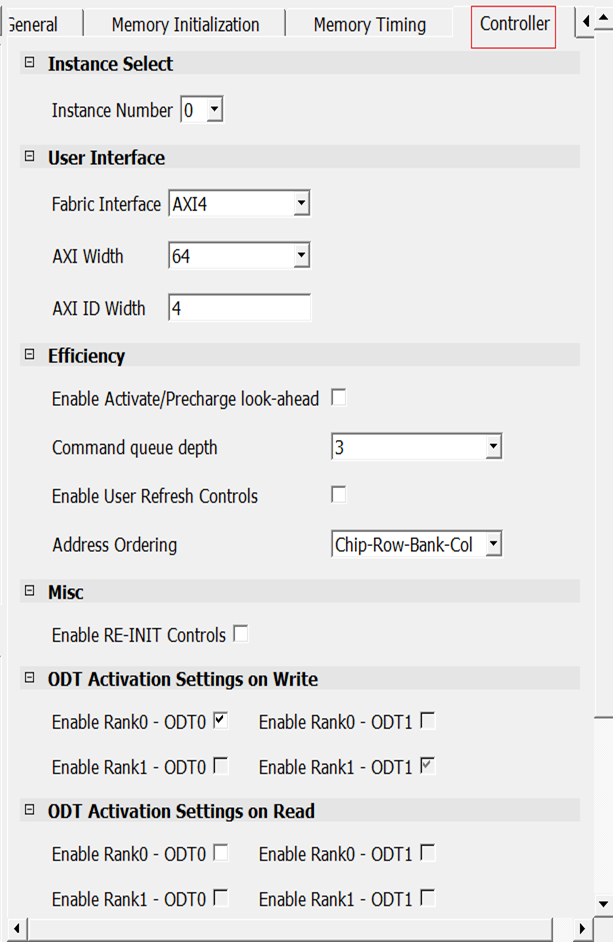

  4. On the Controller tab, set the controller configuration settings for the DDR3 memory as shown in the following figure.
    Figure 5-4. Controller

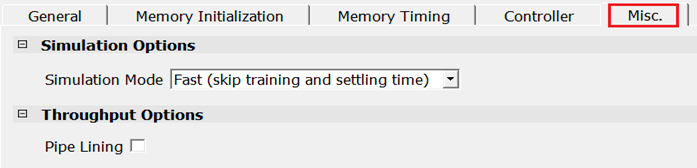

  5. On the Misc. tab, set the miscellaneous configuration settings for the DDR3 memory as shown in the following figure.
    Figure 5-5. Misc
