2.5.1 Staging Image ID

This component allows the user to configure the image ID for the staging area.

Description: The field represents the image ID for the spare image space that the user intends to use as a staging area. The bootloader downloads the image to the staging area after receiving data from the host, performs a verification on the data, and copies it to the desired location.

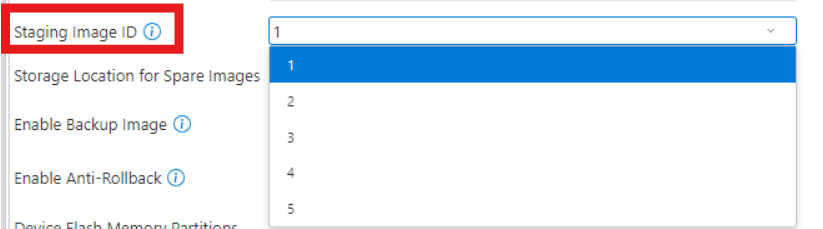

Example: To configure this setting, select the desired ID from the drop-down box which lists all available IDs. The input box contains a number in decimal format.
