1.7 UDP Bootloader

The UDP bootloader Library can be used to upgrade firmware on a target device without the need for an external programmer or debugger.

Features

  • Supported on Cortex-M and MIPS based MCUs
  • Uses Harmony 3 TCIP Stack to communicate
  • Supports Live update
  • Takes Normalized Hex File as input
  • Uses Unified Host application to receive the hex file from Host PC

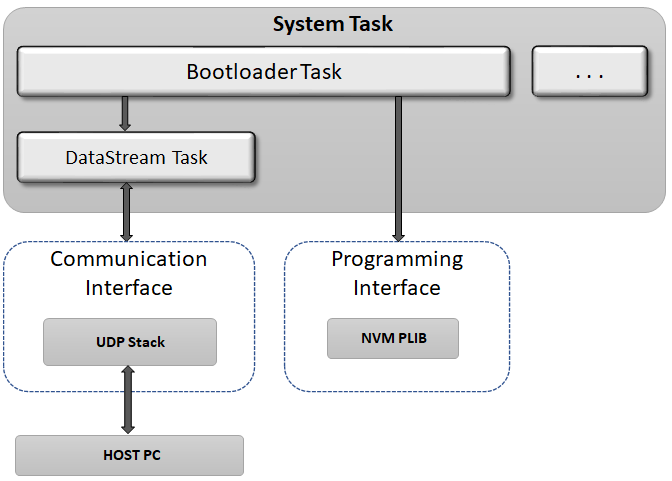

UDP Bootloader Block Diagram

The Bootloader framework is divided into 2 sub-systems.

  • Bootloader Task:

    • Erases the Flash memory

    • Programs the hex file records into Flash memory

    • Computes a CRC check of the Application in Program Memory

    • Jumps to the Application

    • Calls the DataStream Task at end of its every state machine execution

    • This Task routine takes an interface-agnostic approach to the actual communication medium

    • Runs in Cooperative mode with other tasks in the system

  • Datastream Task:

    • This Task implements the UDP communication interface to the receive the hex file from the Unified Host Application running on Host PC

    • This Task is called from Bootloader Task routine
