5.1 48-pin TQFP and 48-pin VQFN

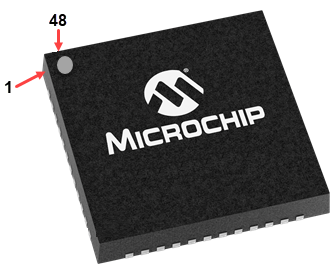

48-pin VQFN and 48-pin TQFP (Top View) (1)

PIC32CM5112SG00048

PIC32CM5112GC00048

TQFP

VQFN

Note:
  1. The VQFN package has wettable flanks.
Table 5-1. 48-pin VQFN and 48-pin TQFP
PinMUXEN=0Priority

Function

MUXEN=1SupplyReset

State

PMUX Values
0x00x10x30x50x70x80xA0xF
EICACADCADCNSERCOMTCCCANCCLGCLKPTC
1PA00- EXTINT[0]- - - SERCOM3/PAD[1]TCC5/WO[1]CAN1/RXCCL0/IN[6] -XY[4]VDDIOHi-Z
2PA01- EXTINT[1]CMP[0]- - SERCOM3/PAD[2]TCC6/WO[0]CAN1/TXCCL0/IN[7]- XY[5]VDDIOHi-Z
3PA02- EXTINT[2]CMP[1]- - SERCOM3/PAD[3]TCC6/WO[1]- CCL0/OUT[2]- XY[6]VDDIOHi-Z
4PA03- EXTINT[3]- AIN[0]- SERCOM4/PAD[0]- - - - XY[7]VDDIOHi-Z
5PA04- EXTINT[4]- AIN[1]ANN[0]SERCOM4/PAD[1]- - - - XY[8]VDDIOHi-Z
6VDDIO- - - - - - - - - - - - -
7VSS- - - - - - - - - - - - -
8PA05- EXTINT[5]- AIN[2]- SERCOM4/PAD[2]- - CCL1/OUT[2]- XY[9]VDDIOHi-Z
9PA06- EXTINT[6]- AIN[3]ANN[2]SERCOM4/PAD[3]- - CCL1/IN[7]- XY[10]VDDIOHi-Z
10PA07RTC/IN[0]EXTINT[7]AIN[0]AIN[4]- - - - - - XY[11]VDDIOHi-Z
11PA08RTC/IN[1]EXTINT[8]AIN[1]AIN[5]ANN[4]- - - - - XY[12]VDDIOHi-Z
12PA09RTC/IN[2]EXTINT[9]- AIN[6]VREFH- - - CCL1/IN[6]- XY[13]VDDIOHi-Z
13PB00RTC/IN[3]EXTINT[0]AIN[2]AIN[7]- - - - CCL1/OUT[3]- XY[14]VDDIOHi-Z
14AVDD- - - - - - - - - - - - -
15AVSS/VSSREG- - - - - - - - - - - - -
16PB01XIN32EXTINT[1]- - - - - - - - - VDDIOHi-Z
17PB02XOUT32EXTINT[2]- - - - - - - - - VDDIOHi-Z
18VDDIO- - - - - - - - - - - - -
19VSS- - - - - - - - - - - - -
20VDDREG- - - - - - - - - - - - -
21PB03RTC/OUT[0]EXTINT[3]AIN[3]AIN[8]- SERCOM5/PAD[0]- - CCL1/IN[10]- XY[15]VDDIOHi-Z
22PB04RTC/OUT[1], SUPC/OUT[0]EXTINT[4]- AIN[9]- SERCOM5/PAD[1]- - CCL1/IN[9]- XY[16]VDDIOHi-Z
23PB05RTC/OUT[2], SUPC/OUT[1]EXTINT[5]- AIN[10]- SERCOM5/PAD[2]- - CCL0/IN[9]- XY[17]VDDIOHi-Z
24PB06RTC/OUT[3]EXTINT[6]- AIN[11]- SERCOM5/PAD[3]- - CCL0/IN[10]IO[0]XY[18]VDDIOHi-Z
25PC00- EXTINT[0]- - - SERCOM0/PAD[0]TCC0/WO[0]- CCL0/OUT[3]IO[1]XY[19]VDDIOHi-Z
26PC01- EXTINT[1]- - - SERCOM0/PAD[1]TCC0/WO[1]CAN0/RXCCL0/IN[0]IO[2]XY[20]VDDIOHi-Z
27PC02- EXTINT[2]- - - SERCOM0/PAD[2]TCC1/WO[0]CAN0/TXCCL0/IN[1]IO[3]XY[21]VDDIOHi-Z
28PC03- EXTINT[3]- - - SERCOM0/PAD[3]TCC1/WO[1]- CCL0/OUT[0]IO[4]ECI[0]VDDIOHi-Z
29PC04- EXTINT[4]- - - SERCOM2/PAD[0]TCC2/WO[0]- CCL1/IN[0]IO[5]ECI[1]VDDIOHi-Z
30RESET- - - - - - - - - - - VDDIOI - PU
31VDDIO- - - - - - - - - - - - -
32VSS- - - - - - - - - - - - -
33PC05TDOEXTINT[5]- - - SERCOM1/PAD[3]TCC2/WO[1]CAN1/RXCCL1/IN[1]IO[1]- VDDIOHi-Z
34PC06TDIEXTINT[6]- - - SERCOM1/PAD[2]- CAN1/TXCCL1/OUT[0]- - VDDIOHi-Z
35-TMS/SWDIO- - - - - - - - - - VDDIOI - PU
36-TCK/SWCLK- - - - - - - - - - VDDIOI - PU
37PD00- NMI- - - SERCOM1/PAD[1]TCC3/WO[0]- CCL0/IN[3]- - VDDIOHi-Z
38PD01- EXTINT[1]- - - SERCOM1/PAD[0]TCC3/WO[1]USB/SOF_1KHZCCL0/IN[4]- - VDDIOHi-Z
39PD02- - - - - - - USB/DM- - - VDDIOHi-Z
40PD03- - - - - - - USB/DP- - - VDDIOHi-Z
41VSS- - - - - - - - - - - - -
42VDDIO- - - - - - - - - - - - -
43PD06USERLDO- - - - SERCOM2/PAD[1]- CAN0/RXCCL1/IN[3]- XY[0]VDDIOHi-Z
44PD07- EXTINT[4]- - - SERCOM2/PAD[2]TCC4/WO[0]- CCL1/IN[4]- XY[1]VDDIOHi-Z
45PD04OSCCTRL/XOUTEXTINT[2]- - - - - - - IO[1]- VDDIOHi-Z
46PD05OSCCTRL/XINEXTINT[3]- - - - - - - IO[0]- VDDIOHi-Z
47PD08- EXTINT[5]- - - SERCOM2/PAD[3]TCC4/WO[1]CAN0/TXCCL0/OUT[1]- XY[2]VDDIOHi-Z
48PD09- EXTINT[6]- - - SERCOM3/PAD[0]TCC5/WO[0]- CCL1/OUT[1]- XY[3]VDDIOHi-Z
