2.2.4.5 Multichannel Metrology Driver Configurations

Multichannel Metrology Driver is configured through its MCC component.

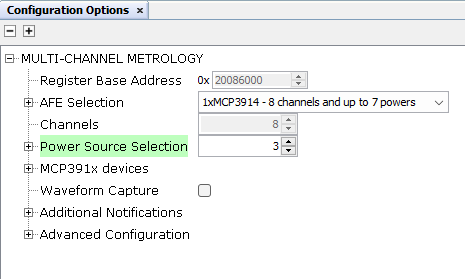

Figure 2-48. Mulltichannel Metrology Driver Configuration Overview
A default configuration is provided to handle 3 Voltage channels, 5 Current channels and 3 Powers.

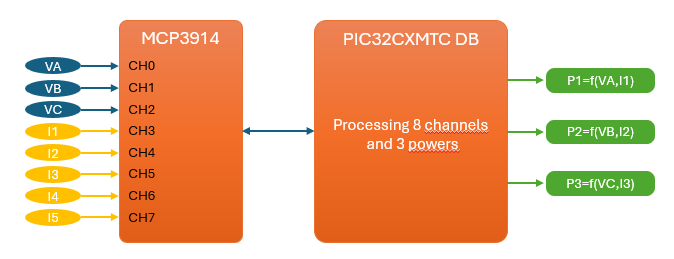

Figure 2-49. Multichannel Driver Default Configuration

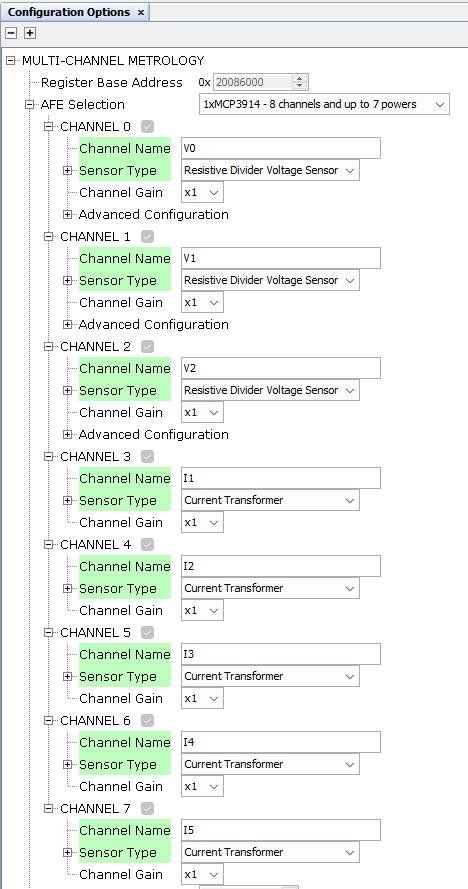

Figure 2-50. Channels Configuration

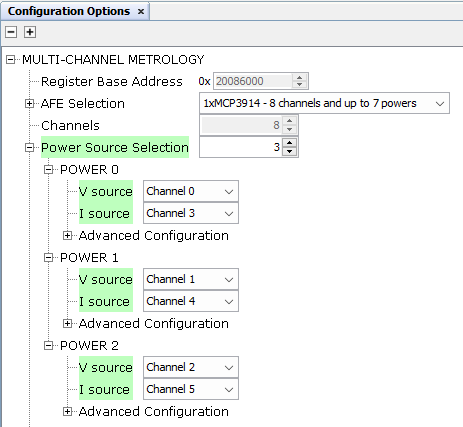

Figure 2-51. Power Source Configuration

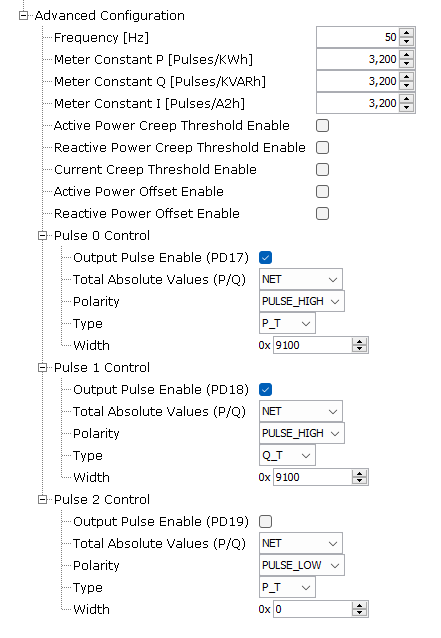

Figure 2-52. Advanced Configuration
