4.4 SW_CPU_REGISTER_TEST_01

This module contains functional safety diagnostics APIs for CPU Registers .

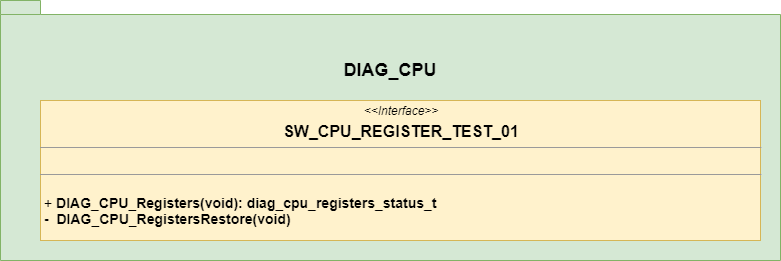

The following is an UML Interface diagram for SW_CPU_REGISTER_TEST_01:

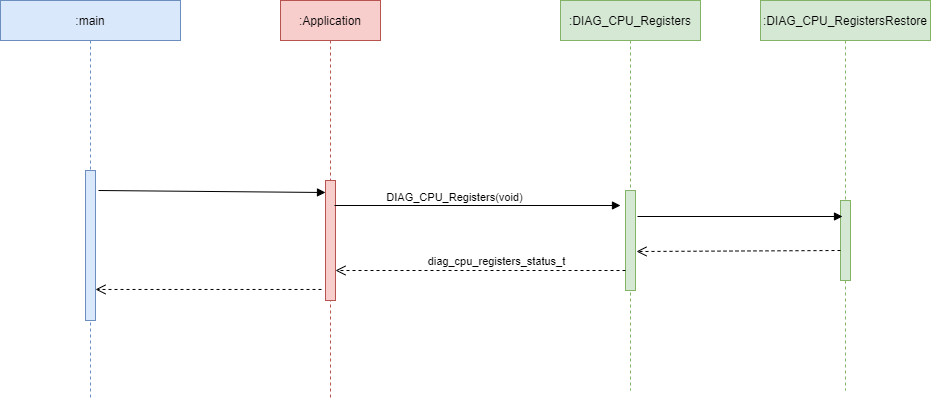

The following is an UML Sequence diagram for SW_CPU_REGISTER_TEST_01:
