8.2.3 RFD Project Verification
LED Indications :
The table below details the different LED combinations and their corresponding activities
in the RFD device.
| LED Indication | Activity/Status Description |
|---|---|
| Quick green flash (RGB LED) | RFD has received queued data from the coordinator. |
| Quick blue flash (user LED) | RFD has sent push data to the coordinator. |

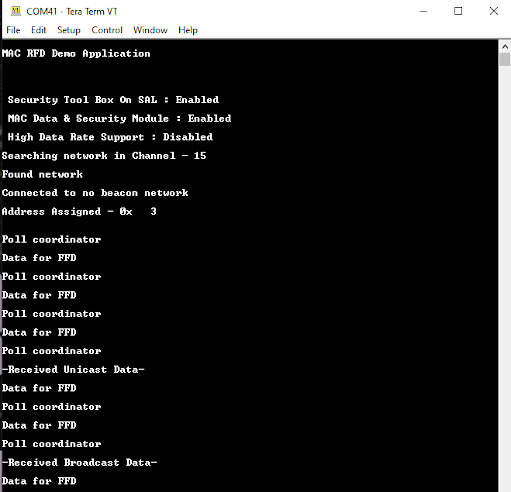

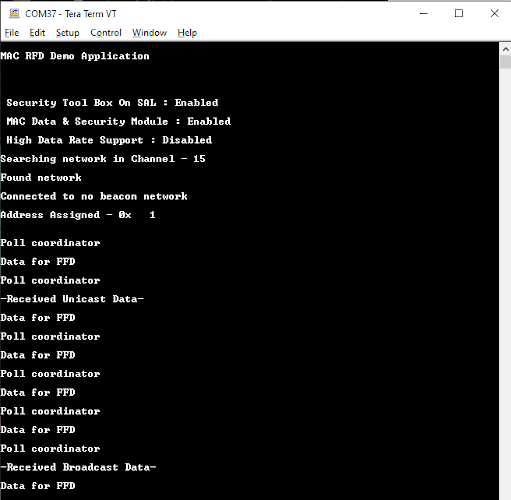

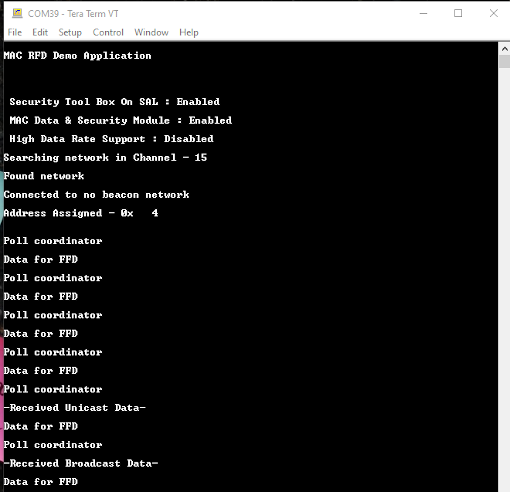

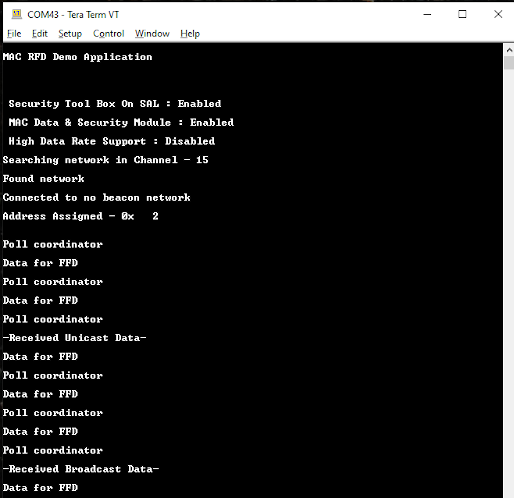

The figures illustrate the output generated by the end device in the Push Pull Star application.
