4.3 32-pin VQFN/32-pin TQFP Pinout and Multiplexing

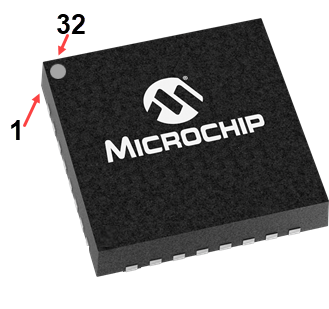

PIC32CM3204GV00032 PIC32CM1602GV00032	32-pin VQFN Top View	32-pin TQFP Top View

Table 4-4. 32-pin VQFN/32-pin TQFP Pinout
Pin	MUXEN = 0	MUXEN = 1													Supply
	MUXEN = 0	PMUX Values
	Port	00	01					02	03	04	05	06	07
	Port	EIC	REF	ADC	PTC	DAC	AC	SERCOM	SERCOM-ALT	TC	TC-ALT	COM	AC / GCLK	SYSCTRL
1	PA00	EXTINT[0]	—	—	—	—	—	—	SERCOM1/PAD[0]	—	TC2/WO[0]	—	—	XIN32	AVDD
2	PA01	EXTINT[1]	—	—	—	—	—	—	SERCOM1/PAD[1]	—	TC2/WO[1]	—	—	XOUT32	AVDD
3	PA02	EXTINT[2]	—	AIN[0]	Y[0]	VOUT	—	—	—	—	—	—	—	—	AVDD
4	PA03	EXTINT[3]	ADC/VREFA DAC/VREFA	AIN[1]	Y[1]	—	—	—	—	—	—	—	—	—	AVDD
5	PA04	EXTINT[4]	ADC/VREFB	AIN[4]	Y[2]	—	AIN[0]	—	SERCOM0/PAD[0]	—	TC0/WO[0]	—	—	—	AVDD
6	PA05	EXTINT[5]	—	AIN[5]	Y[3]	—	AIN[1]	—	SERCOM0/PAD[1]	—	TC0/WO[1]	—	—	—	AVDD
7	PA06	EXTINT[6]	—	AIN[6]	Y[4]	—	AIN[2]	—	SERCOM0/PAD[2]	—	TC1/WO[0]	—	—	—	AVDD
8	PA07	EXTINT[7]	—	AIN[7]	Y[5]	—	AIN[3]	—	SERCOM0/PAD[3]	—	TC1/WO[1]	—	—	—	AVDD
9	AVDD	—	—	—	—	—	—	—	—	—	—	—	—	—	—
10	GND	—	—	—	—	—	—	—	—	—	—	—	—	—	—
11	PA08	NMI	—	AIN[16]	X[0]	—	—	SERCOM0/PAD[0]	SERCOM2/PAD[0]	TC0/WO[0]	—	—	—	—	VDDIO
12	PA09	EXTINT[9]	—	AIN[17]	X[1]	—	—	SERCOM0/PAD[1]	SERCOM2/PAD[1]	TC0/WO[1]	—	—	—	—	VDDIO
13	PA10	EXTINT[10]	—	AIN[18]	X[2]	—	—	SERCOM0/PAD[2]	SERCOM2/PAD[2]	TC1/WO[0]	—	—	GCLK_IO[4]	—	VDDIO
14	PA11	EXTINT[11]	—	AIN[19]	X[3]	—	—	SERCOM0/PAD[3]	SERCOM2/PAD[3]	TC1/WO[1]	—	—	GCLK_IO[5]	—	VDDIO
15	PA14	EXTINT[14]	—	—	—	—	—	SERCOM2/PAD[2]	—	TC3/WO[0]	—	—	GCLK_IO[0]	XIN	VDDIO
16	PA15	EXTINT[15]	—	—	—	—	—	SERCOM2/PAD[3]	—	TC3/WO[1]	—	—	GCLK_IO[1]	XOUT	VDDIO
17	PA16	EXTINT[0]	—	—	X[4]	—	—	SERCOM1/PAD[0]	SERCOM3/PAD[0]	—	TC2/WO[0]	—	GCLK_IO[2]	—	VDDIO
18	PA17	EXTINT[1]	—	—	X[5]	—	—	SERCOM1/PAD[1]	SERCOM3/PAD[1]	—	TC2/WO[1]	—	GCLK_IO[3]	—	VDDIO
19	PA18	EXTINT[2]	—	—	X[6]	—	—	SERCOM1/PAD[2]	SERCOM3/PAD[2]	—	TC3/WO[0]	—	AC/CMP[0]	—	VDDIO
20	PA19	EXTINT[3]	—	—	X[7]	—	—	SERCOM1/PAD[3]	SERCOM3/PAD[3]	—	TC3/WO[1]	—	AC/CMP[1]	—	VDDIO
21	PA22	EXTINT[6]	—	—	X[10]	—	—	SERCOM3/PAD[0]	—	—	TC4/WO[0]	—	GCLK_IO[6]	—	VDDIO
22	PA23	EXTINT[7]	—	—	X[11]	—	—	SERCOM3/PAD[1]	—	—	TC4/WO[1]	—	GCLK_IO[7]	—	VDDIO
23	PA24	EXTINT[12]	—	—	—	—	—	SERCOM3/PAD[2]	—	—	TC5/WO[0]	—	—	—	VDDIO
24	PA25	EXTINT[13]	—	—	—	—	—	SERCOM3/PAD[3]	—	—	TC5/WO[1]	—	—	—	VDDIO
25	PA27	EXTINT[15]	—	—	—	—	—	—	—	—	—	—	GCLK_IO[0]	—	VDDIO
26	RESET	—	—	—	—	—	—	—	—	—	—	—	—	—	—
27	PA28	EXTINT[8]	—	—	—	—	—	—	—	—	—	—	GCLK_IO[0]	—	VDDIO
28	GND	—	—	—	—	—	—	—	—	—	—	—	—	—	—
29	VDDCORE	—	—	—	—	—	—	—	—	—	—	—	—	—	—
30	VDDIN	—	—	—	—	—	—	—	—	—	—	—	—	—	—
31	PA30	EXTINT[10]	—	—	—	—	—	—	SERCOM1/PAD[2]	—	TC1/WO[0]	SWCLK	GCLK_IO[0]	—	VDDIO
32	PA31	EXTINT[11]	—	—	—	—	—	—	SERCOM1/PAD[3]	—	TC1/WO[1]	SWDIO	—	—	VDDIO
Note: SERCOM4/SERCOM5 are not available on the VQFN32/TQFP32 packages. All analog pin functions are on the peripheral function 03. The peripheral function 03 must be selected to disable the digital control of the pin. Only some pins can be used in SERCOM I²C mode. Refer to the Type column for using a SERCOM pin in I²C mode. Refer to the Electrical Characteristics chapter for details on the I²C pin characteristics. TC6 and TC7 are not supported on the PIC32CM[3204/1602]GV032 (32-pin) and PIC32CM[3204/1602]GV048 (48-pin) devices. Refer to the Configuration Summary for details. The SWDIO function is only activated in the presence of a debugger.
