4.2.2 Connect the Motor to the Board

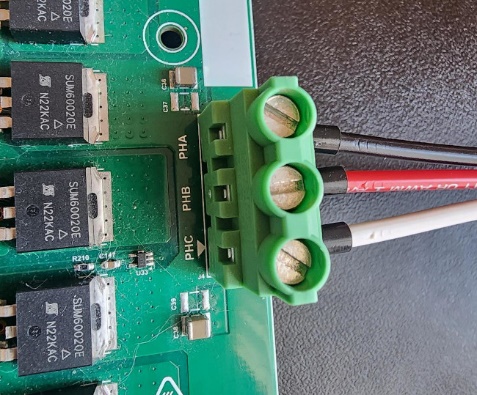

Figure 4-4. Three-Phase Motor Terminal Connector J4

Attach the three-phase wires from the motor to the PHA, PHB and PHC terminals of connector J4 on the MCLV-48V-300W Inverter Board. The convention typically used is shown in Table 4-1.

Table 4-1. Three-Phase Motor Terminal Connector J4
MCLV-48V-300W Board – J4 Connector	BLDC Hurst Motor
PHA	BLACK
PHB	RED
PHC	WHITE

While this convention is commonly followed, it is crucial to consult the motor's data sheet to confirm the correct wiring for your specific motor (For the motor in this guide, see Hurst Data Sheet). Proper wiring ensures optimal performance and prevents potential issues during operation.

Note: Make sure the motor does not have any load initially or an evenly loading disc.
