4.2.1 Connect the dsPIC Motor Control DIM

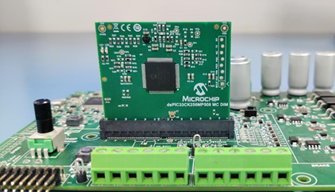

Carefully insert the dsPIC33CK256MP508 Motor Control DIM into the DIM Interface connector J8 on the MCLV-48V-300W Inverter Board, ensuring proper alignment and orientation for secure placement.
Carefully insert the dsPIC33CK256MP508 Motor Control DIM into the DIM Interface connector J8 on the MCLV-48V-300W Inverter Board, ensuring proper alignment and orientation for secure placement.
