3.2 Hardware Used

The following hardware was used to develop this example.

NumberHardware NameUsed ForDocumentation
1MPLAB ICE 4 Breakout Board (AC244141)Connecting any MPLAB ICE 4 communication pins to a target.This document.
2MPLAB ICE 4 in-circuit emulator (DV244140)Connecting to a network using Ethernet in support of CI/CI.MPLAB ICE 4 In-Circuit Emulator User’s Guide (DS-50003242), 3.2. “PC Connections” for information on connecting Ethernet mode. Also see 5.4. “CI/CD Support” for a brief discussion of using the emulator for CI/CD.
3SAME54 Xplained Pro Evaluation Kit (ATSAME54-XPRO)ATSAME54P20A microcontroller code development.ATSAME54 Xplained PRO User’s Guide
4Jumper wiresConnecting from the MPLAB ICE 4 breakout board to the Xplained PRO board.N/A

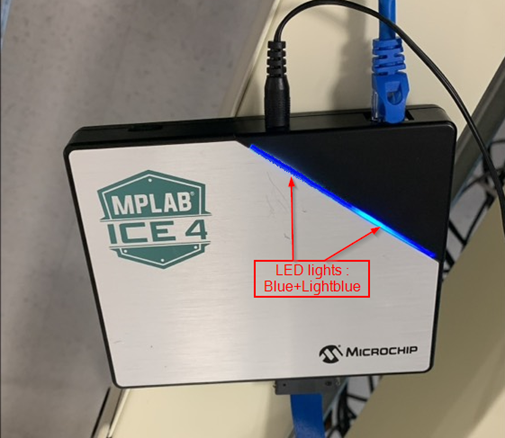

Figure 3-1. MPLAB ICE 4 in Ethernet Mode

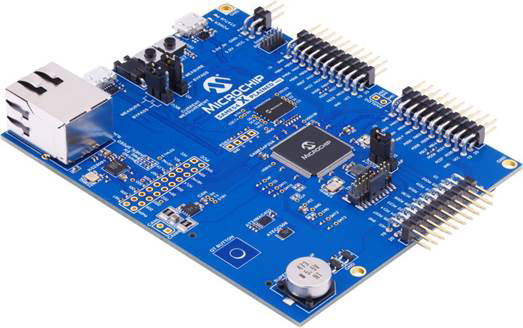

Figure 3-2. ATSAME54 Xplained PRO Board

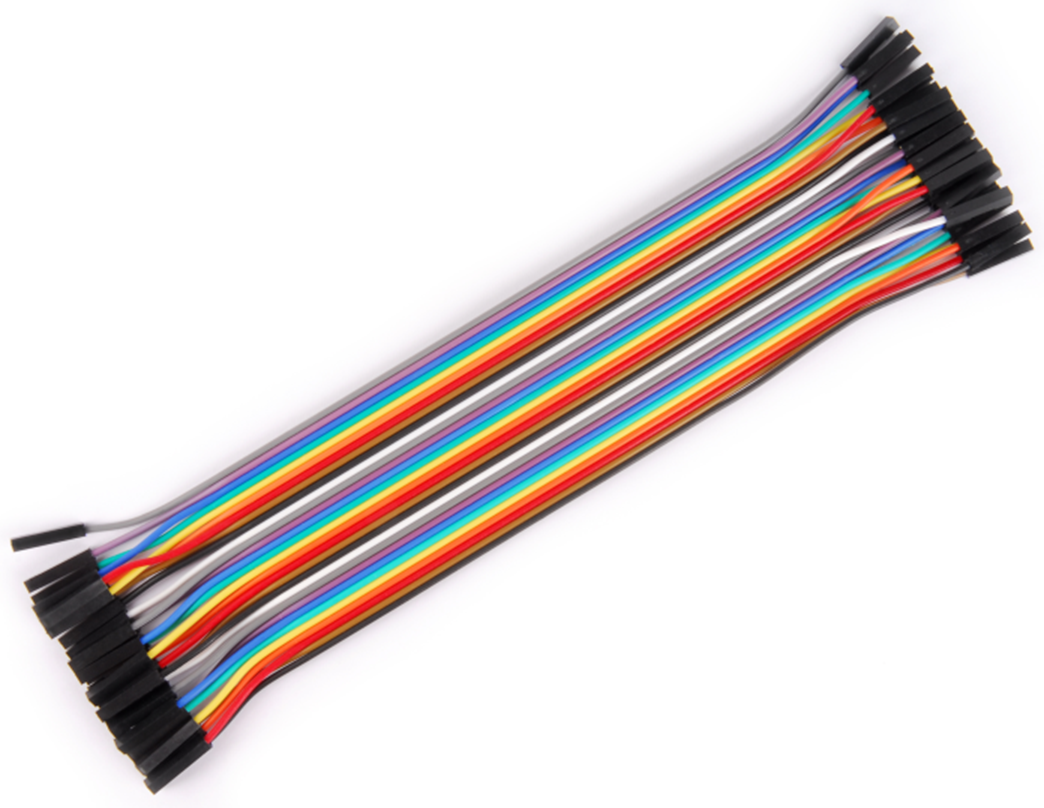

Figure 3-3. Jumper Wires
