2.5.2.1 Backup Image ID

This component allows the user to configure a spare image as a backup image.

Description: The field represents the image ID for the backup image space that the user intends to use store a backup image.

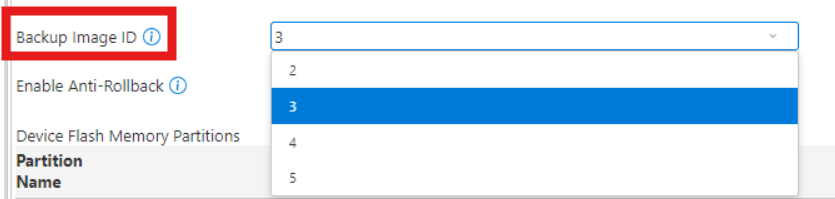

Example: To configure this setting, select the desired ID from the drop-down box which lists all available IDs. The input box contains a number in decimal format.

Note: Staging Image and Backup Image cannot have the same value.
