3.2.4 Reset Circuitry

The board features the following reset sources for the MPU:

• Power-on Reset from the power management unit MCP16502
• User push button reset
• External JTAG

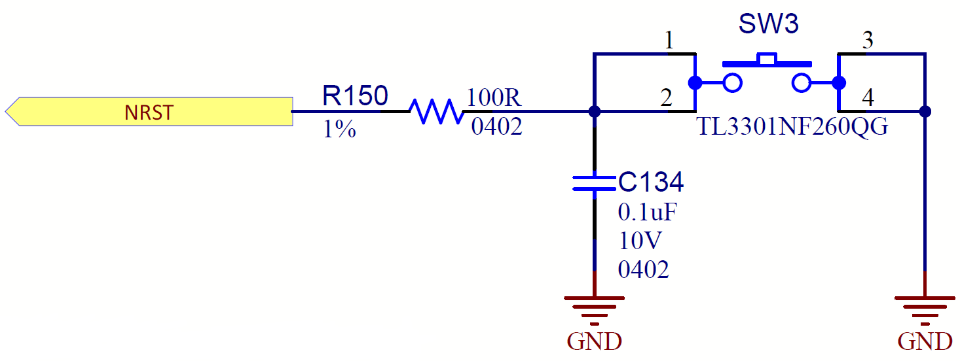

The following figure shows the user push button reset.
