1.8.2.2 File System Bootloader Firmware Update Mode Execution Flow

Bootloader Task Flow

• Erases the Flash memory

• Programs the binary into Flash memory

• Jumps to the Application

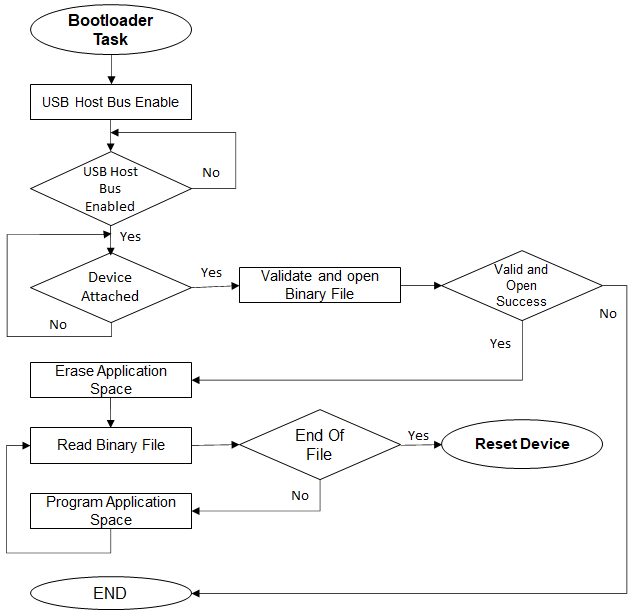

USB Host MSD Bootloader Task Flow

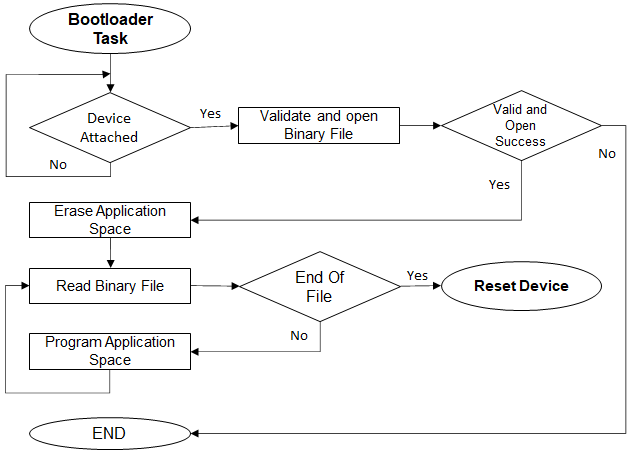

SD Card and Serial Memory Bootloader Task Flow
