3.2.1 Connecting the Flexible Flat Cable (FFC)

To connect the LCD module to the host board using the flexible flat cable (FFC), follow the sequence below:
  • First :
    • Connect the FFC to the LCD module as illustrated in Figure 3-2.
    • Ensure that the metallic fingers of the FFC are facing towards the interior of the board when the FFC is inserted in the header J1, as shown in Figure 3-2.
    • Verify that Pin 1 of the FFC is aligned with Pin 1 of the J1 connector of the AC69T88A board.

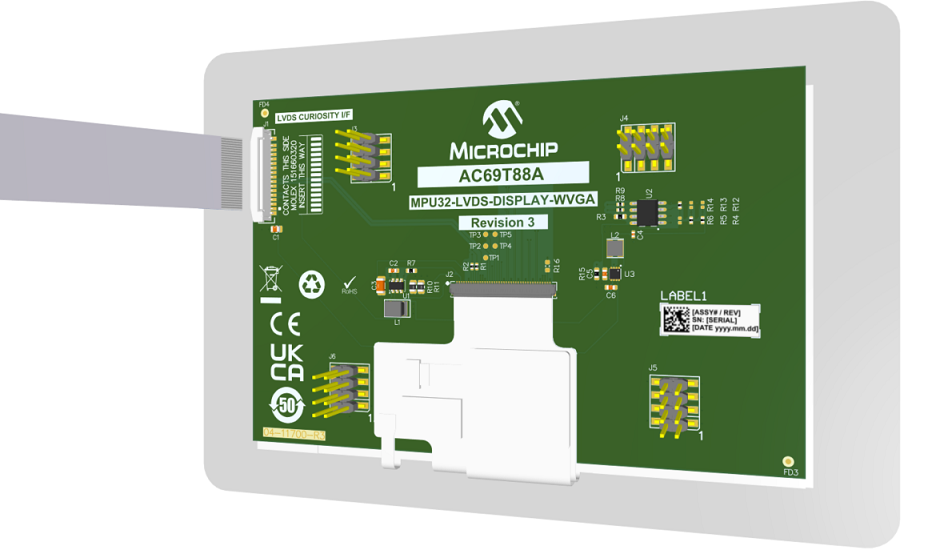

Figure 3-2. Connecting the FFC to the LCD Module
  • Second:
    • Connect the FFC to the host board as illustrated in Figure 3-3.
    • Ensure that the FFC metallic fingers are facing towards the outside of the board when it is inserted in the connector, as shown in Figure 3-3.
    • Verify that Pin 1 of the FFC is aligned with Pin 1 of the connector.

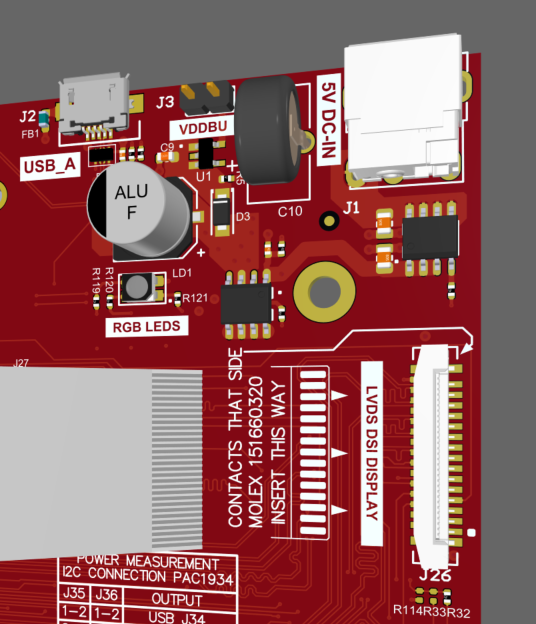

Figure 3-3. Connecting the FFC to the Curiosity Board
