3.3.6.2 ICSP Target Connection Circuitry

The figure below shows the interconnections of the MPLAB PICkit 5 In-Circuit Debugger to the ICSP connector on the target board. The diagram also shows the wiring from the connector to a device on the target PCB. A pull-up resistor (usually around 10-50 kΩ) is recommended to be connected from the V_PP/MCLR line to V_DD so that the line may be strobed low to reset the device.

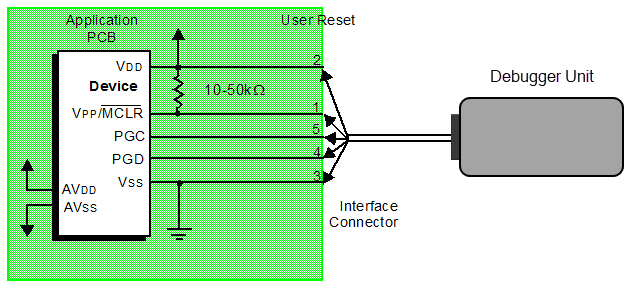

Figure 3-21. Standard Connection to Target Circuitry
