5.1 HCI Initialization

Perform the following steps for HCI initialization.

  1. Click rescan button to scan the serial port in PC.
  2. Select the COM Port.
  3. Select the Baud Rate.
  4. Click Open to open the Serial port for communication.

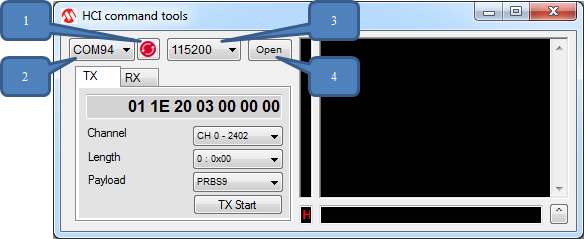

    Figure 5-2. HCI Command Initialization
  5. Select the baud rate as Custom and then DTR is enabled. Select DTR check box.

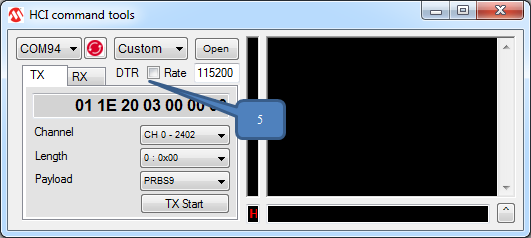

    Figure 5-3. Enable DTR
