3.6.1.3 Provisioning Webpage

The following table provides the command syntax for firmware upgrade (provisioning webpage).

Table 3-44. Firmware Upgrade (Provisioning Webpage): Before Initialization
Command SyntaxUpgrade_1500_provisioning webpage/ Upgrade_3400_provisioning_webpage
XX refers to Antenna
  • Upgrade_1500_provisioning_webpage - ATWINC1500
  • Upgrade_3400_provisioning_webpage - ATWINC3400
ExampleUpgarde_1500_provisioning_webpage

ATWINC1500 webpage update

The following figure shows the example of firmware upgrade (provisioning webpage).

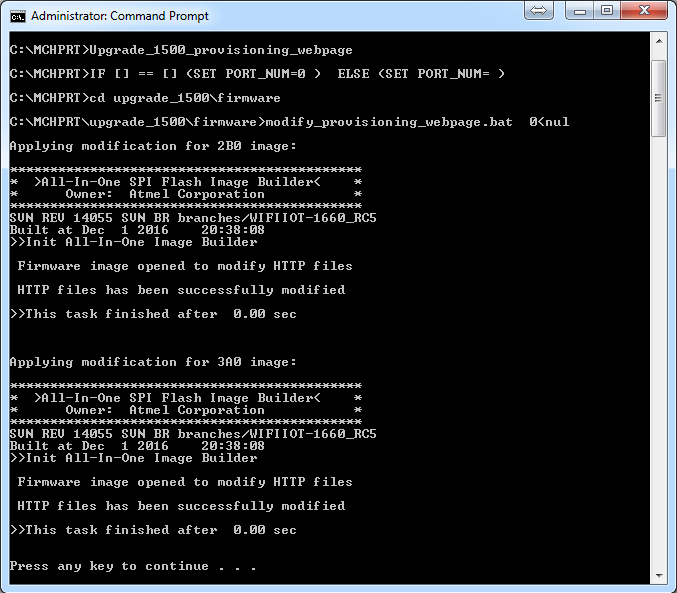

Figure 3-52. Console Log of Firmware Upgrade (Provisioning Webpage)
Note: ASF has the latest firmware. See Firmware upgrade folder in MCHPRT2 package, for information on how to add the upgrade file into MCHPRT2 tool folder.
Important: Before the Firmware upgrade, update the Firmware file in the following folder:
  • ..\MCHPRT\upgrade_1500\firmware\firmware (for ATWINC1500)
  • ..\MCHPRT\upgrade_3400\firmware\firmware (for ATWINC3400)
