3.6.1.2 Gain Table

The following table provides the command syntax for firmware upgrade (gain table).

Table 3-43. Firmware Upgrade (gain table): Before Initialization
Command Syntax Upgrade_1500_Gain/ Upgrade_3400_Gain
X X refers to Antenna
  • Upgrade_1500_Gain - ATWINC1500 FW upgrade
  • Upgrade_3400_Gain - ATWINC3400 FW upgrade
Example Upgarde_1500_Gain

ATWINC1500 FW upgrade starts and when completes it closes the command line

The following figure shows the example of firmware upgrade (gain table).

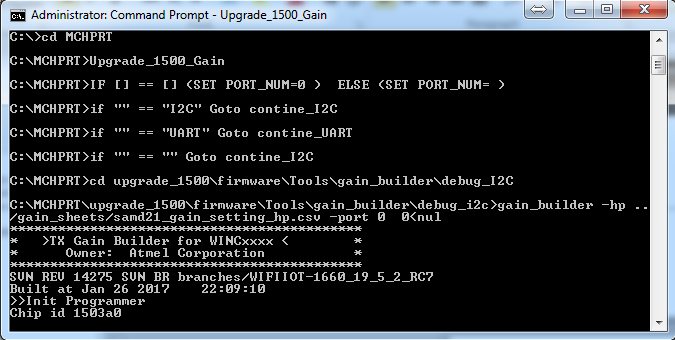

Figure 3-51. Console Log of Firmware Upgrade (Gain table)
