3.6.1.1 Full

The following table provides the command syntax for firmware upgrade.

Table 3-42. Firmware Upgrade: Before Initialization
Command SyntaxUpgrade_1500/ Upgrade_3400
XX refers to Antenna
  • Upgrade_1500 - ATWINC1500 FW upgrade
  • Upgrade_3400 - ATWINC3400 FW upgrade
ExampleUpgarde_1500

ATWINC1500 FW upgrade starts and when completes it shows “PASS”

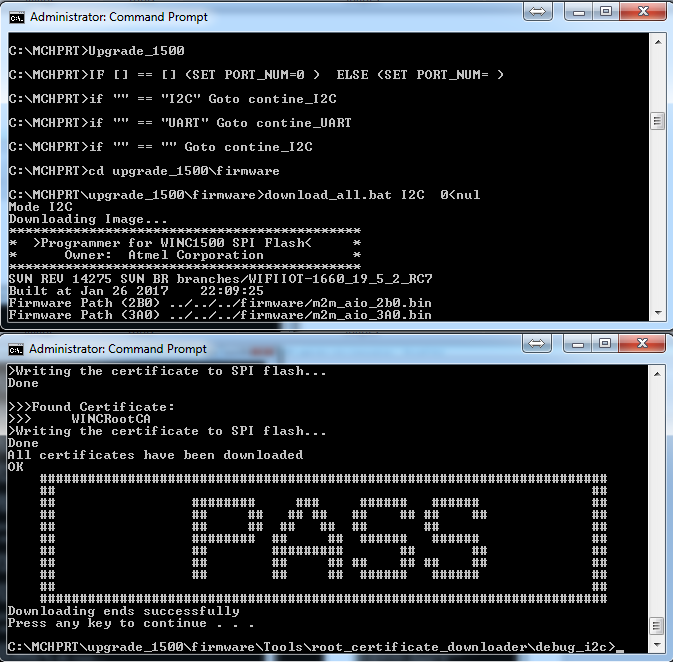

The following figure shows the example of firmware upgrade.

Figure 3-50. Console Log of Firmware Upgrade
