2.4.2 Execution Flow

Secure Firmware Execution Flow

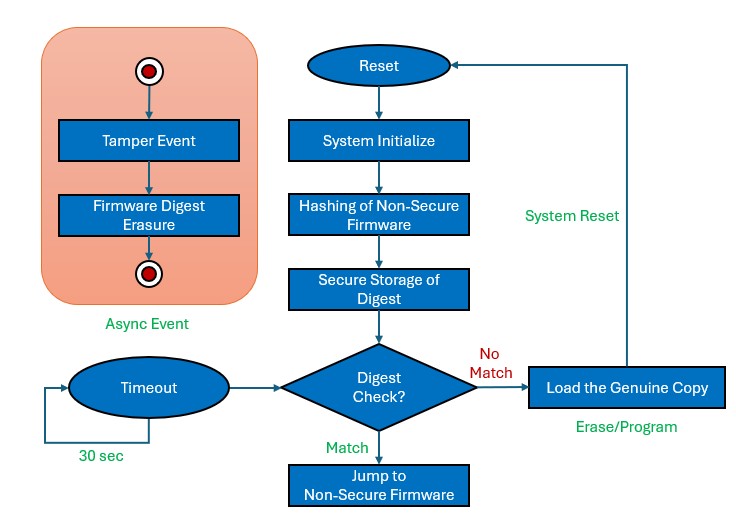

The following figure illustrates the system-level execution flow of Secure firmware in the Software Attack Protection application.

The Secure application executes in the following sequence:

1. After a system reset, the application initiates the Non-Secure firmware hashing process to generate a firmware digest.
2. The calculated digest is stored in the data Flash memory within the Secure region.
3. The firmware digest of the Non-Secure application is verified against the genuine copy in the Secure Flash memory.
4. Upon successful verification, the execution is jumped to the Non-Secure application.
5. If verification fails, the Non-Secure application is erased, and the genuine copy is loaded into the Non-Secure Flash region.
6. Every 30 seconds, the firmware digest is regenerated and cross-verified with the genuine copy to ensure authenticity.

Non-Secure Firmware Execution Flow

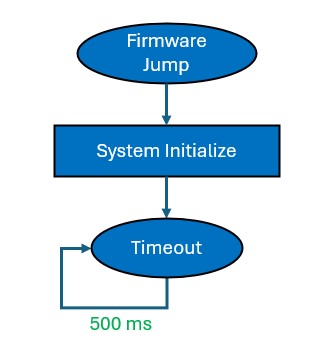

The following figure illustrates the system-level execution flow of Non-Secure firmware in the Software Attack Protection application.

The Non-Secure application executes in the following sequence:

1. After a firmware jump from the Secure application, the Non-Secure firmware initializes the Non-Secure peripherals.
2. Toggles the LED1 for every 500 millisecond on the PIC32CM LS00 Curiosity Nano+ Touch Evaluation Kit.

Software Attack Simulation Execution Flow

The simulation of a software attack is conducted in the following sequence:

1. Pressing the SW1 button on the PIC32CM LS00 Curiosity Nano+ Touch Evaluation Kit simulates a software attack by triggering a tamper event.
2. Following the tamper event, the RTC initiates the data Flash content erasure process.
3. Within the RTC tamper handler, a message indicating the initiation of the software attack is sent to the serial console.

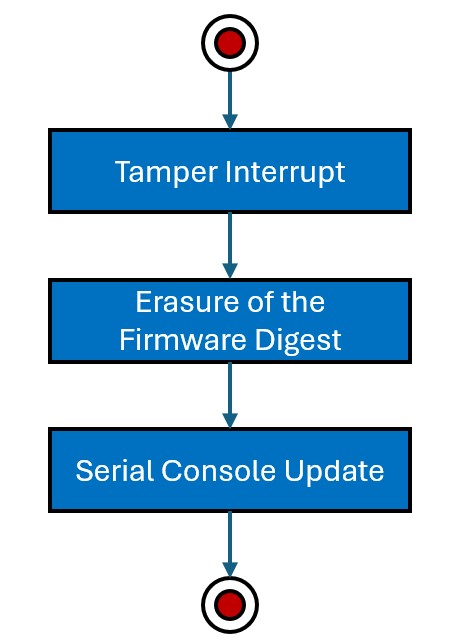

The following figure illustrates the system-level execution flow of Software Attack in the Secure firmware.
